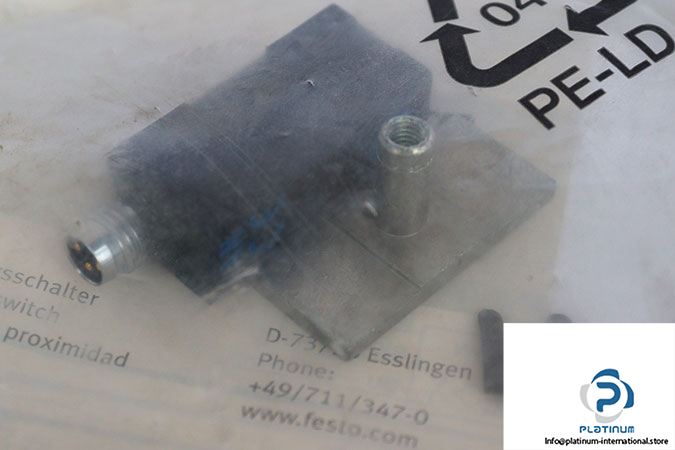

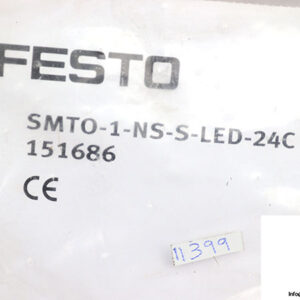

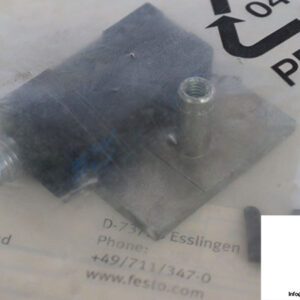

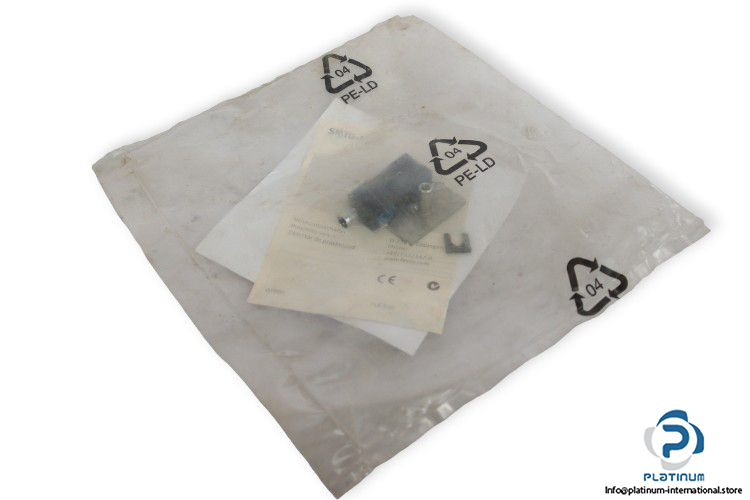

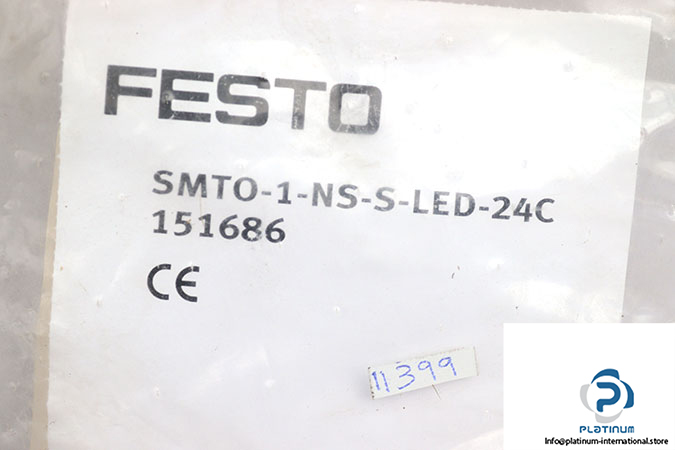

Manufacture: Festo
Type: Proximity Sensor
Model: SMTO1NSSLED24C
Part No.: 151686
Measuring principle: Magnetic inductive
Operating Voltage: 10 … 30 V DC
Max. output current: 200 mA
Contact rating max.: 6 W
Switch output: NPN
Switching element function: Normally open contact
Connector type: Plug,M8 Connector, 3-pin
Operating status display: Yellow LED
Enclosure rating: IP67
Ambient Operating temperature: -25 … 70°C
Dimensions: 16 x 14 x 34 mm
Contact material: Brass, gold-plated
Material housing: PC, PET, POM, Steel, PUR, Zinc die-casting
