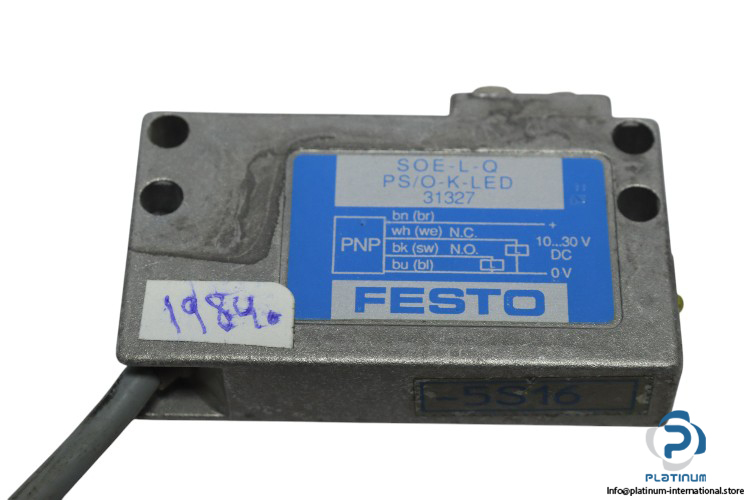

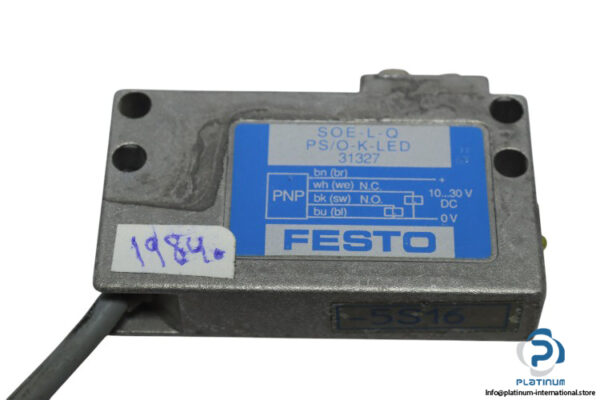

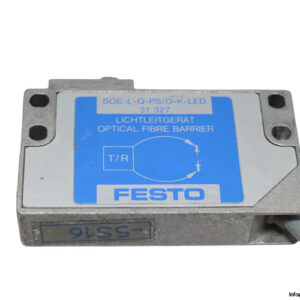

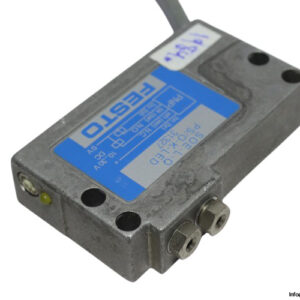

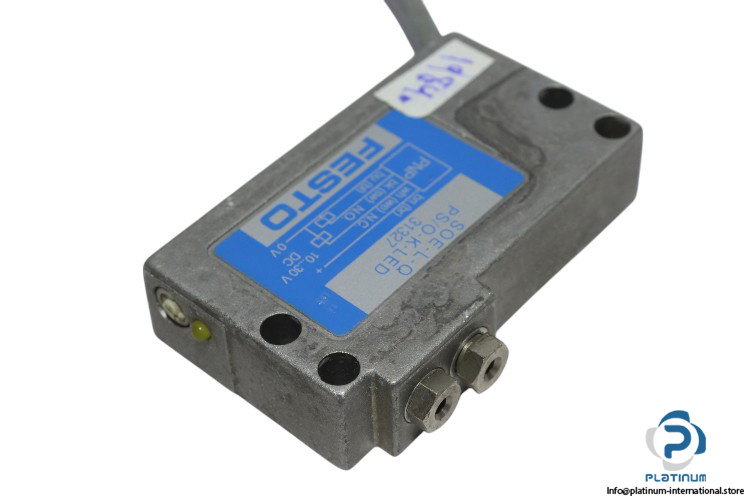

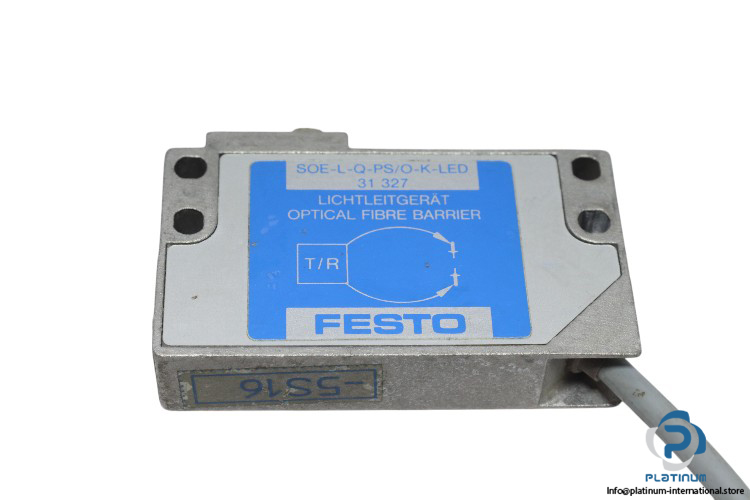

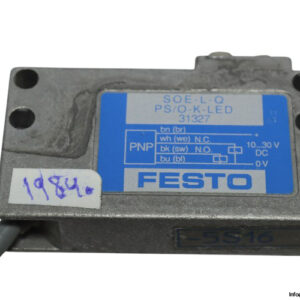

Fiber Optic Cable SOE-L-Q PS/O-K-LED

The SOE-L-Q PS/O-K-LED Fiber Optic Cable is designed for high-performance applications, providing precise switching capabilities with a switching voltage range of 10 to 30 V DC. Ideal for use in industrial settings, it ensures reliable operation with a maximum switching frequency of 250 Hz and a robust protection rating of IP 65. The cable includes a 4-wire configuration with a 2.5 m length, providing flexibility for installation in various environments.

Type: Fiber Optic Cable

Model: SOE-L-Q PS/O-K-LED

Part Number: 31327

Technical Information:

• Switching Voltage: 10 to 30 V DC
• Switching Current (max.): 200 mA
• Power: 6 W
• Electrical Design: PNP

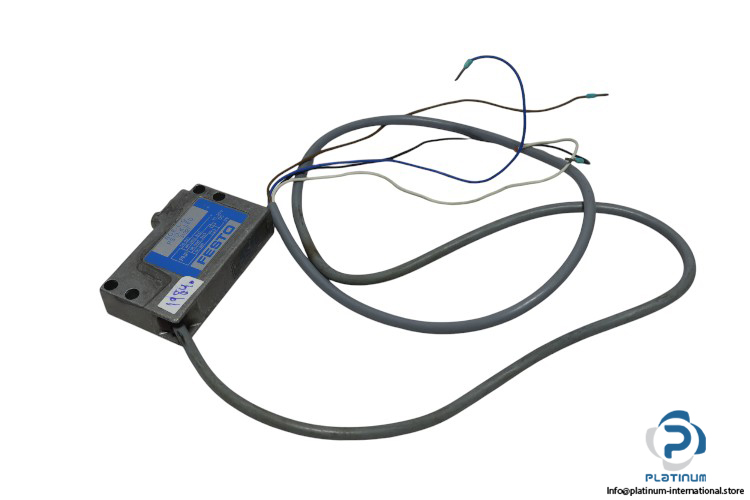

• Connection: 4-wire cable, 2.5 m
• Switching Frequency (max.): 250 Hz
• Degree of Protection: IP 65
• Temperature Range: 0 to 60 °C
• Housing Materials: Die-cast Al

This fiber optic cable is built for demanding environments, offering both durability and high performance in applications requiring precise switching and reliable protection.
