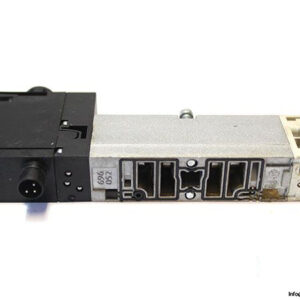

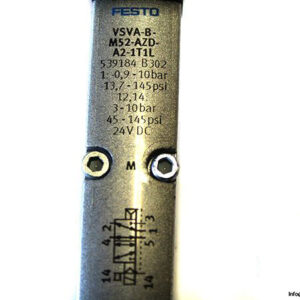

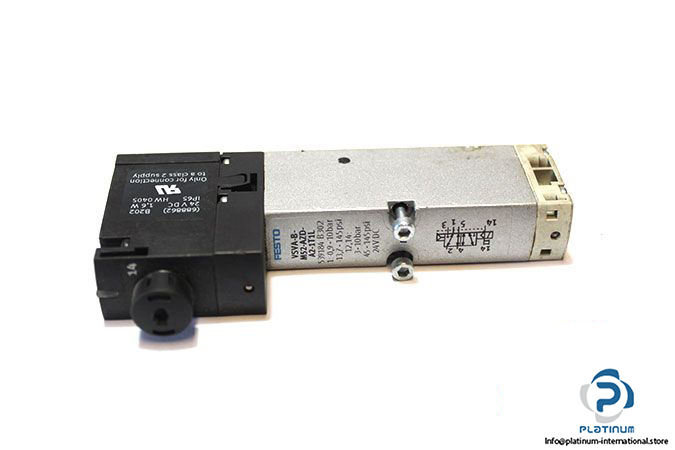

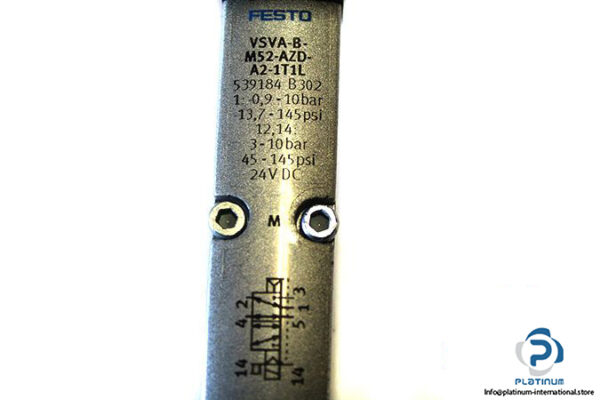

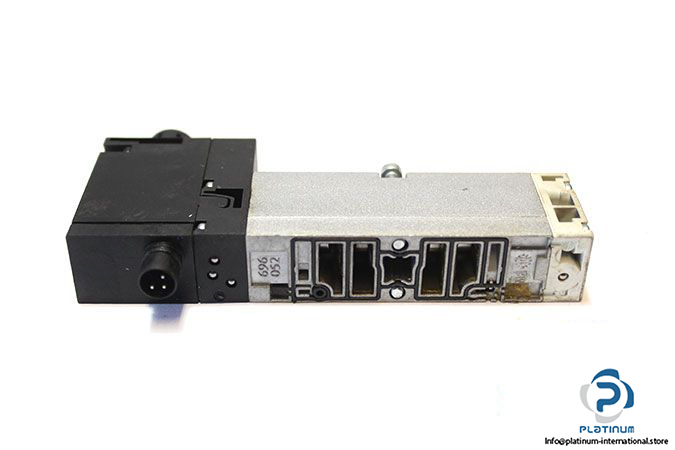

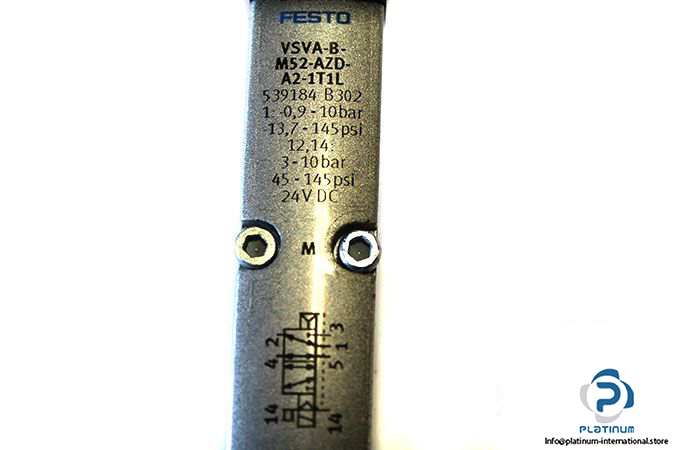

FESTO VSVA-B-M52-AZD-A2-1T1L AIR SOLENOID VALVE WITH COIL

The FESTO VSVA-B-M52-AZD-A2-1T1L is a high-performance 5/2-way monostable air solenoid valve designed for precision and durability in demanding pneumatic systems. It features an electrically actuated piston gate valve design and comes with a robust FESTO 688862 solenoid coil for reliable operation.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VSVA-B-M52-AZD-A2-1T1L
Part No.: 539184

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2-way, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 10 bar
• Nominal Flow Rate: 550 l/min
• Pneumatic Connection: Sub-base
• Material: Die-cast aluminum / PA
• Ambient Temperature: -5 / 50 °C

Attachment: FESTO 688862 Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Model: 688862

Solenoid Coil Specifications

• Supply Voltage: 24 V DC
• Power Consumption: 1.6 W
• Protection Class: IP65
