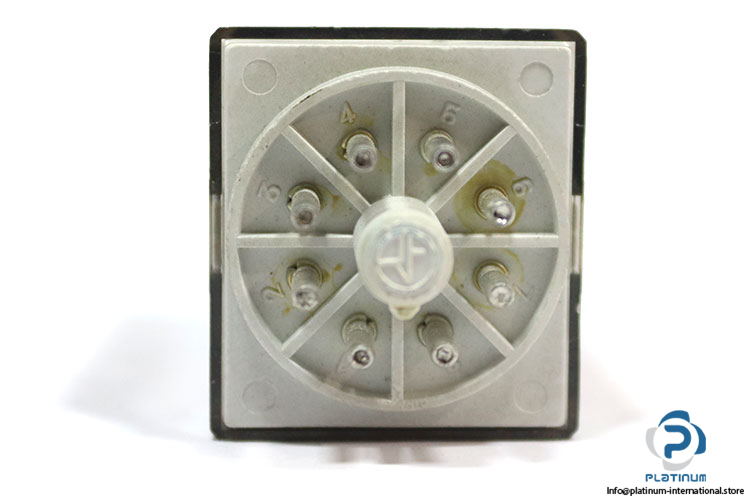

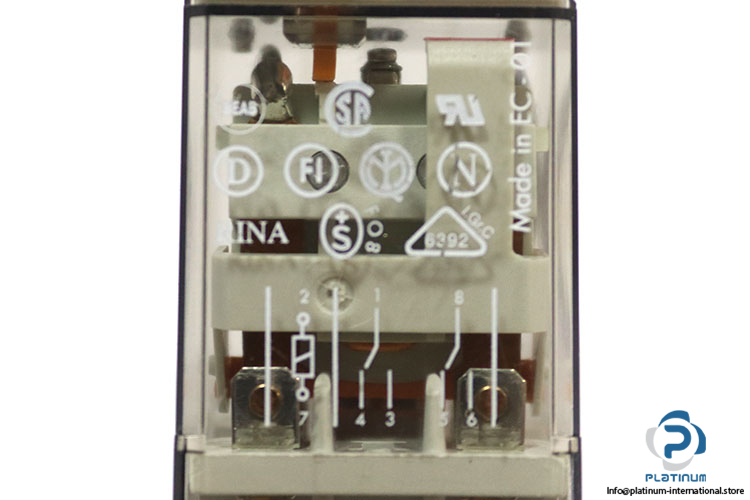

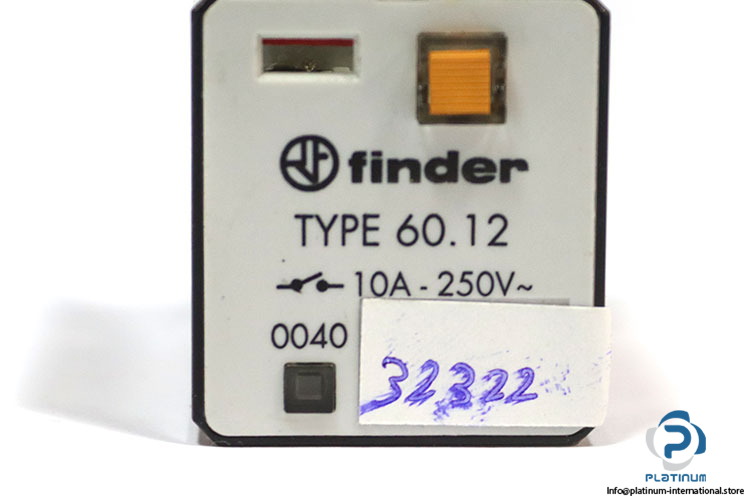

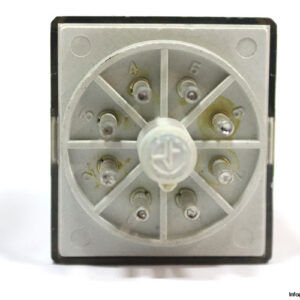

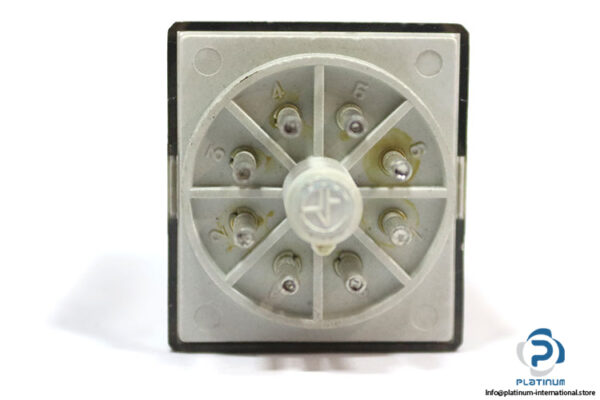

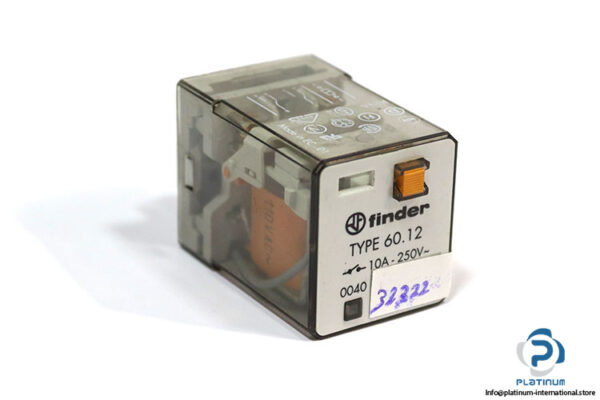

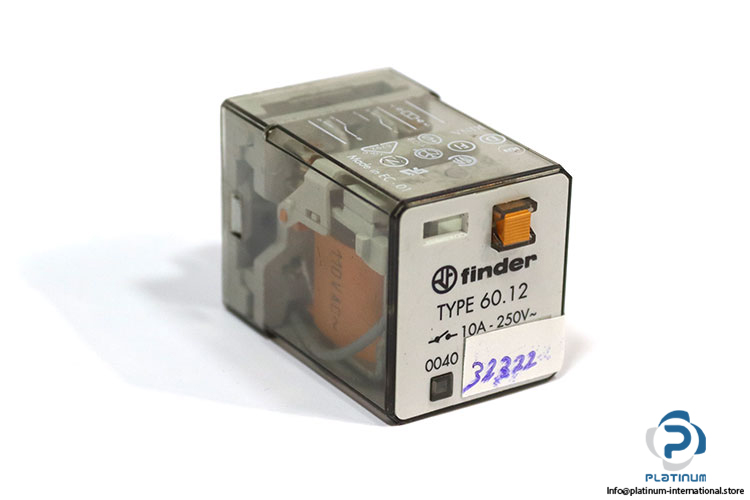

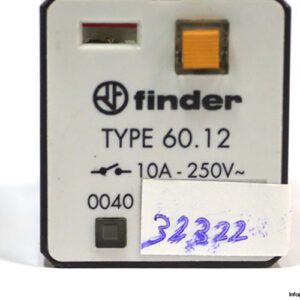

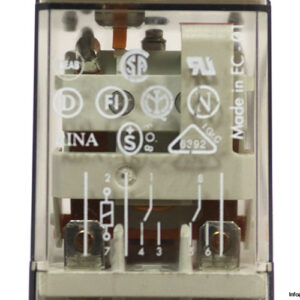

Finder 60.12 Power Relay

A versatile and high-performance power relay designed for industrial control, automation systems, and electrical switching applications. Built for reliability, stable operation, and long service life, the Finder 60 Series delivers excellent performance under demanding conditions. Manufacturer: FINDER
Type: Power Relay
Model: 60.12
Series: 60
Code: M 1173

Technical Information

• No. of Poles: 2 Pole
• Coil Voltage: 110 VAC
• Rated Switching Current Max.: 10 A
• Contact Configuration: 2 CO (DPDT)
• Rated Current / Max. Peak Current: 10 A / 20 A
• Rated Voltage / Max. Switching Voltage: 250 V AC / 400 V AC
• Rated Load AC1: 2500 VA
• Rated Load AC15 (230 V AC): 500 VA
• Single Phase Motor Rating (230 V AC): 0.37 kW
• Breaking Capacity DC1 (24/110/220 V): 10 / 0.4 / 0.15 A
• Minimum Switching Load: 500 mW (10 V / 5 mA)
• Contact Material: AgNi
• Ambient Temperature Range: “40 / +70 °C
• Environmental Protection: RT I

Relay bases and sockets for various relay types are available. For compatible options, please contact us directly or visit our website.
