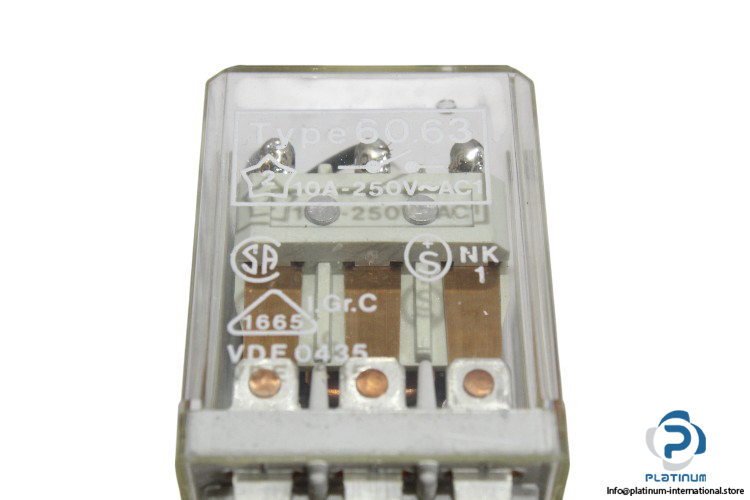

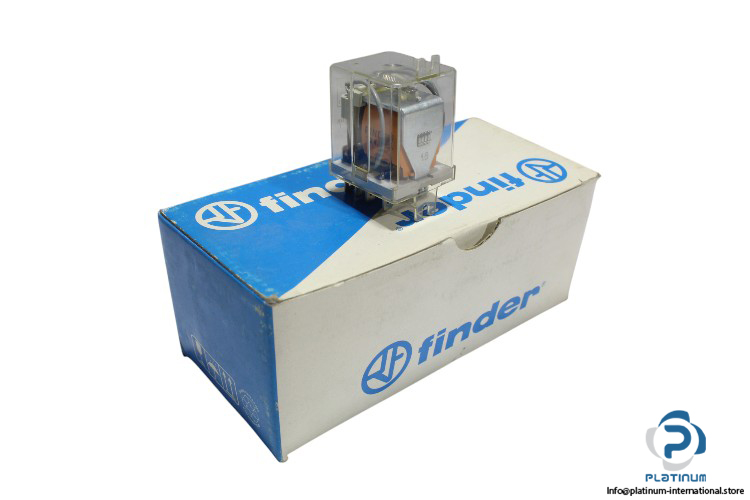

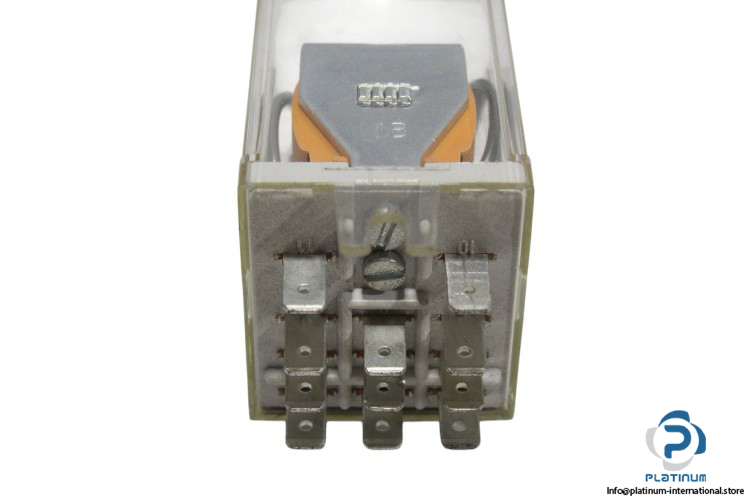

Finder 60.63 “ General Purpose Relay
The Finder 60.63 general purpose relay is a highly reliable component designed to provide efficient switching in a variety of electrical systems. It offers a cadmium-free construction with robust contact ratings and is ideal for applications requiring long-lasting performance and high temperature stability.
- Manufacturer: Finder
- Type: General Purpose Relay
- Model: 60.63

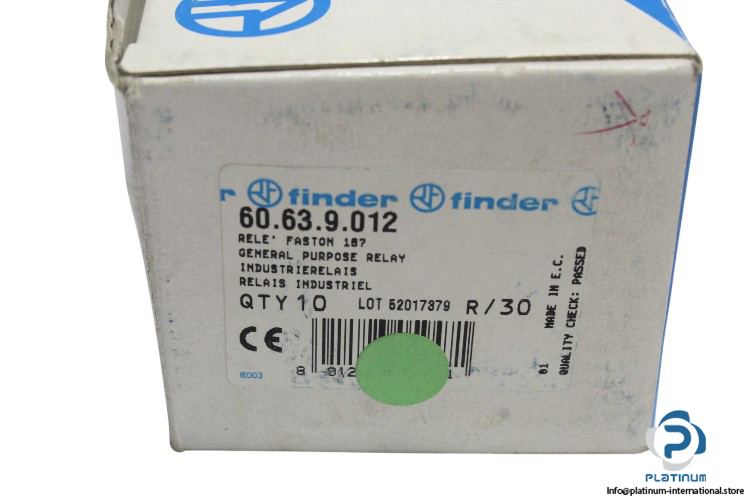

- Part No: 60.63.9.012
- Ref. No: 52017379 R/30
Technical Information:

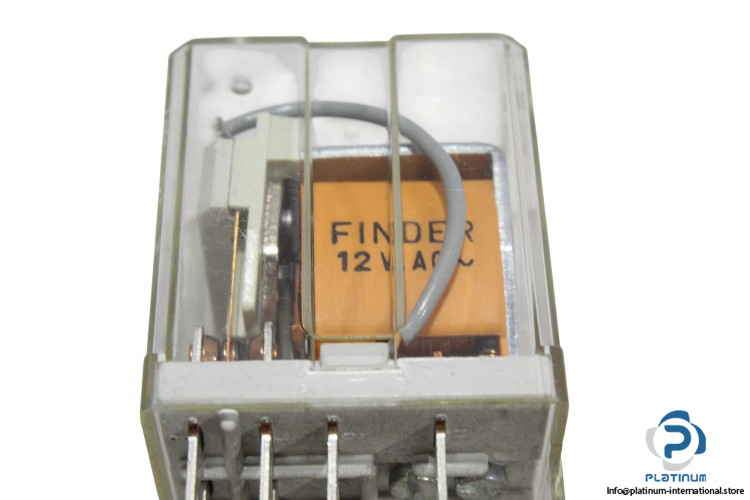

- Coil Voltage: 12 V AC
- Coil Power Consumption: 1.3 W
- No. of Poles: 3
- Contact Rating: 250 V AC, 10 A
- Contacts Configuration: Changeover contact
- Contact Material: Cadmium-free
- Operating Temperature: -40 to +70°C
- Dimensions: 36.5 x 32.2 x 56 mm
- Connection: 187 Faston
- Standard: VDE 0435
