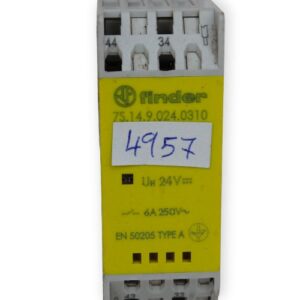

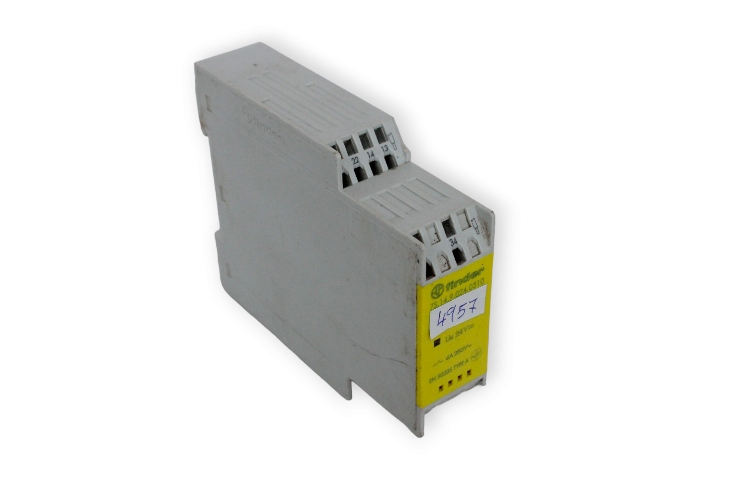

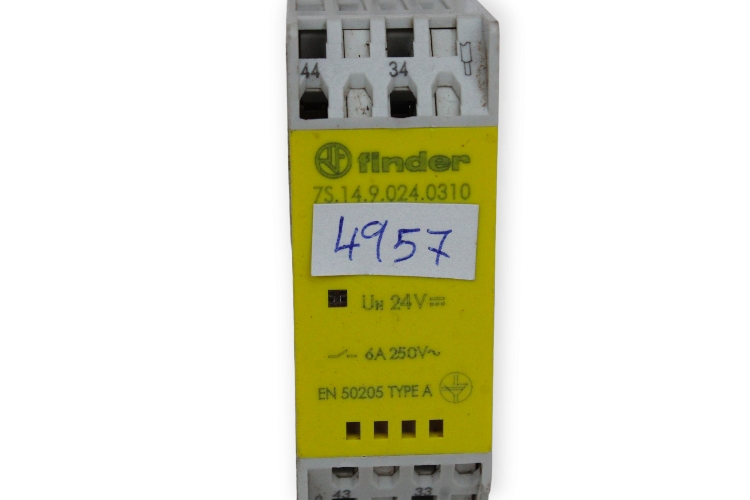

Manufacture: Finder
Type: Safety Relay
Model: 7S.14.9.024.0310
Series: 7S

Application: railway application
Supply voltage: 24 V DC

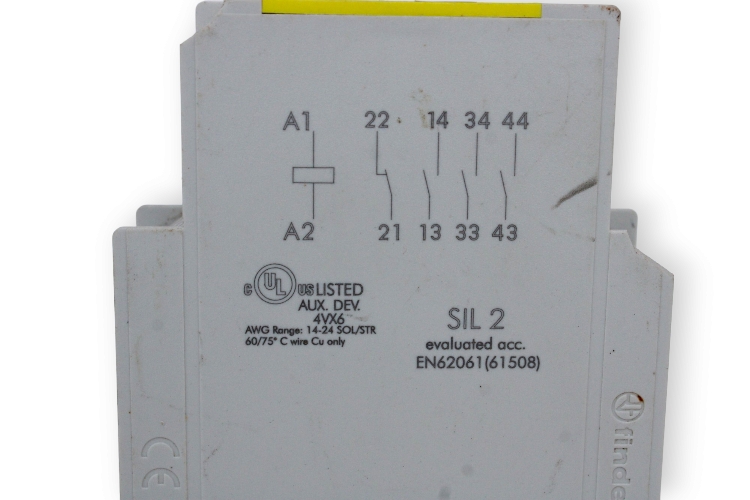

Output: 3 NO,1 NC contact (250 V AC,6 A)
Mounting: for DIN rail mounting
Electrical connection: spring-loaded terminals
Start-up current: 12 A
Switching capacity: 1.5 kVA
Pollution degree: 2
IP rating: IP20
Operating temperature: -40 … 70°C
Dimensions: 22.5 x 86.2 x 100.3 mm
