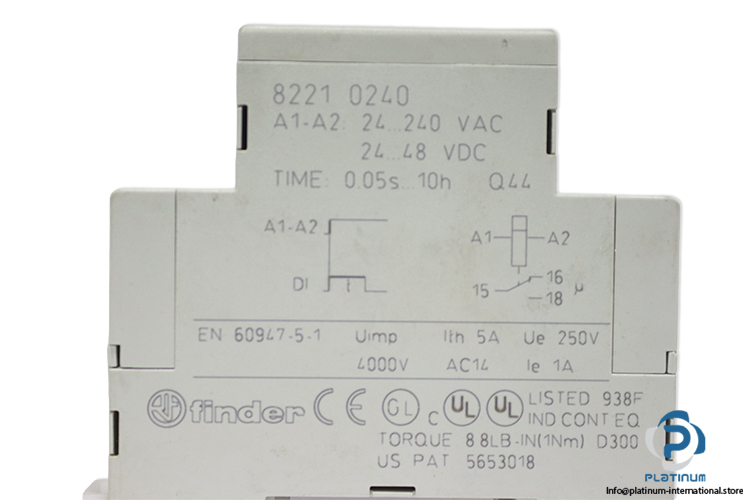

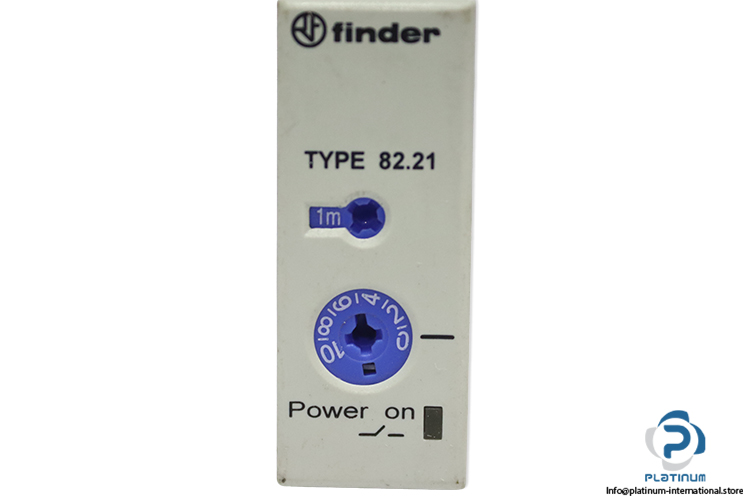

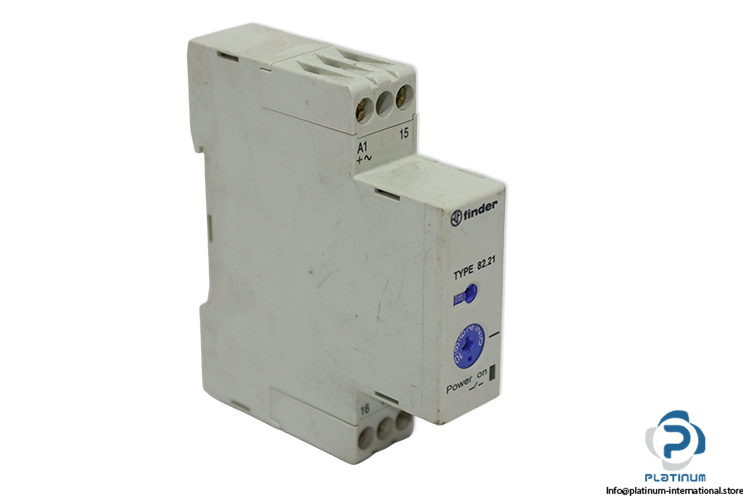

Finder 82.21 Modular Timer
A versatile and reliable modular timer designed for precise time control in automation panels, industrial systems, and electrical installations. The Finder 82.21 provides wide timing flexibility, strong switching performance, and durable relay contact construction suitable for professional applications. Manufacturer: FINDER
Type: Modular Timer
Model: 82.21
Part No.: 82.21.0.240
Series: 82
Technical Information
- Specified Time Range: 0.05 s to 10 h
- Contact Configuration: 1 CO
- Rated Current / Max Peak Current: 5 / 20 A
- Rated Voltage / Max Switching Voltage: 250 / 400 V AC
- Rated Load in AC1: 1,250 VA
- Rated Load in AC15 (230 VAC): 250 VA
- Single-Phase Motor Rating (230 VAC): 0.12 kW
- Breaking Capacity in DC1: 5 / 0.3 / 0.12 A
- Minimum Switching Load: 300 (10/5) mW (V/mA)
- Contact Material: AgCdO
- Nominal Voltage AC (50/60 Hz): 24 / 240 V AC
- Nominal Voltage DC: 24 / 48 V DC
- Rated Power AC/DC (50 Hz) / W: 5 / 0.5
- Ambient Temperature Range: “20 / +50 °C
- Protection Category: IP20
