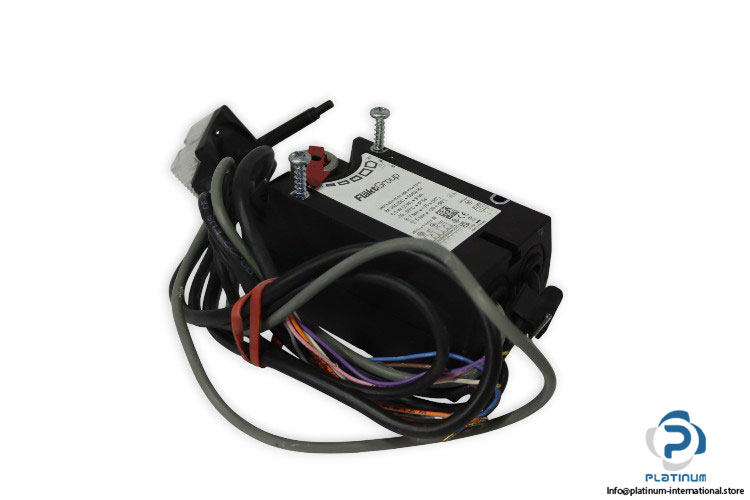

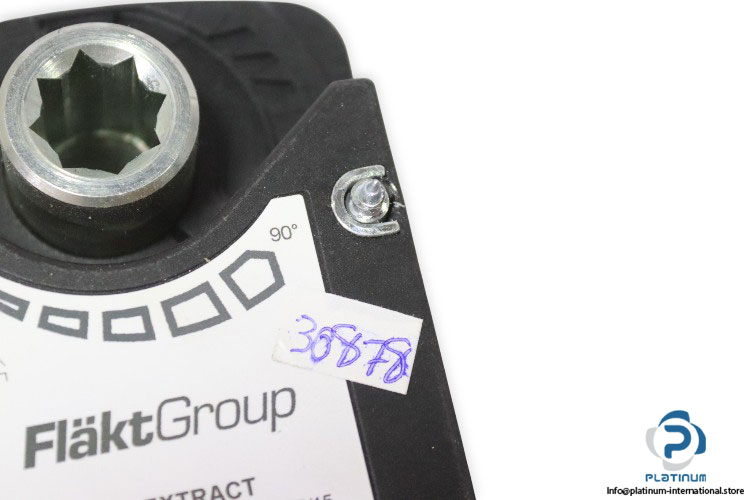

FLAKTGROUP Group 340TA-024-05-S2-006.08.23/15 Fire Damper Actuator
The Flakt Group 340TA-024-05-S2-006.08.23/15 Fire Damper Actuator is an advanced control device designed to regulate and secure fire dampers in ventilation and safety systems. It delivers precise motion, reliable performance, and robust protection even under challenging temperature and environmental conditions.
Manufacturer: Flakt Group
Type: Fire Damper Actuator
Model: 340TA-024-05-S2-006.08.23/15

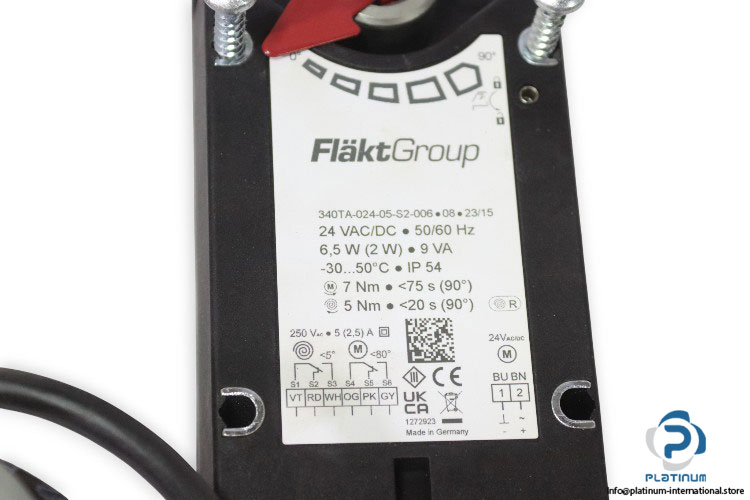

Technical Information
- Rated Nominal Voltage: 24 V AC / DC
- Power Consumption Motor (Motion): 6.5 W
- Power Consumption For Wire Sizing: 9 VA
- Frequency: 50 / 60 Hz
- Auxiliary Contact Switch: 2 SPDT 2 Changeover (CO)
- Switching Capacity Auxiliary Switch: 250 V AC, 5 (2.5) A
- Switching Points Auxiliary Switch: 5° / 80°
- Angle of Rotation Max.: 90°
- Protection Class: IP54
- Ambient Temperature: -30 / 55 °C
- Dimensions: 145 × 75 × 70 mm
- Temperature Monitoring Unit Dimensions:
- Probe Length: 66 mm
- Total Length: 95.6 mm
