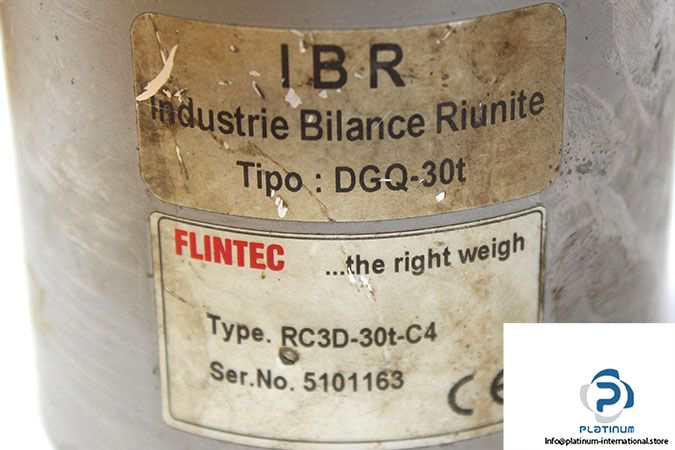

Manufacturer: FLINTEC / IBR

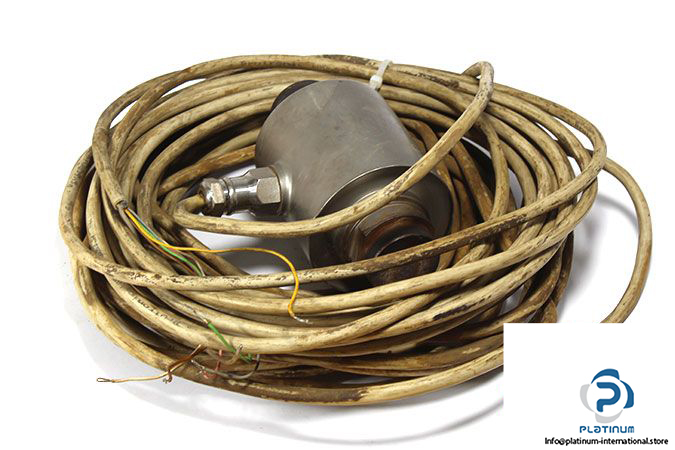

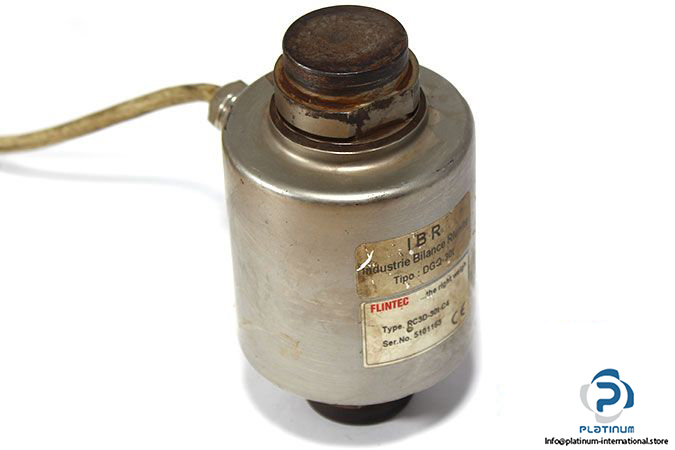

Type: Compression Load Cell

Model: RC3D-30T-C4 / DGQ-30T

Maximum weight limit (E max): 30000 kg (30t)

Excitation Voltage: 5…15 V

Input Resistance: 1,150 ± 50 Ω

Output Resistance: 1,000 ± 2 Ω

Operating Temperature: -40…80 °C

Element Material: Stainless Steel 17-4 PH (1.4548)

Class: C4

Protection Class: IP68

Weight: 2.820 kg
