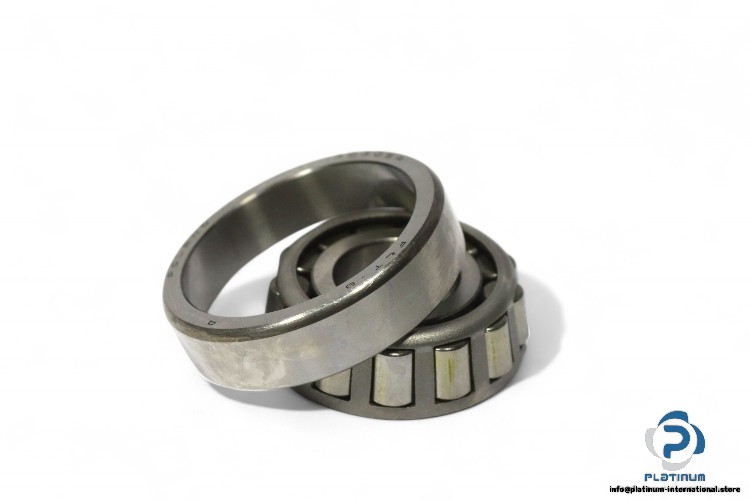

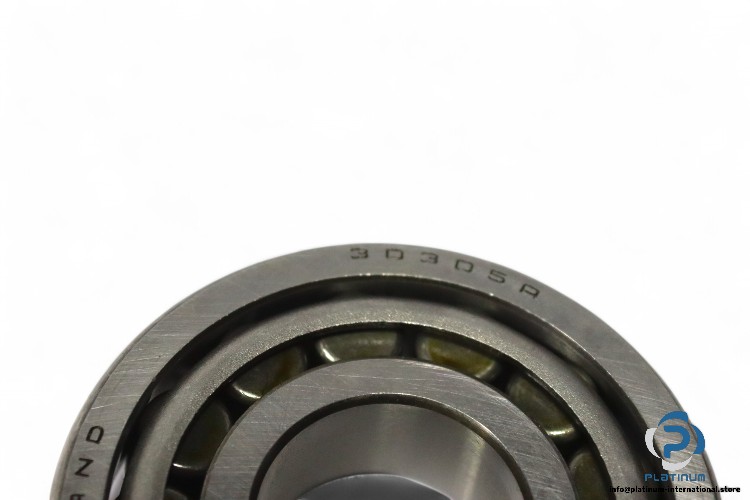

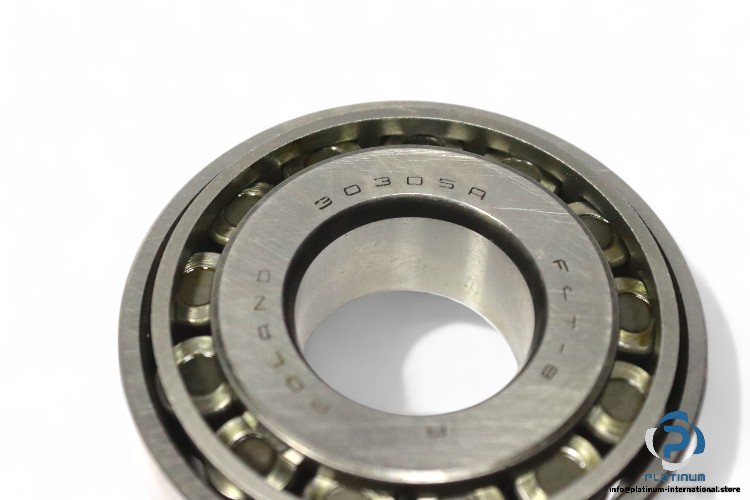

FLT 30305 A Single Row Tapered Roller Bearing

The FLT 30305 A Single Row Tapered Roller Bearing offers high performance in industrial applications, featuring high dynamic load capacity and smooth operation under both radial and axial loads.

Manufacturer: FLT

Type: SINGLE ROW TAPERED ROLLER BEARING

Model: 30305 A

Technical Information:

• Bore Diameter (d): 25 mm
• Outer Diameter (D): 62 mm
• Total Width (T): 18.25 mm
• Width of Outer Ring: 15 mm
• Width of Inner Ring: 17 mm
• Dynamic Load Rating: 44.6 kN
• Static Load Rating: 43 kN
• Limiting Speed (Oil Lubrication): 9000 1/min
• Limiting Speed (Grease Lubrication): 6700 1/min
