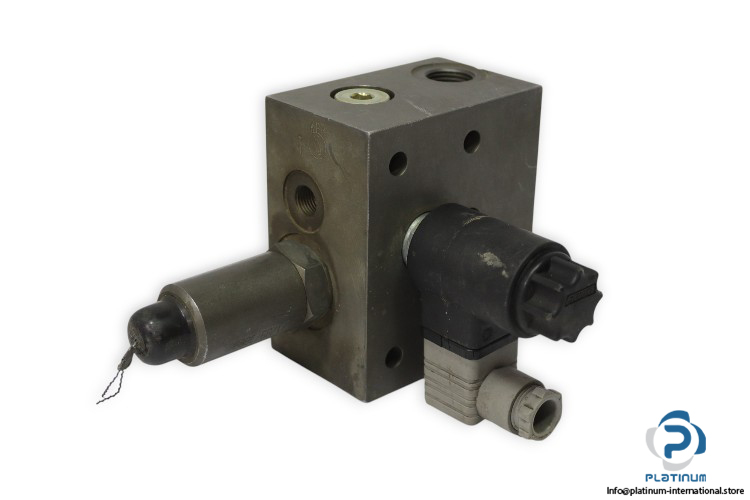

FLUTEC DSV-10-EY-4.1/1/1T160 SAFETY AND SHUT-OFF BLOCK
This 3-way safety and shut-off block by Flutec is engineered for hydraulic systems that demand reliable isolation, pressure control, and discharge safety. Featuring a solenoid/manual-operated design with de-energized discharge, this unit includes a screwed-in pressure relief valve and multiple connection sizes for flexible integration into high-pressure systems.
Manufacturer: Flutec
Type: Safety and Shut-Off Block (3-way)

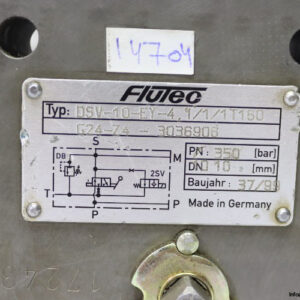

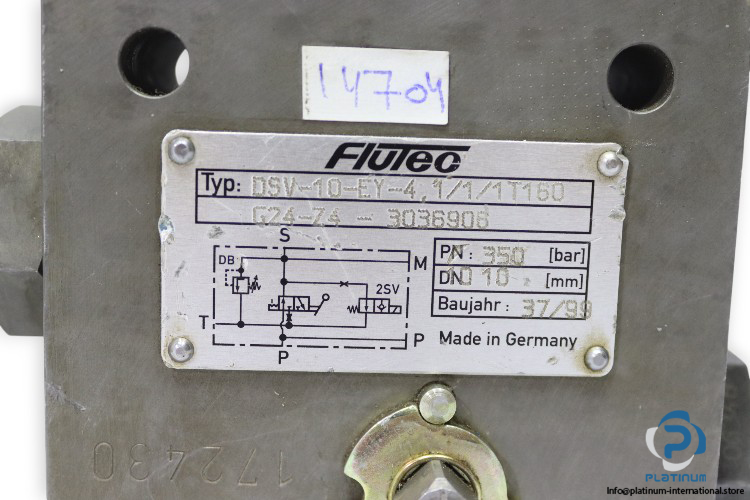

Model: DSV-10-EY-4.1/1/1T160
Part No.: G24-74 – 3036906
Technical Information
- Design: EY, manual / solenoid-operated, discharge open when de-energized
- Connections: ¼ inch, 3/8 inch, 1 inch
- Nominal Pressure: 350 bar
- Nominal Diameter: 10 mm
- Pressure Relief Valve Model: DB 12 (Included)
- Accumulator Connection: M 33 x 2
- Solenoid Voltage Type: DC
- Voltage: 24 V
- Ambient Temperature: -10 °C to +80 °C

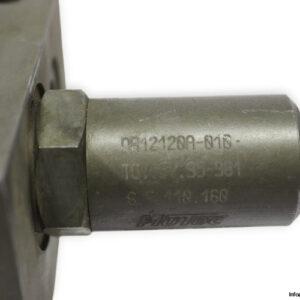

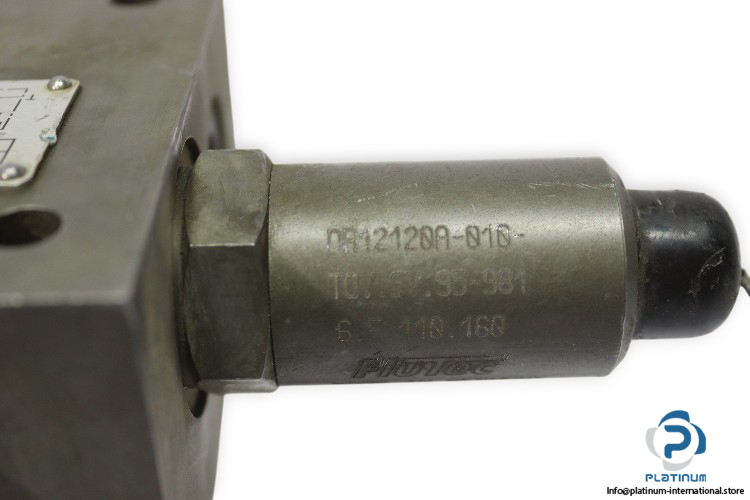

- Attachment: FLUTEC DB12120A-010-TUV-SV-95-981

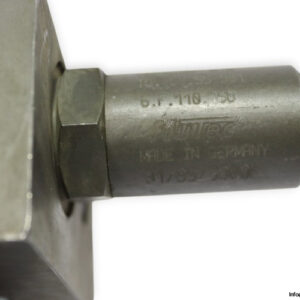

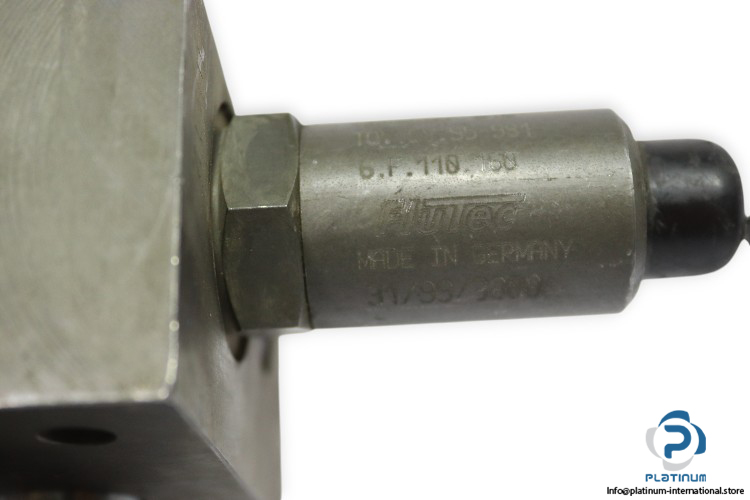

- Attachment Part No.: 6.F.110.160
- Valve Body: Steel
- Flow Rate: 110 l/min
- Cracking Pressure: 160 bar
