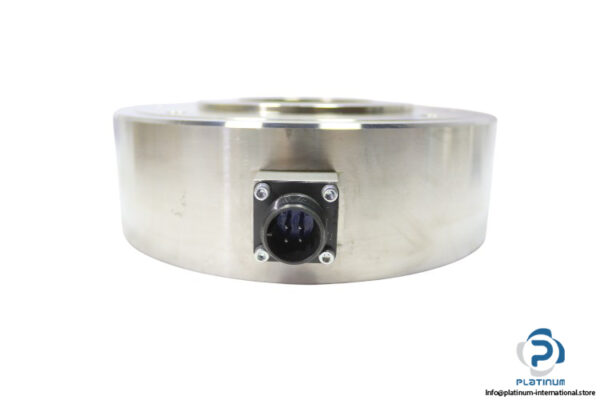

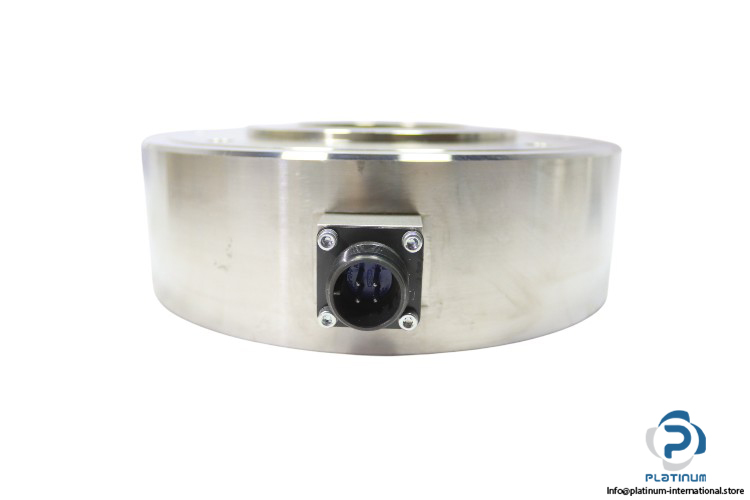

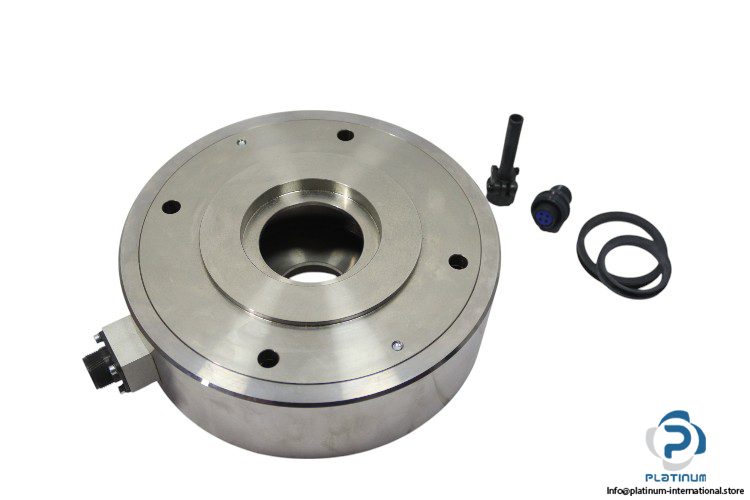

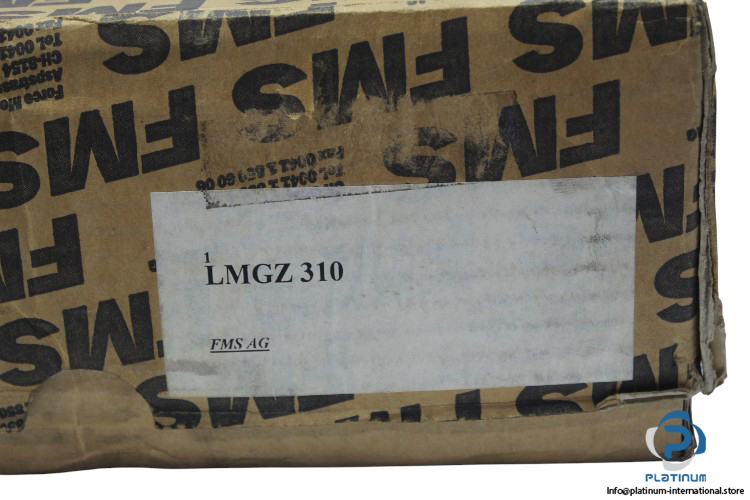

FMS LMGZ 310 Tension Control
The FMS LMGZ 310 Tension Control is a high-precision device designed for accurate measurement and control of tension in industrial applications. It features a nominal force rating of 6000 N, sensitivity of 1.8 mV/V, and robust stainless steel construction.
Manufacturer: FMS
Model: LMGZ 310
Type: Tension Control

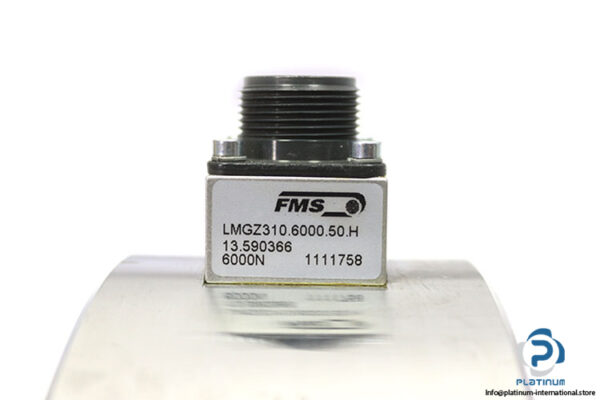

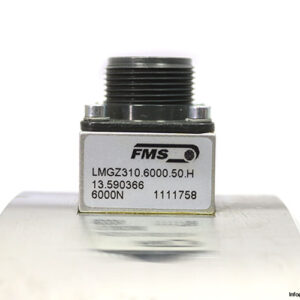

Part No.: LMGZ310.6000.50.H
Code: 13.590366 / 1111758
Technical Information:
- Size: 310
- Shaft Diameter: 50 mm
- Nominal Force Rating: 6000 N
- Option: H
- Sensitivity: 1.8 mV/V
- Deflection: 0.54 mm
- Tolerance of Sensitivity: less than 0.2 %
- Accuracy Class: 0.3 %
- Measuring Range: 100:1
- Temperature Coefficient: 0.1 %
- Temperature Range: 10 to 60 °C
- Input Resistance: 350 ohms
- Power Supply: 1 to 10 V DC
- Sensor Material: Stainless Steel
- Dimensions: 225 x 75.9 x 258 mm
- Protection Class: IP42
