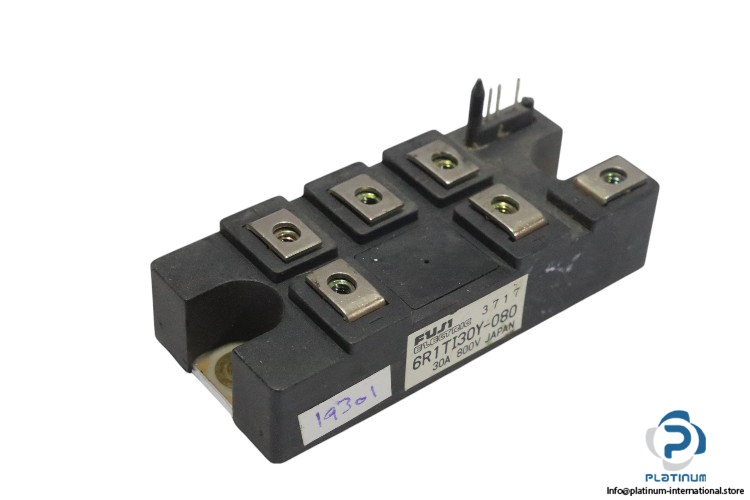

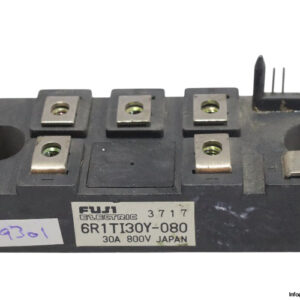

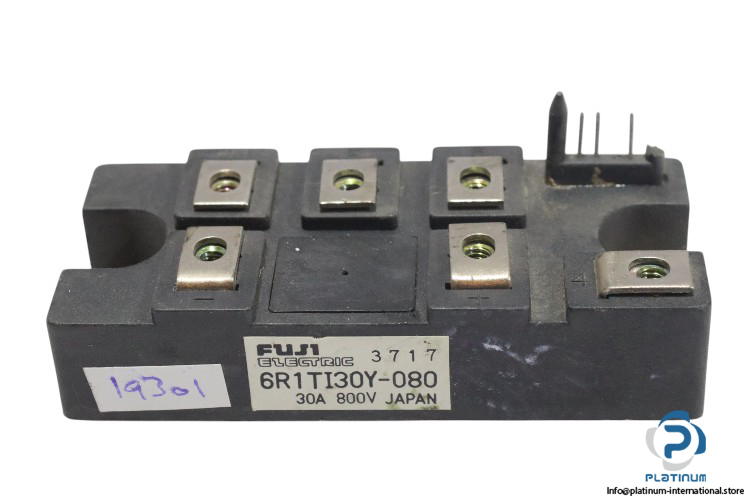

FUJI 6R1TI30Y-080 Diode and Thyristor Module
The FUJI 6R1TI30Y-080 is a robust diode and thyristor module designed for dynamic braking applications in AC motor systems. With a high rated voltage of 800V and a current capacity of 30A, it features a glass passivation chip and insulated structure for enhanced reliability and protection. Ideal for high-stress environments, it supports rapid switching and surge resistance, ensuring stable performance under demanding industrial conditions.
- Manufacturer: FUJI
- Type: Diode and Thyristor Module
- Model: 6R1TI30Y-080
Technical Specifications:
- Rated Voltage: 800V
- Rated Current: 30A
- Isolation Voltage: 2000 V
- Frequency: 50/60 Hz
- Screw Torque – Mounting: 3.0 N·m
- Screw Torque – Terminals: 1.7 N·m
- Operating Temperature: -40 to 125 °C
Features:
- Glass Passivation Chip
- Easy Connection
- Insulated Type
- Large di/dt
- Large dv/dt
Applications:
- Dynamic Braking of AC Motors
