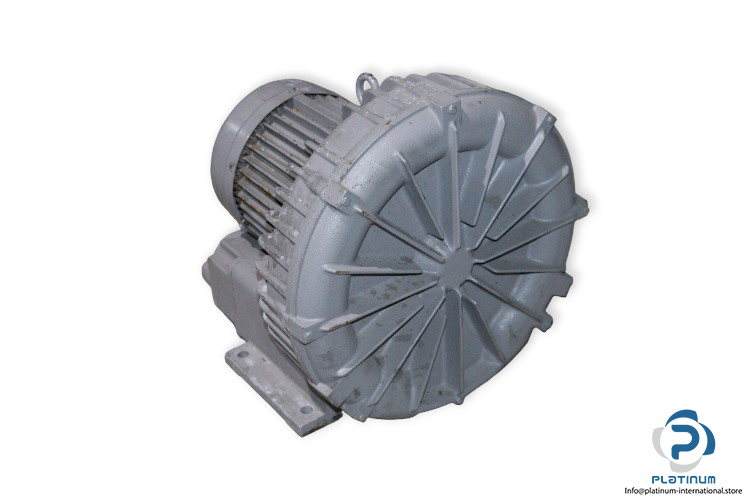

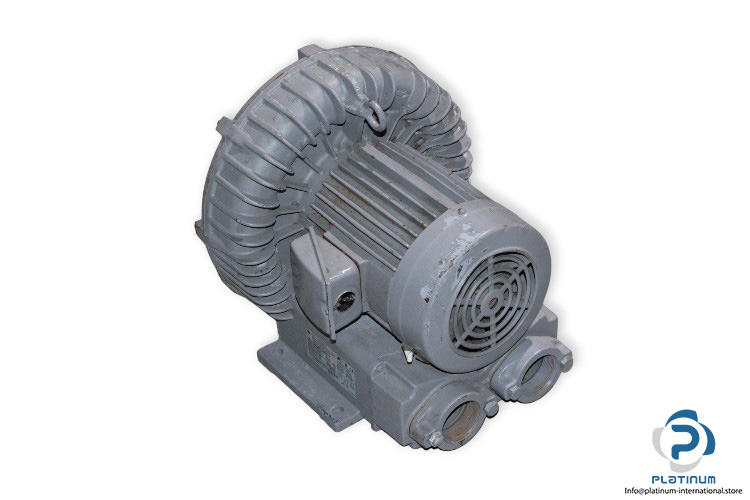

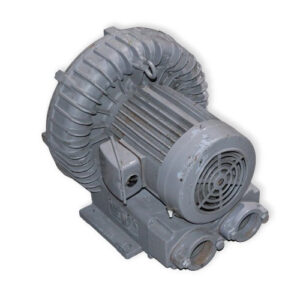

FUJI ELECTRIC VFC600A-7W RING COMPRESSOR

Designed for industrial-grade air movement and vacuum generation, the Fuji Electric VFC600A-7W ring compressor offers high flow rate, efficient performance, and reliable pressure capacity. Its single-channel design and 2-pole configuration make it ideal for demanding continuous-duty applications.

Manufacturer: Fuji Electric
Type: Ring Compressor
Model: VFC600A-7W
Serial No.: C6A613D12102Y099
Channel Design: Single
Poles: 2

Technical Information

• Rated Pressure [mbar]: 118 / 118
• Supply Voltage [V]: 200 to 230 / 460
• Horsepower [Hp]: 4.2 to 4.5 / 4.5
• Max. Current [A]: 12 to 11 / 5.5
• Frequency [Hz]: 50 / 60
• Max. Flow Rate [m³/min]: 206 / 206
