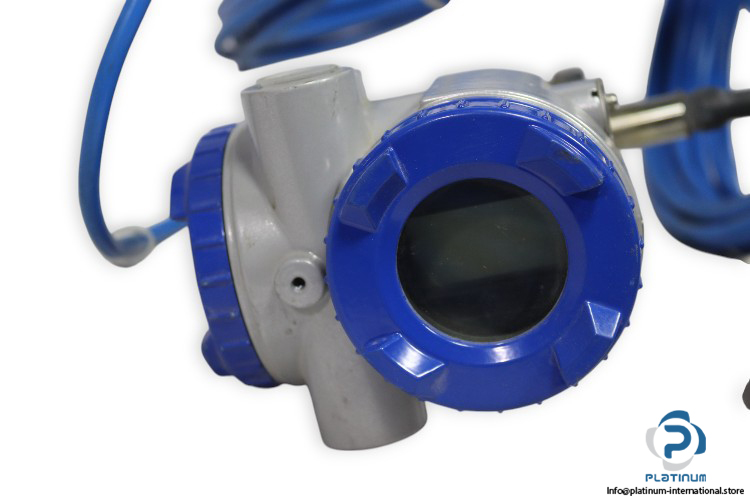

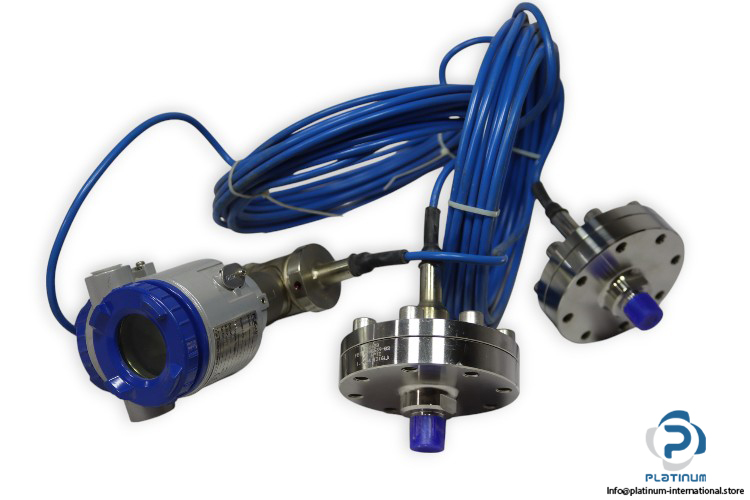

FUJI FCX-AII FKDT46VFLKC2Y TRANSMITTER

This FCX-AII transmitter is a high-precision industrial differential pressure transmitter designed for use in hazardous environments. Featuring ATEX-certified explosion protection, silicone oil-filled stainless steel pressure module, and dual remote seal flange, it is built for accuracy, durability, and safety in demanding process automation systems.

Manufacturer: FUJI
Type: Transmitter
Series: FCX-AII

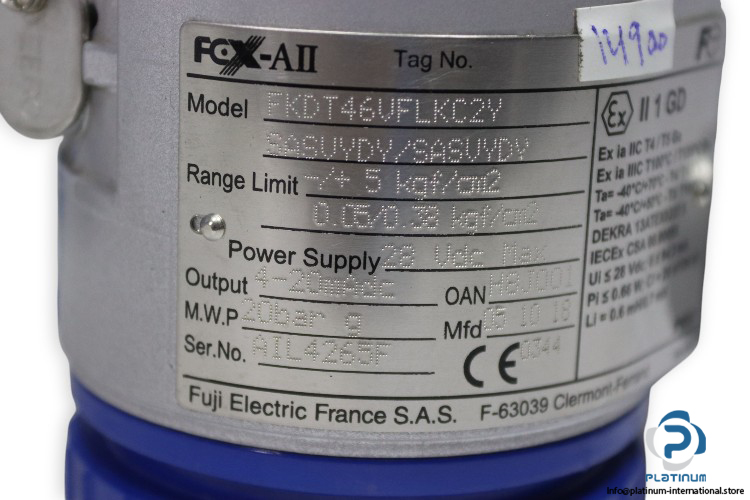

Model: FKDT46VFLKC2Y, SASVYDY/ SASVYDY
Serial No.: AIL4265F
OAN: H8J001
Code: 0344/ 338J088

Technical Information

• Connection: ½ inch
• Range Limit: -/+ 5, 0.05/0.38 Kgf/cm²
• Voltage: 28 V DC Max.
• Output: 4 to 20 mA DC
• Max Working Pressure: 20 bar
• Ingress Protection: IP66/67

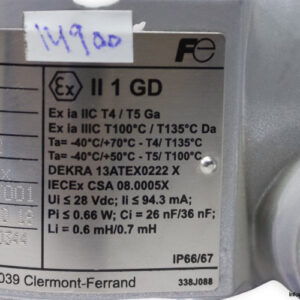

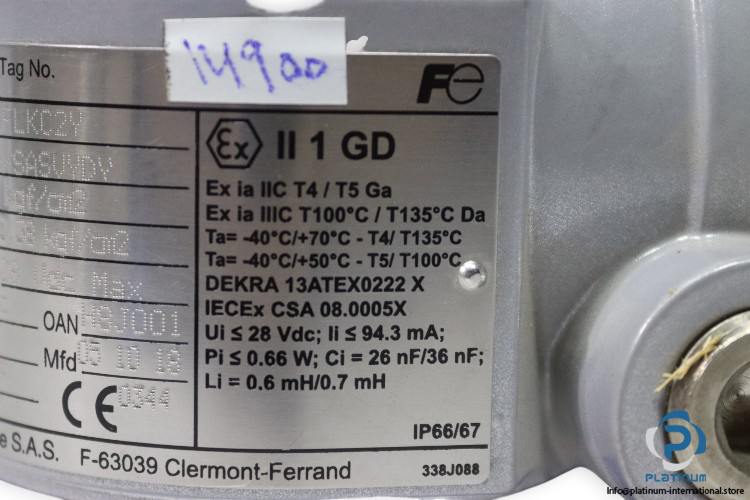

Certification

• ATEX Marking: Ex II 1 GD
• Gas Zone: Ex ia IIC T4/T5 Ga
• Dust Zone: Ex ia IIIC T100°C/T135°C Da
• Temperature Ranges: Ta = -40°C to +70°C (T4) / -40°C to +50°C (T5)
• DEKRA Certificate: 13ATEX0222 X

Electrical Ratings

• Voltage: 28 VDC
• Current: ‰¤ 94.3 mA
• Power: ‰¤ 0.66 W
• Internal Capacitance: 26 nF / 36 nF
• Internal Inductance: 0.6 mH / 0.7 mH

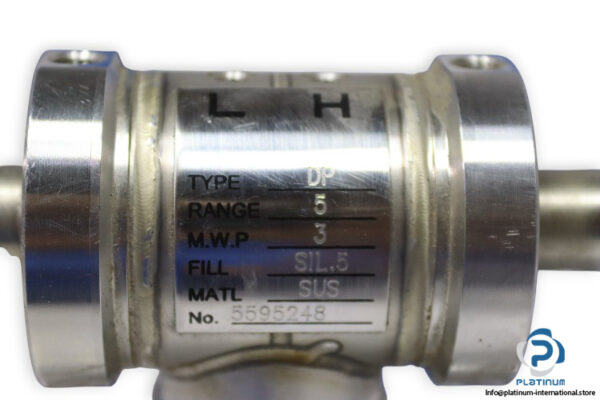

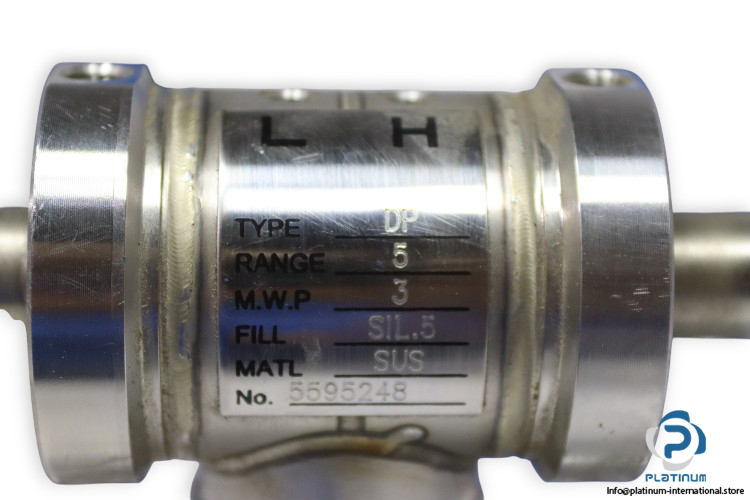

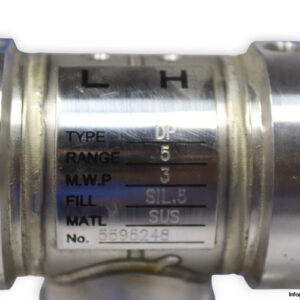

Attached Module

• Pressure Module: 5595248
• Type: DP (Differential Pressure)
• Range: 5
• Max Working Pressure: 3 bar
• Fill Fluid: SIL.5, Silicone Oil type 5
• Material: SUS
• Ports: Marked L (Low) and H (High)

Dual Remote Seal Flange

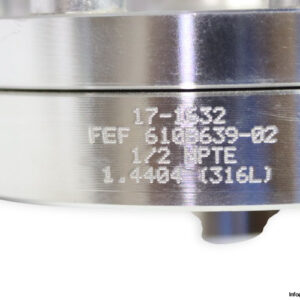

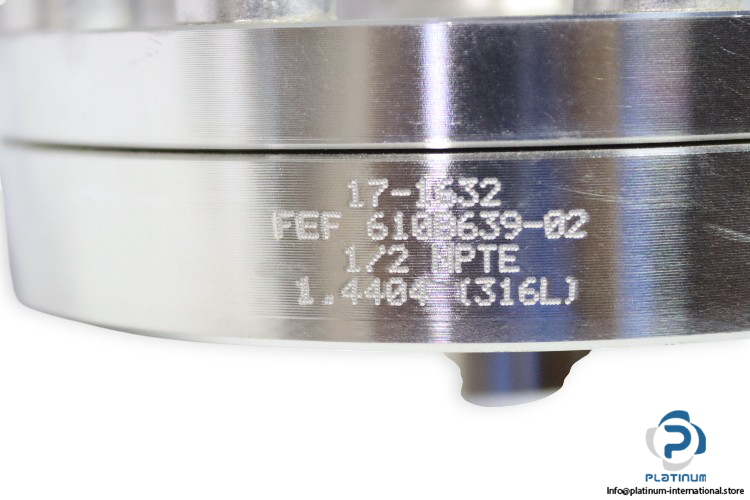

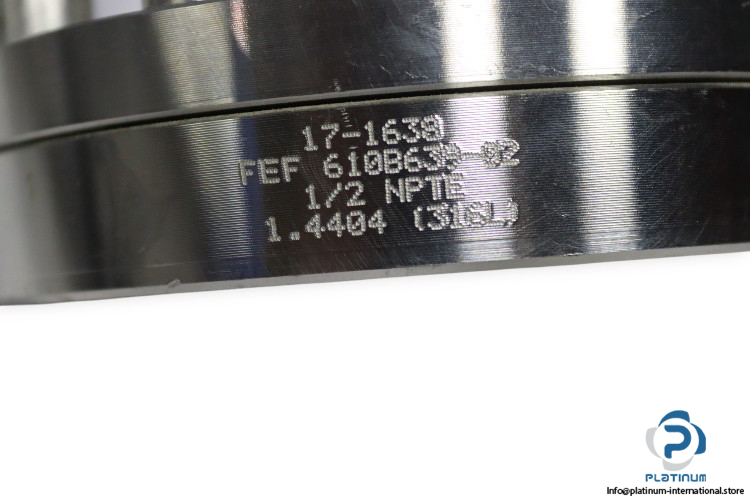

• 1- 17-1638 (FEF 610B639-02): Size ½ NPTE, 1.4404 (316L)

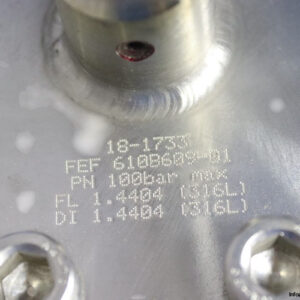

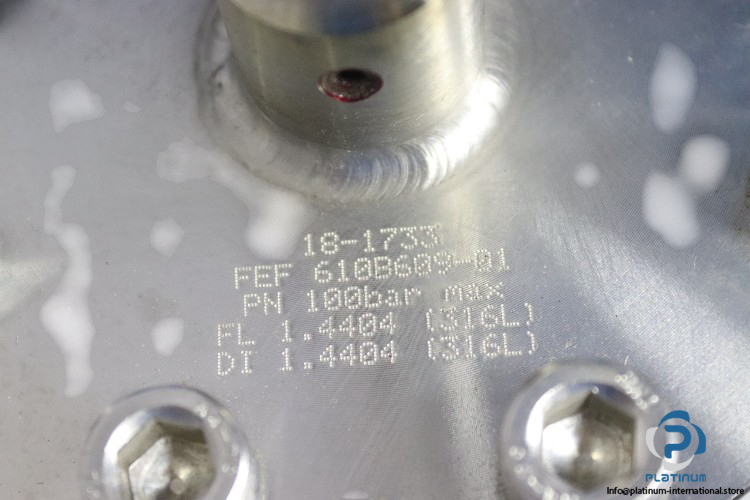

• 2- 18-1733 (FEF 610B609-01): PN 100 bar max, FL 1.4404 (316L), DI 1.4404 (316L)
• 3- Capillary Tubing
