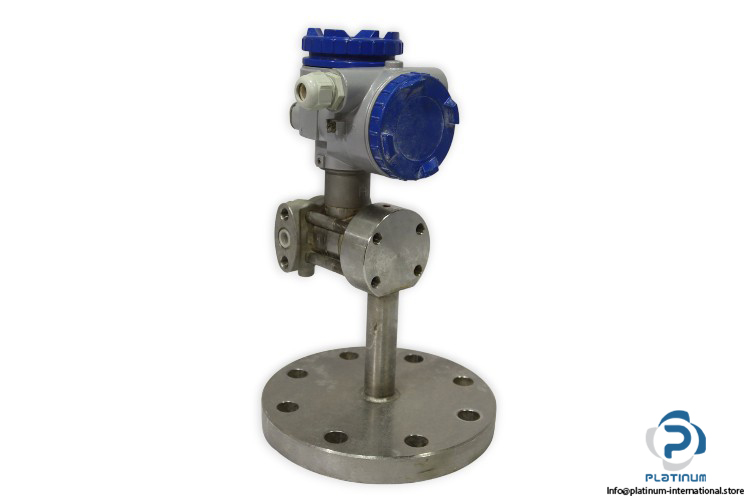

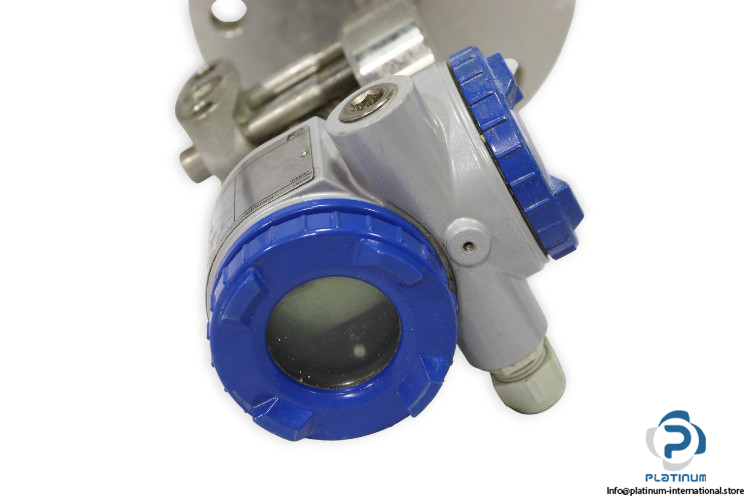

FUJI FKET85VF2AYYYAU Pressure Transmitter with 16B3512 Differential Pressure Unit

The FUJI FKET85VF2AYYYAU Pressure Transmitter from the FCX-AII series provides precise and stable pressure measurement for industrial process control. Designed for high reliability and durability, it operates within a wide supply range and features a robust stainless steel housing suitable for demanding environments. Attached with the 16B3512 Differential Pressure Unit, this transmitter ensures accurate differential readings and long service life.

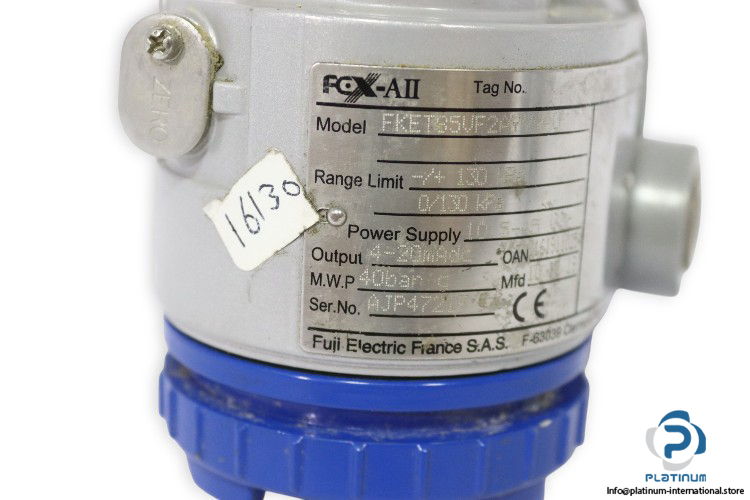

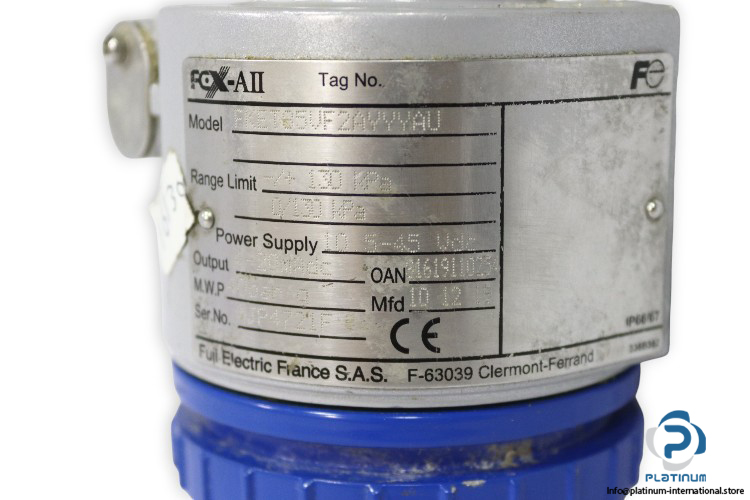

Manufacturer: FUJI
Type: Pressure Transmitter
Model: FKET85VF2AYYYAU
Serial Number: AJP4721F
OAN: 161911025
MFD No.: 1D 12
Series: FCX-AII

Technical Information

Range: 0 / 130 kPa
Supply Voltage: 10.5 “ 45 V DC
Maximum Working Pressure (M.V.P.): 40 BAR
Output Signal: 4 “ 20 mA DC
Connection: G1/4

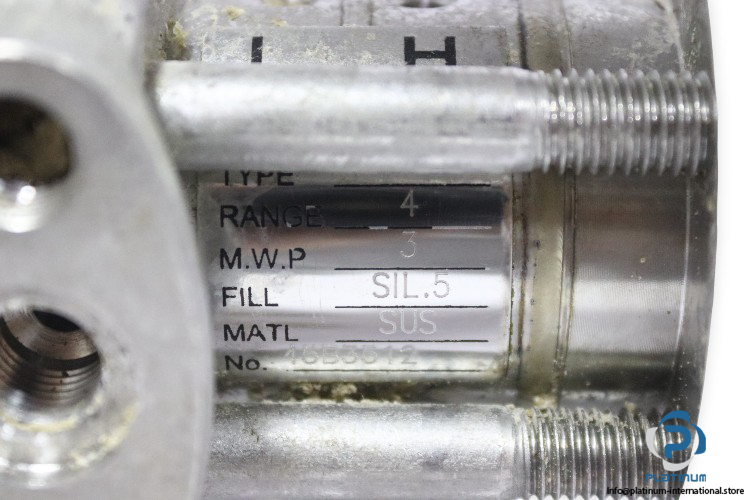

Attached Differential Pressure Unit

Model: 16B3512
Type: DP (Differential Pressure)
Range: 4
Maximum Working Pressure: 3 bar
Ports: Marked L (Low) and H (High)
Fill Fluid: SIL.5 (Silicone Oil)
Protection: CE Marked, IP66/67
Series Tag: FOX-AII
Material: SUS, Stainless Steel
