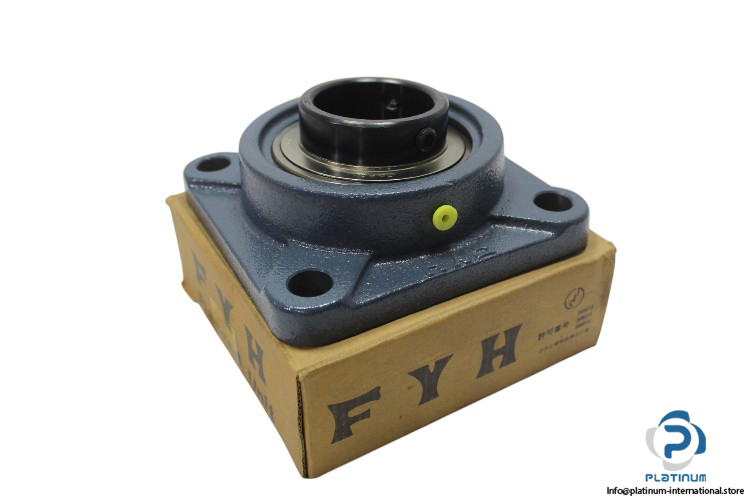

FYH Four-Bolt Square Flange Unit UCF 210J
The FYH UCF 210J Four-Bolt Square Flange Unit offers reliable support and secure attachment in industrial applications. With a cylindrical bore and high load ratings, it ensures long-lasting performance in demanding environments.
Manufacturer: FYH
Model: UCF 210J
Type: Four-Bolt Square Flange Unit
Housing No.: F 210
Bearing No.: UC210
Technical Information:
- Bore Diameter: 50 mm
- Overall Length: 143 mm
- Housing Overall Width: 40 mm
- Width of Inner Ring: 51.6 mm
- Distance Between Attachment Bolts: 111 mm
- Overall Unit Width: 54.6 mm
- Bolt Size: M14
- Dynamic Load Rating: 35.1 kN
- Static Load Rating: 23.3 kN
- Locking Device: Set screw locking
- Bore Type: Cylindrical
