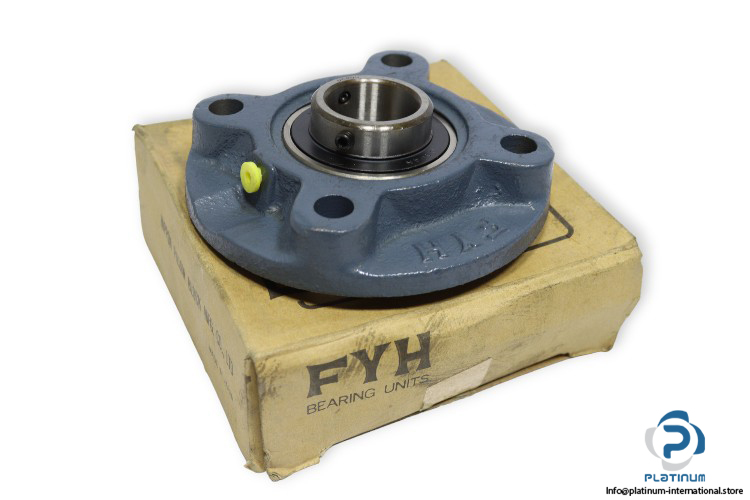

Manufacturer: FYH
Type: Round flange ball bearing unit
Model: UCFC 206 J

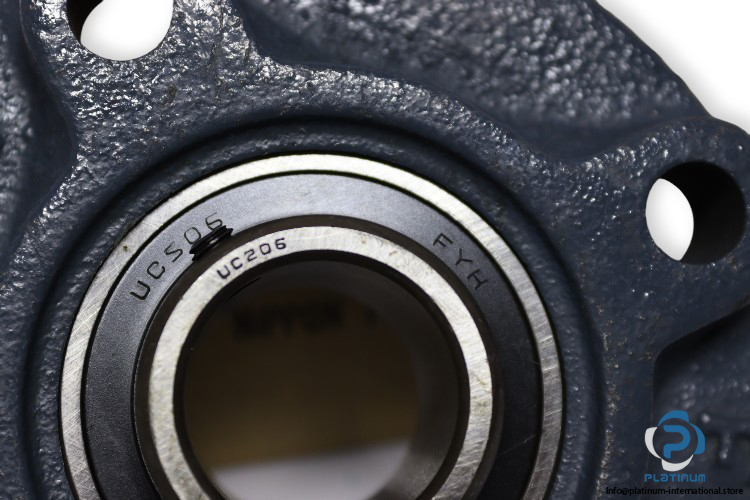

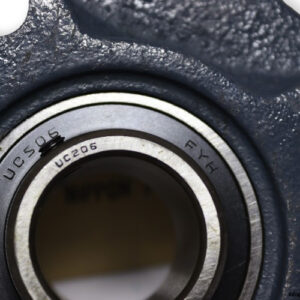

Bearing Number: UC206

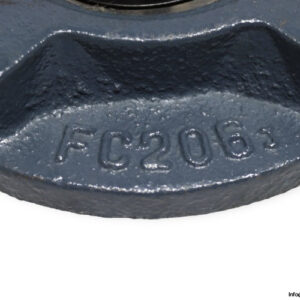

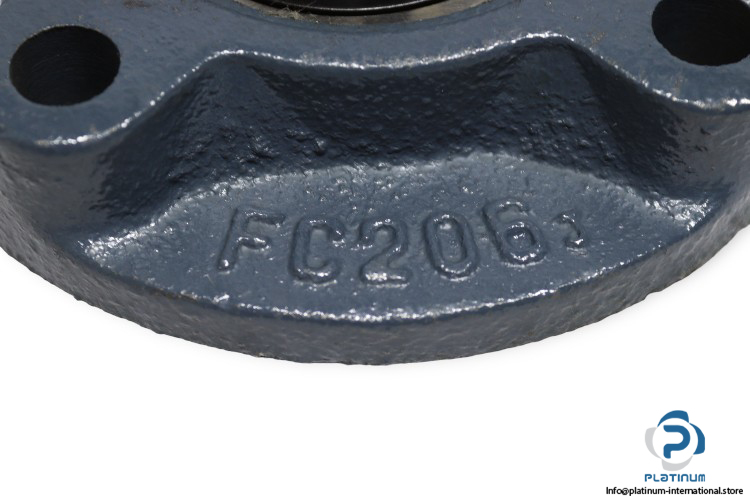

Housing Number: FC206J

Dimensions
Bore Diameter d: 30 mm
Outside diameter L: 125 mm
Distance between attachment bolts J1: 70.7 mm
Pitch diameter of attachment bolts J: 100 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 38.1 mm
Overall width A₀: 32.2 mm
Basic load rating:
Dynamic Cr: 19500 N
Static C0r: 11300 N
Locking Device: Set Screw
Bore Type: Cylindrical
Material, housing: Cast iron
