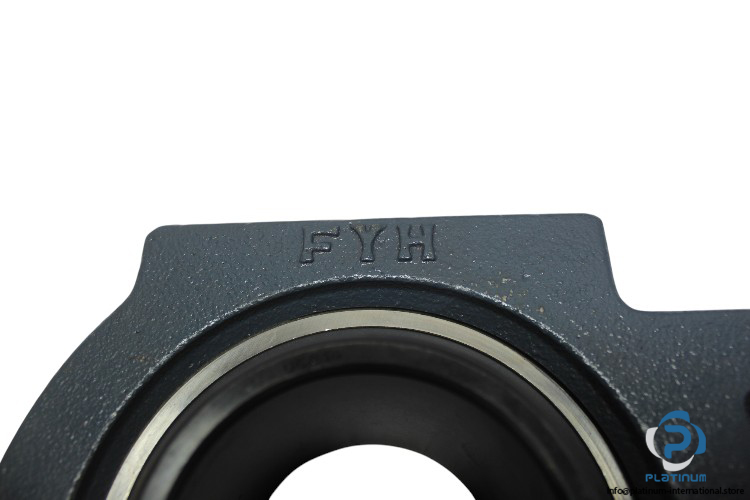

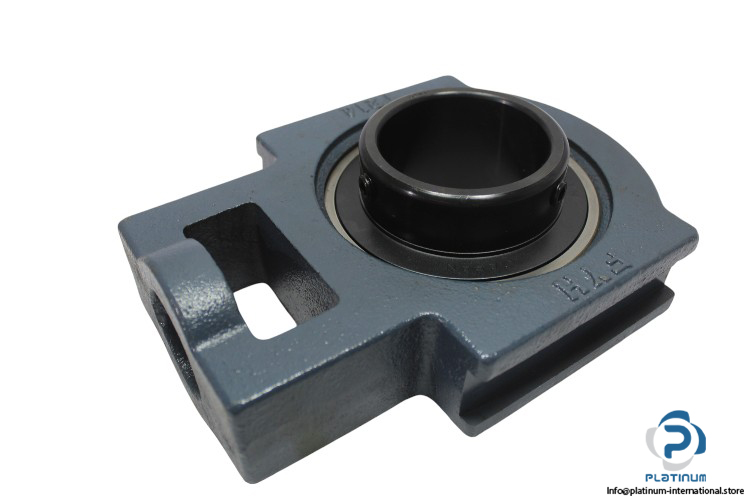

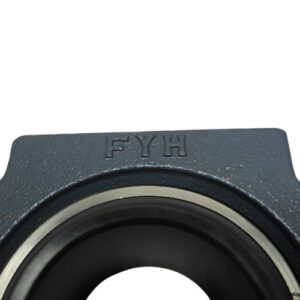

FYH Take Up Ball Bearing Unit UCT 214
The FYH Take Up Ball Bearing Unit UCT 214 is designed for reliable support and efficient movement in industrial applications. It offers high load capacity with a cylindrical bore and a set screw locking device for easy installation.
Manufacturer: FYH
Model: UCT 214
Type: Take Up Ball Bearing Unit

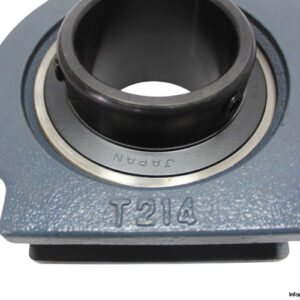

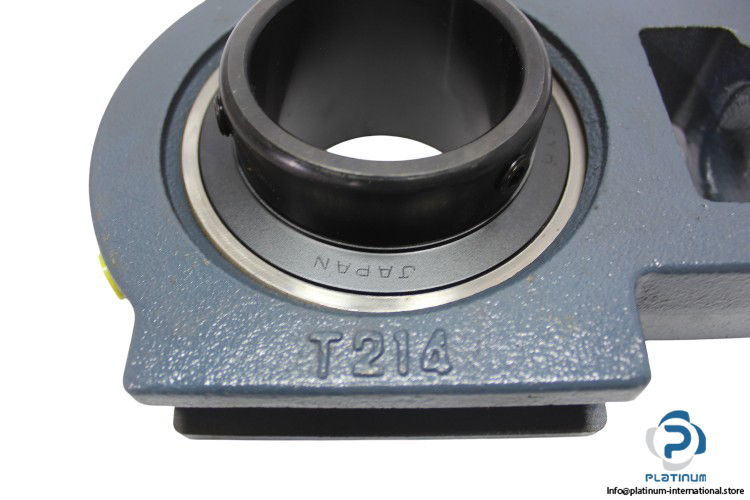

Housing No.: T 214
Bearing No.: U C214
Technical Information:
- Shaft Diameter (d): 70 mm
- Overall Width (A): 70 mm
- Width of Inner Ring (B): 74.6 mm
- Width of Piloting Groove (A1): 26 mm
- Overall Height (H): 167 mm
- Height of Attachment End (H2): 151 mm
- Overall Length (L): 224 mm
- Diameter of Attachment Bolt Hole (N): 41 mm
- Length of Attachment Slot (N1): 32 mm
- Height of Attachment Slot (N2): 70 mm
- Length of Piloting Groove (L3): 121 mm
- Dynamic Load Rating: 62.2 kN
- Static Load Rating: 44.1 kN
- Locking Device: Set screw locking
- Bore Type: Cylindrical
