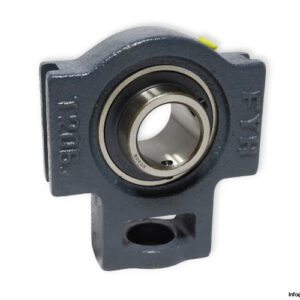

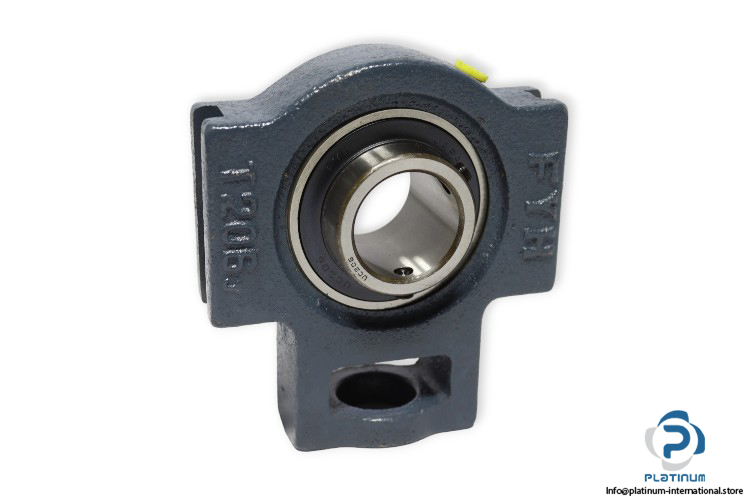

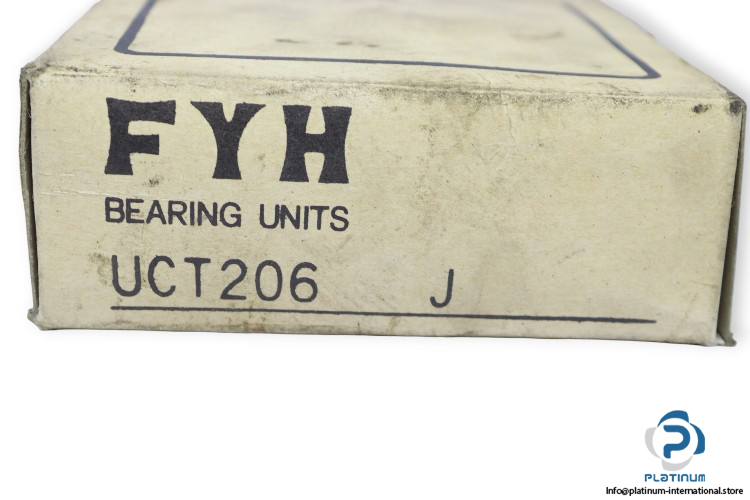

Manufacturer: FYH
Type: Take up ball bearing unit
Model: UCT206 J
Housing No.: T206 J
Bearing No.: UC206

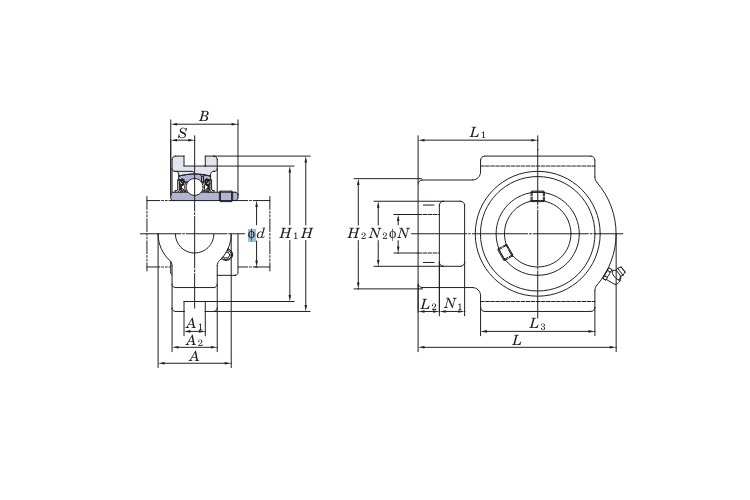

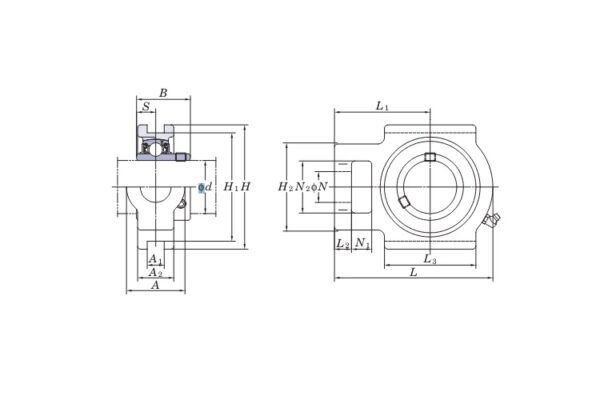

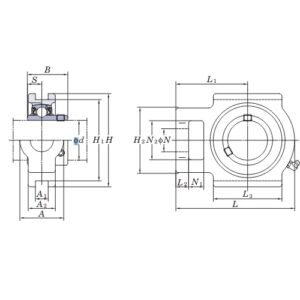

Shaft diameter d: 30 mm
Overall width A: 37 mm
Width of inner ring B: 38.1 mm
Width of piloting groove A1: 12 mm
Overall height H: 102 mm
Height of attachment end H2: 56 mm
Overall length L: 113 mm
Diameter of attachment bolt hole N: 22 mm
Length of attachment slot N1: 16 mm
Height of attachment slot N2: 37 mm
Length of piloting groove L3: 57 mm
Basic Load Rating:
Dynamic: 19.5 kN
Static: 11.3 kN
Housing type: Take-up
Material, housing: Cast iron
Locking Device: set screw locking
Bore Type: Cylindrical
