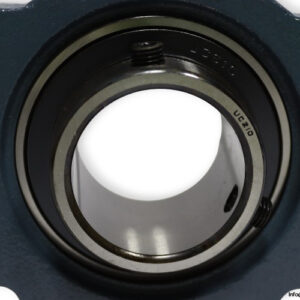

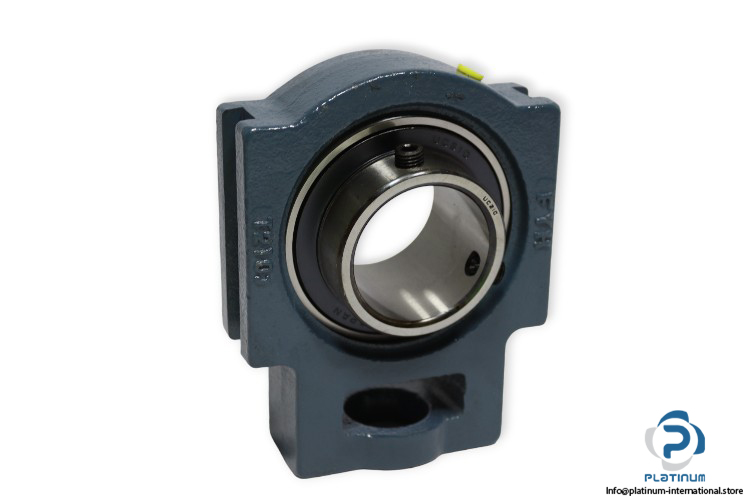

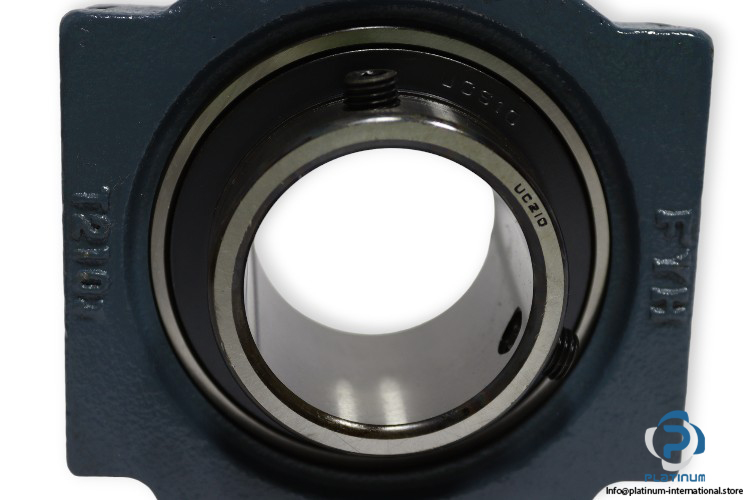

Manufacturer: FYH
Type: Take up ball bearing unit
Model: UCT210 J
Housing No.: T210 J
Bearing No.: UC210

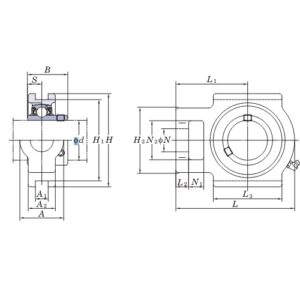

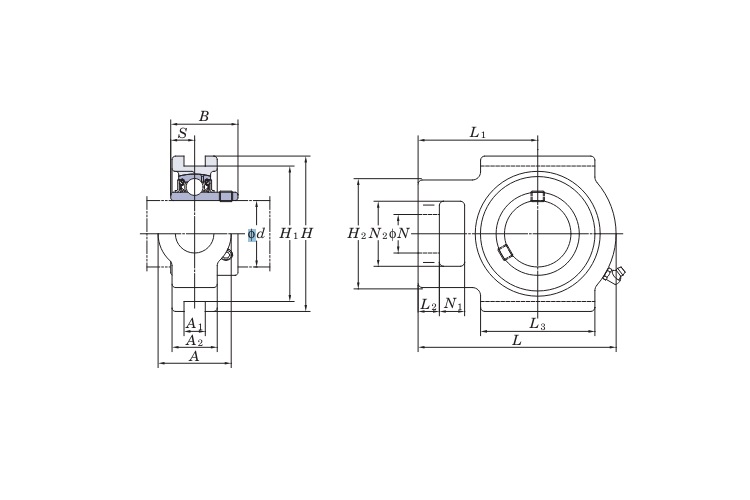

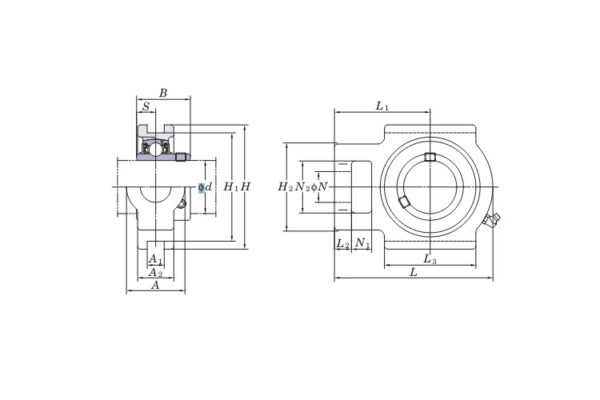

Shaft diameter d: 50 mm
Overall width A: 49 mm
Width of inner ring B: 51.6 mm
Width of piloting groove A1: 16 mm
Overall height H: 117 mm
Height of attachment end H2: 83 mm
Overall length L: 149 mm
Diameter of attachment bolt hole N: 29 mm
Length of attachment slot N1: 19 mm
Height of attachment slot N2: 49 mm
Length of piloting groove L3: 86 mm
Basic Load Rating:
Dynamic: 35.1 kN
Static: 23.3 kN
Housing type: Take-up
Material, housing: Cast iron
Locking Device: set screw locking
Bore Type: Cylindrical
