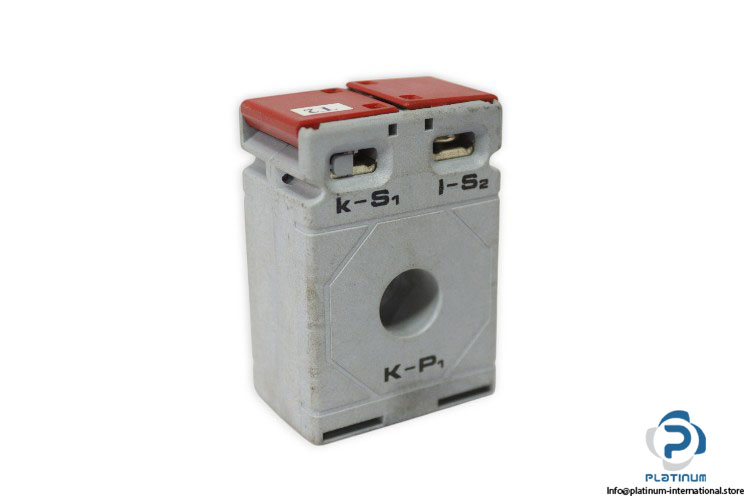

Ganz Electric MAK45/14 Ring-Type Current Transformer
The Ganz Electric MAK45/14 is a precision ring-type current transformer designed for accurate current measurement and reliable performance in electrical systems. Built to IEC 44-1 standards, it delivers dependable operation in industrial environments with excellent thermal and voltage ratings.
Manufacturer: Ganz Electric
Type: Ring-Type Current Transformer
Model: MAK45/14

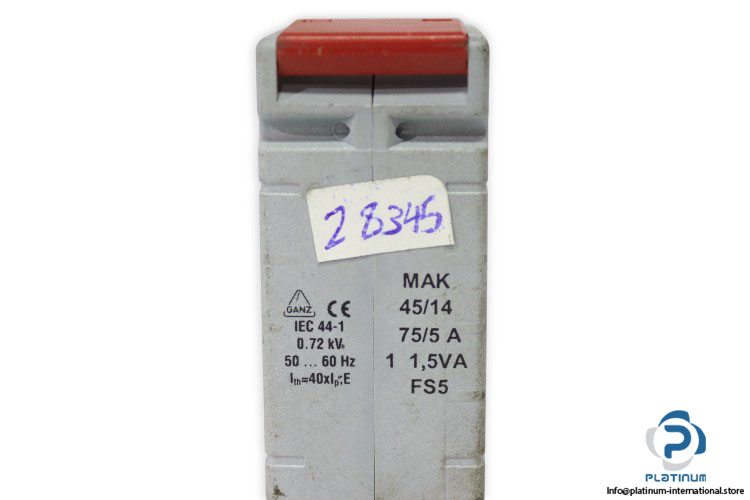

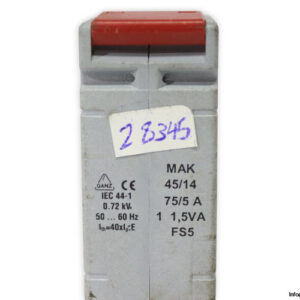

Technical Information
- Rated Burden: 1 to 1.5 VA
- Rated Voltage: 0.72 kV
- Thermal Current Ith: 40×IpE A
- Rated Frequency: 50 to 60 Hz
- Rated Secondary Current: 5 A
- Security Factor: FS5
- Current Ratio: 75/5 A
- Working Temperature Range: -20 to +45°C
- Insulation Class: E (max. 120°C)
- High Voltage Test: 4 kVeff, 50 Hz, 1 min
- Protection Degree: IP00
- Accuracy Class: 0.5 to 3
- Standard: IEC 44-1
- Dimensions: 65 × 45 × 14 mm
