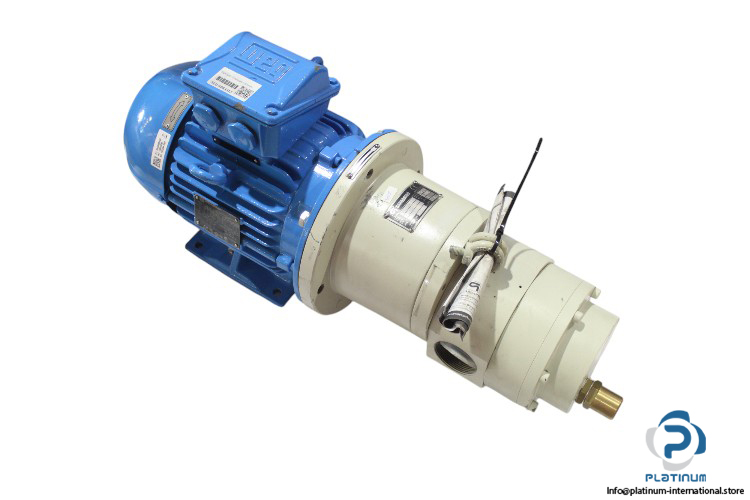

GARBARINO INML 100 SM Gear Pump

The GARBARINO INML 100 SM Gear Pump is a high-performance positive displacement pump designed for efficient fluid transfer in industrial applications. Engineered for reliability, this pump delivers a capacity of 6 m³/h at a head pressure of 5 bar. It is powered by a WEG 112M-04 3-Phase Electric Motor, ensuring optimal performance with a rated power of 4.5 kW and IP55 protection.

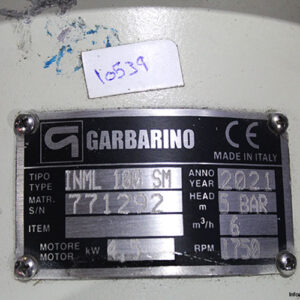

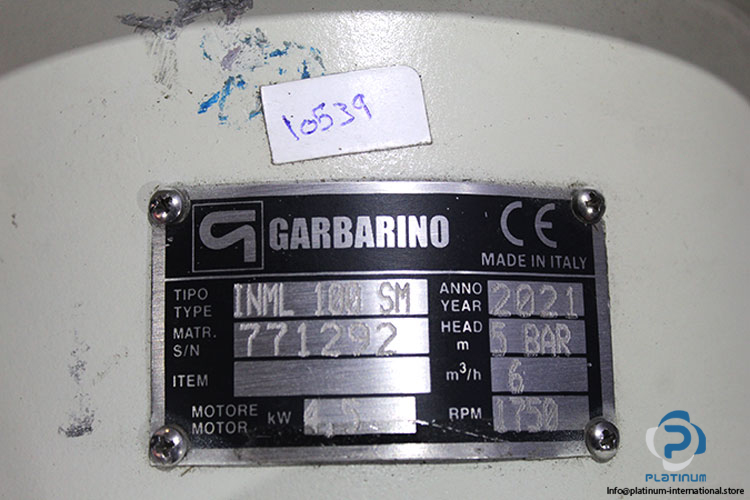

• Manufacturer: GARBARINO
• Type: Gear Pump
• Model: INML 100 SM
• Part No: 771292

Technical Specifications

• Head Pressure: 5 bar
• Rated Speed: 1750 rpm
• Capacity: 6 m³/h
• Rated Power: 4.5 kW
• Nozzle: 2 inch

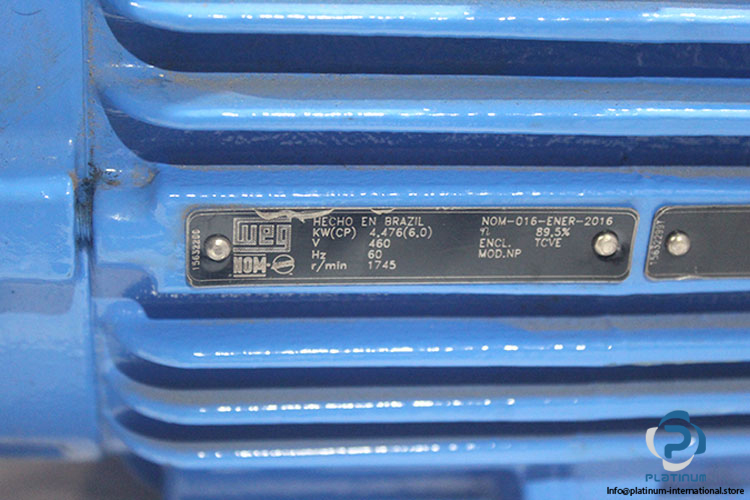

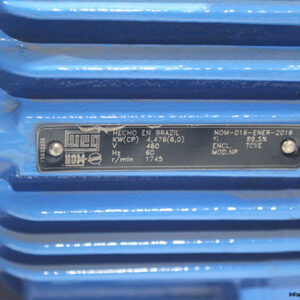

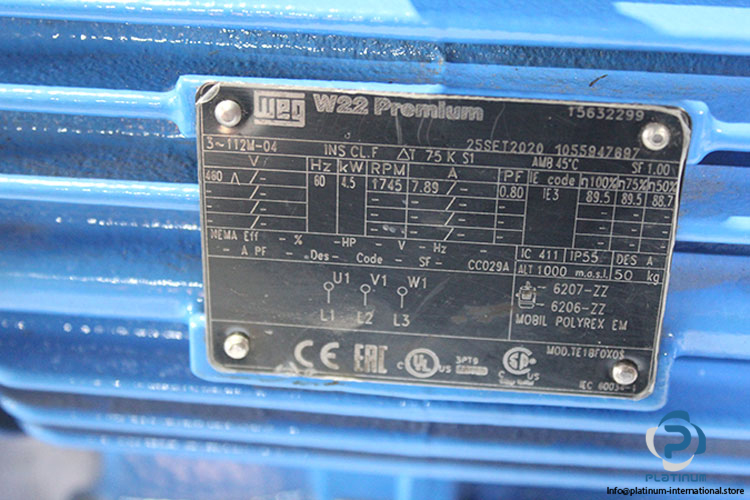

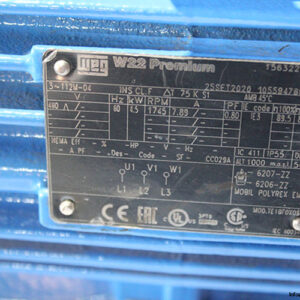

Motor Specifications “ WEG 112M-04 3-Phase Electric Motor

• Rated Voltage: 460 V
• Rated Speed: 1745 RPM
• Rated Frequency: 60 Hz
• Rated Power: 4.5 kW
• Power Factor: 0.80
• Rated Current: 7.89 A
• Insulation Class: F
• Protection: IP55
• Duty: S1
• Ambient Temperature: -20 to 45 °C
