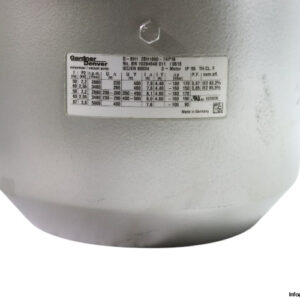

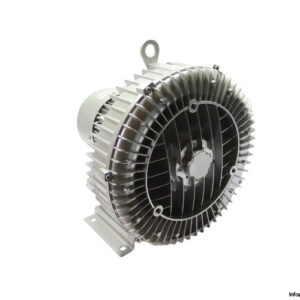

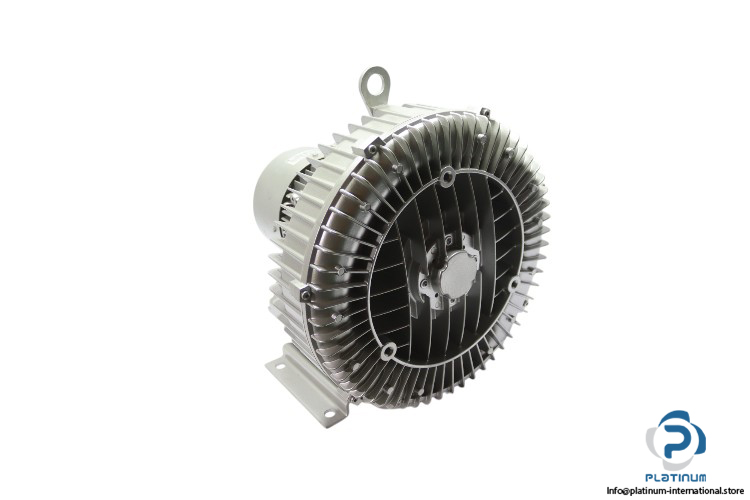

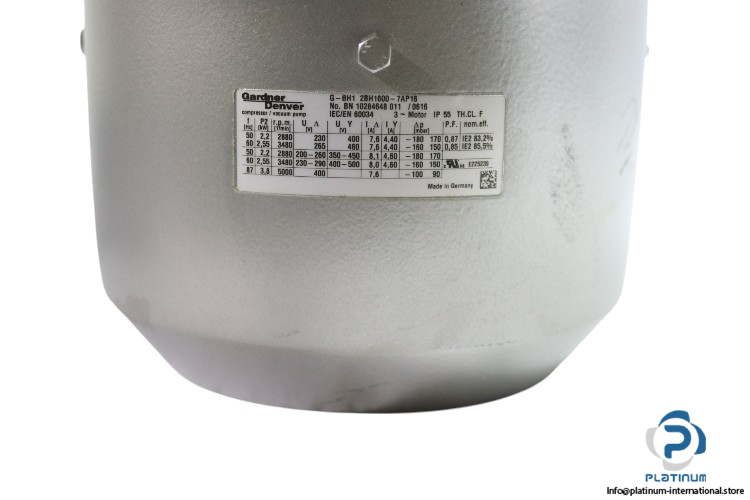

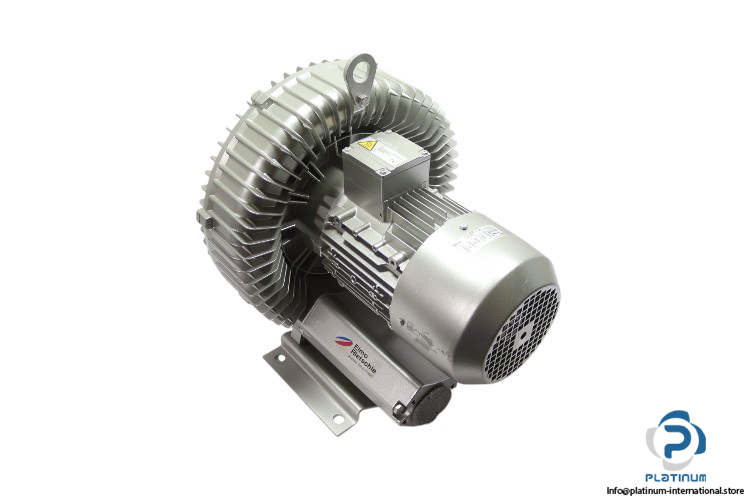

Gardner Denver G-BH1 2BH1600-7AP16 Blower
The Gardner Denver G-BH1 2BH1600-7AP16 Blower is designed for efficient performance across multiple frequencies and voltages. With high power ratings and precise speed control, this blower is ideal for applications requiring both vacuum and pressure generation.
Manufacturer: Gardner Denver
Model: G-BH1 2BH1600-7AP16
Type: Blower
Part No.: BN10284648011//0516
Technical Information:
- @Frequency 50 Hz
- Rated Voltage: 200 V, 200 to 250 (delta) / 400, 360 to 450 V (y)
- Rated Current: 8.1 A (delta) / 4.60 A (y)
- Rated Power: 2.2 Kw
- Max. Differential Pressure: Vacuum -180 mbar, Pressure: 170 mbar
- Power Factor: 0.87
- Speed: 2830/min
- @Frequency 60 Hz
- Rated Voltage: 265 V, 230 to 290 (delta) / 460, 400 to 500 V (y)
- Rated Current: 7.6 A (delta) / 8 A (y)
- Rated Power: 2.55 Kw
- Max. Differential Pressure: Vacuum -160 mbar, Pressure: 150 mbar
- Power Factor: 0.85
- Speed: 3480/min
- @Frequency 87 Hz
- Rated Voltage: 400 V (delta)
- Rated Current: 7.8 A (delta)
- Rated Power: 3.8 Kw
- Max. Differential Pressure: Vacuum -100 mbar, Pressure: 90 mbar
- Speed: 5000/min
- Class: F
- IP Rate: IP55
