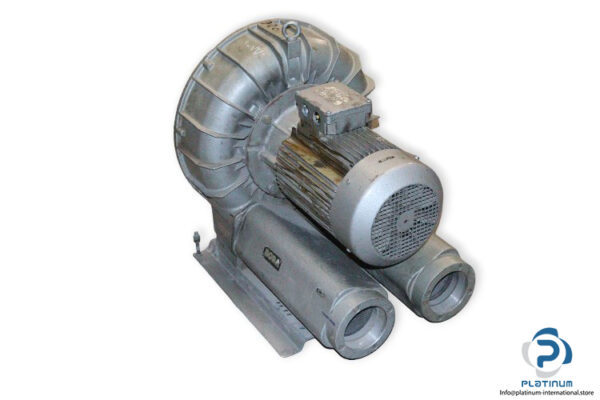

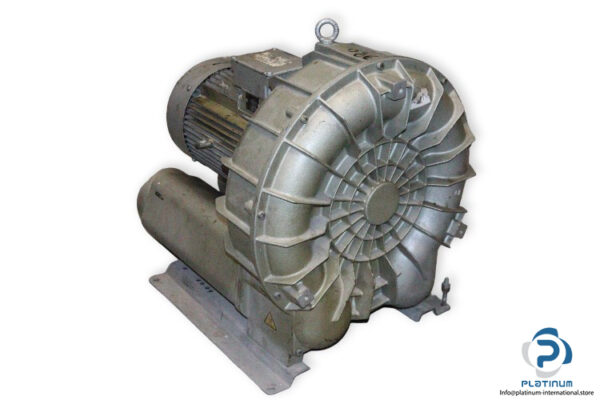

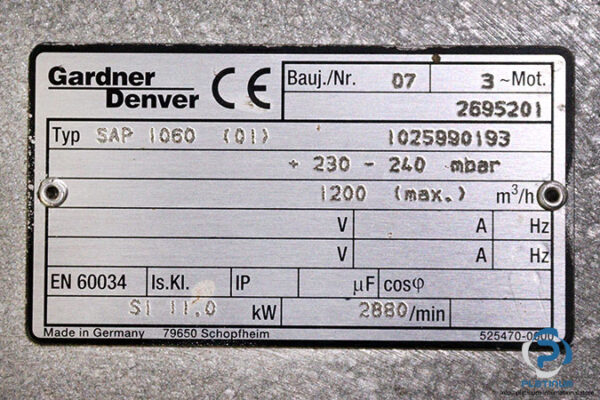

Manufacturer: Gardner Denver
Type: Single Side Channel Blower
Model: SAP1060

Channel Design: Single
Rated Pressure [mbar]: +230/-240
Max. Flow Rate [m³/min]: 1200
Rated Power [kW]: 11.0
Rated Speed [rpm]: 2880

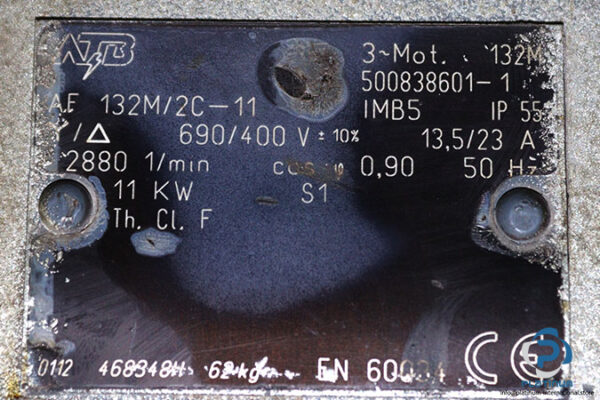

Attachment: ATB AF 132M/2C-11 3-Phase Electric Motor
Manufacturer: ATB
Type: 3-Phase Electric Motor
Model: AF 132M/2C-11
Rated Power [kW]: 11.0
Supply Voltage [V]: 690/400
Rated Current [A]: 13.5/23
Frequency [Hz]: 50
Rated Speed [rpm]: 2880
Protection Class [IP]: 55
Power Factor [cos]: 0.90
Mounting Position [IM]: B5
Duty: S1
Insulation Class: F
