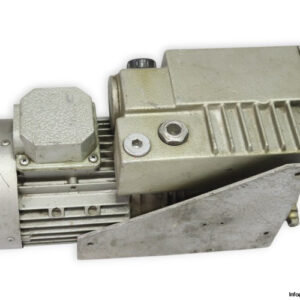

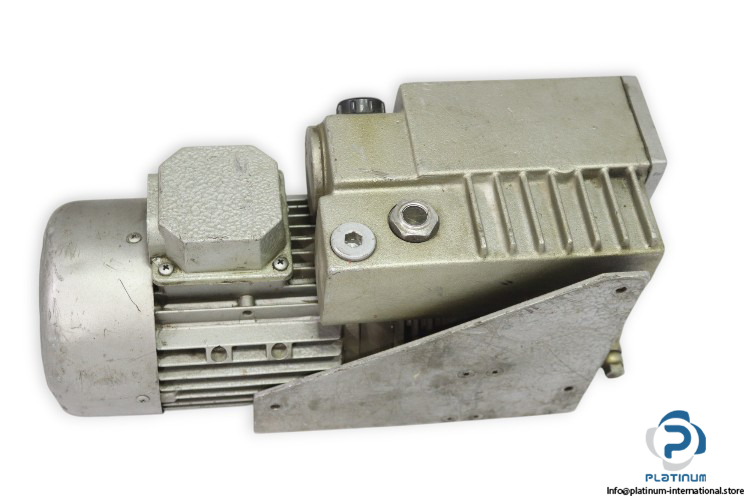

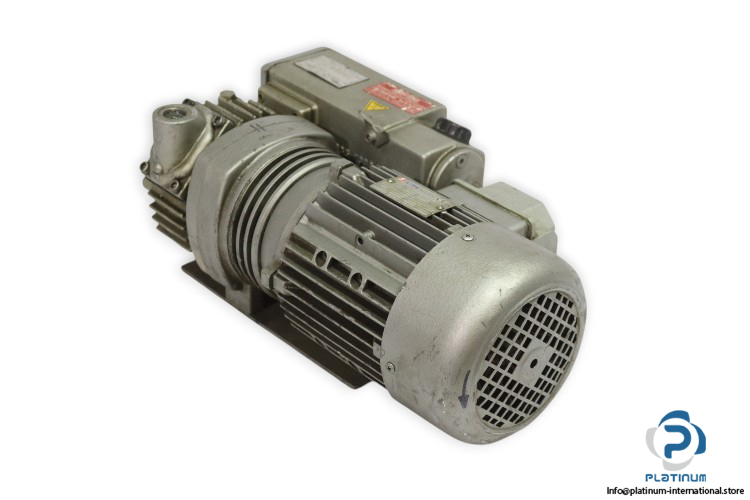

Gardner Denver VCB 20 (07) Rotary Vane Vacuum Pump

The Gardner Denver VCB 20 (07) is a high-performance rotary vane vacuum pump designed for reliable operation in industrial environments. With a robust motor, durable construction, and efficient pressure/flow performance, it ensures continuous and efficient vacuum generation.

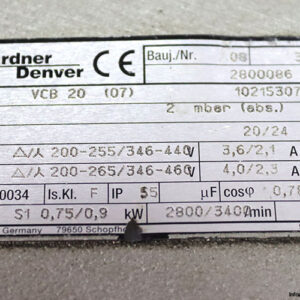

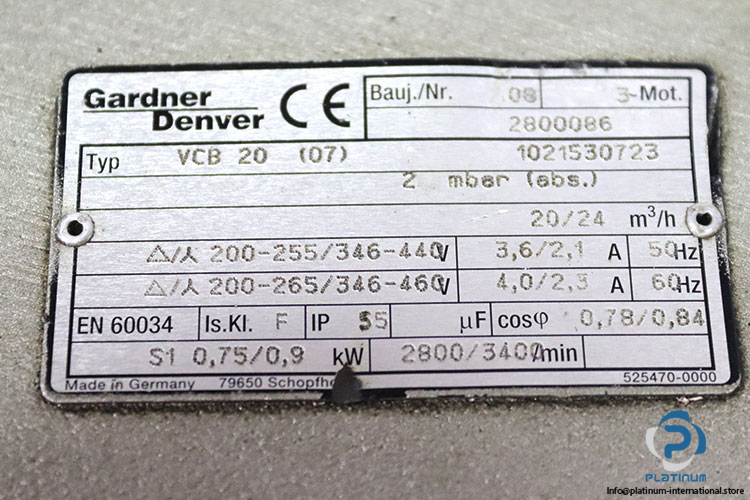

Manufacturer: Gardner Denver
Type: Rotary Vane Vacuum Pump
Model: VCB 20 (07)
Part No.: 1021530723 / 2800086
Bauj./Nr.: 08
Code: 525470-0000

Technical information

• Pressure: 2 mbar (abs.)
• Flowrate: 20 / 24 m³/h
• Speed: 2800 / 3400 rpm
• Power: 0.75 / 0.9 kW
• Power Factor (Cos φ): 0.78 / 0.84
• Voltage: 200“255 / 346“440 V, 200“265 / 346“460 V
• Current: 3.6 / 2.1 A, 4 / 2.3 A
• Frequency: 50 / 60 Hz
• Duty: S1
• IP Rate: IP55
• Insulation Class: F

Attachment

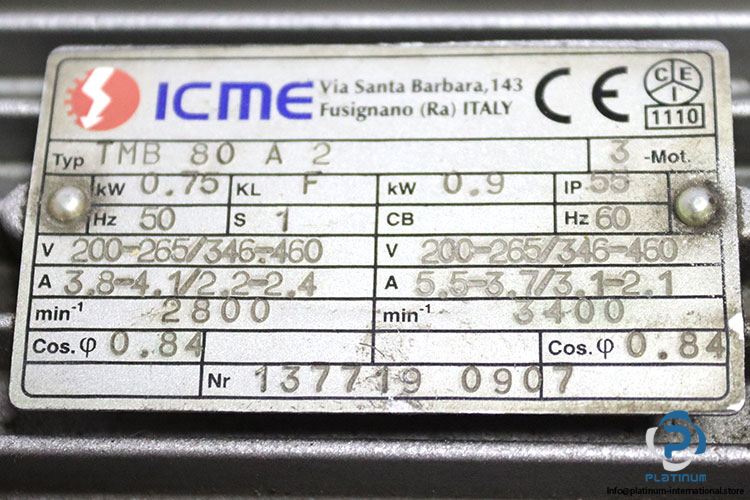

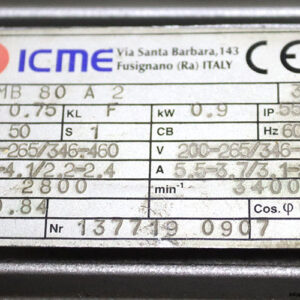

ICME TMB 80 A 2 Motor
Serial No.: 137719 0907

• Power: 0.75 kW (50 Hz) / 0.9 kW (60 Hz)
• Frequency: 50 / 60 Hz
• Voltage (Δ/Y): 200“265 V / 346“460 V
• Current: 3.8“4.1 A (Δ) / 2.2“2.4 A (Y) at 50 Hz; 5.5“3.7 A (Δ) / 3.1“2.1 A (Y) at 60 Hz
• Speed: 2800 rpm (50 Hz) / 3400 rpm (60 Hz)
• Duty: S1 (continuous operation)
• Insulation Class: F
• Protection Class: IP55
• Power Factor (Cos φ): 0.84
• Construction: 3-phase motor
