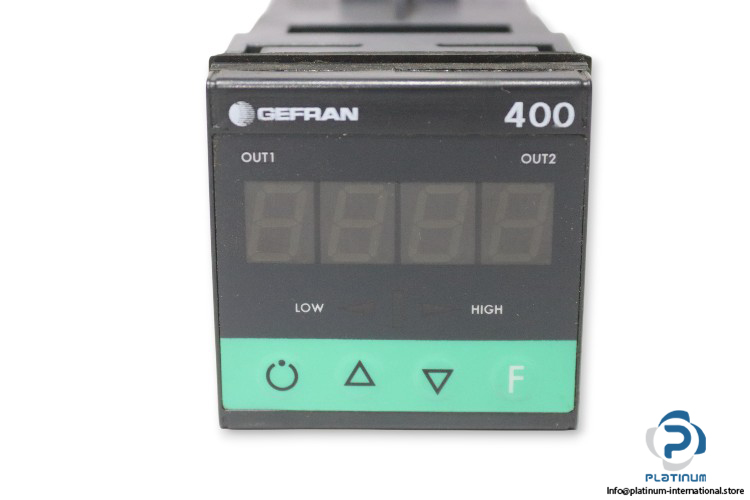

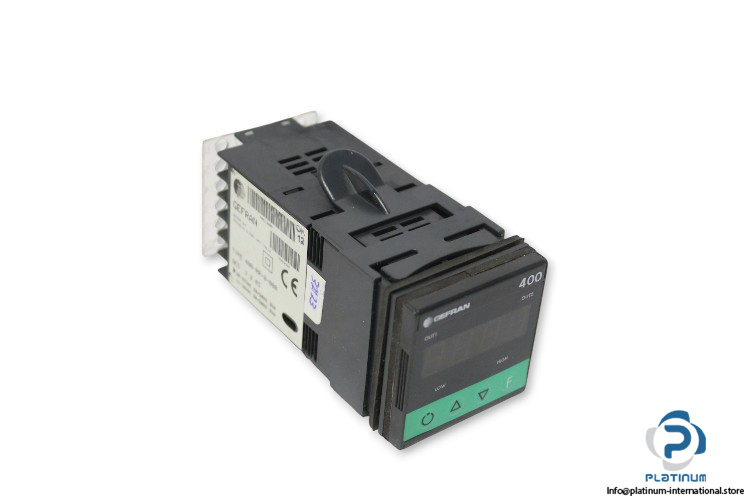

Gefran 400-RR-0-000 Microprocessor Controller
The Gefran 400RR0000 Microprocessor Controller is a compact and highly reliable control unit designed for precise temperature and process regulation. With multiple sensor inputs, robust relay outputs, and durable IP65 construction, it offers stable performance for a wide range of industrial applications.
Manufacturer: Gefran
Type: Microprocessor Controller

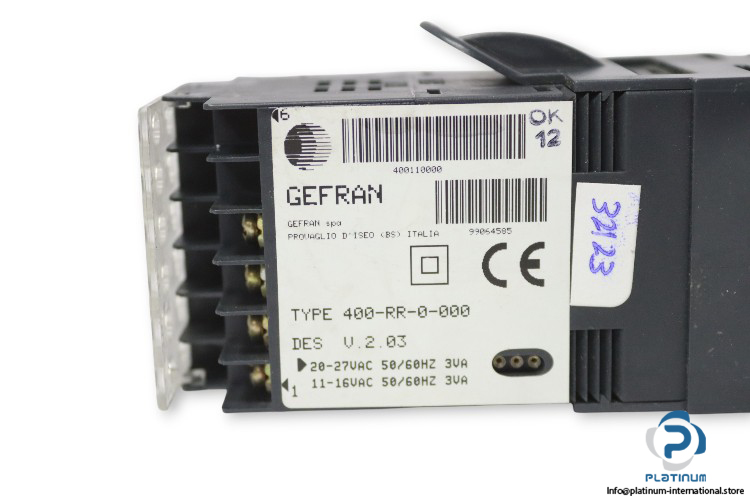

Model: 400-RR-0-000
Part No.: 400110000 / 99054585
Version: V.2.03
Technical Information
- Series: 400
- Sensor Input: Thermocouple Type J, K, R, S, T, B, E, N / Resistance Thermometer PT100 / Thermistor PTC
- Supply Voltage: 20 … 27 V AC (Standard) / 11 … 27 V AC (Optional)
- Power Consumption: 3 VA
- Frequency: 50 … 60 Hz
- Outputs Function: 2 Output Relay
- Output Type: 250 V AC / 5 A
- Number of Digits: 4
- Material: ABS
- Protection Class: IP65
- Temperature: 0 … 55 °C
- Dimensions: 48 x 48 x 109 mm
