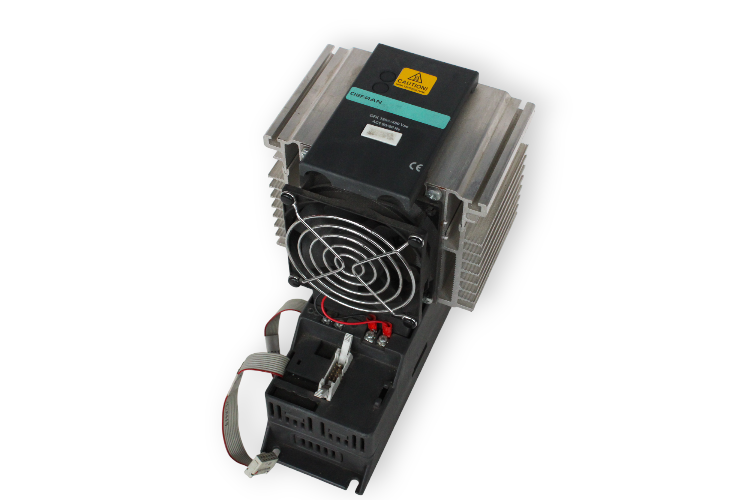

GEFRAN GFX-E1-120/480-0-0-00-0-C0 Modular Power Controller
The GEFRAN GFXE112048000000C0 is a modular power controller designed for precise control and reliable performance in industrial applications. With robust protections, communication interfaces, and advanced alarm functions, it ensures efficiency and safety in demanding environments.
Manufacturer: GEFRAN
Type: Modular Power Controller
Model: GFX-E1-120/480-0-0-00-0-C0

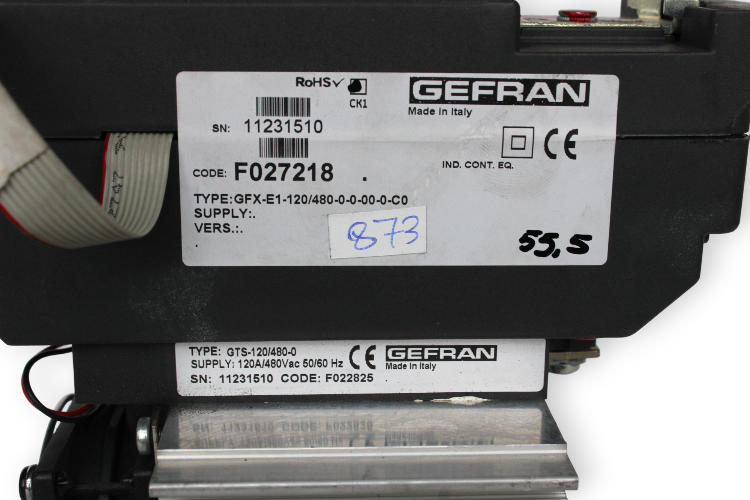

Code: F027218
Technical Information
- Supply Voltage: 480 V DC
- Rated Current: 120 A
- Power: 5 W
- Frequency: 50 / 60 Hz
- Field Bus: PROFIBUS DP, CANopen
- Serial Protocol: Optically Isolated RS485 œModbus RTU
- Alarms: 4 General Alarms, LBA and HB Alarms
- Protection Class: IP20
- Temperature Range: 0 / 80 °C
- Dimensions: 225 x 127 x 195 mm
Attachment
GEFRAN GTS-120/480-0 Power Solid State Relays With Logic Control
- Manufacturer: GEFRAN
- Type: Power Solid State Relays With Logic Control
- Model: GTS-120/480-0
- Part No.: F022825
- Rated Voltage: 480 V AC
- Rated Current: 120 A
- Frequency: 50 / 60 Hz
- Non-Repetitive Over Current T=20 ms: 1150 A
- Dimensions: 44 x 112 x 142 mm
