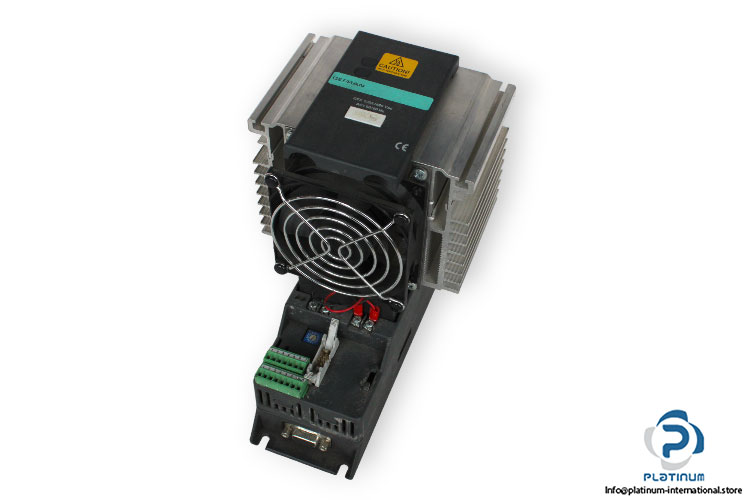

Manufacturer: Gefran

Type: Modular Power Controller

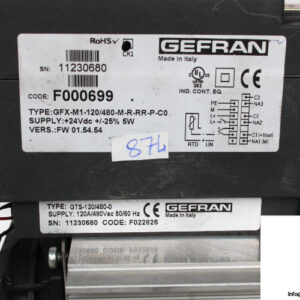

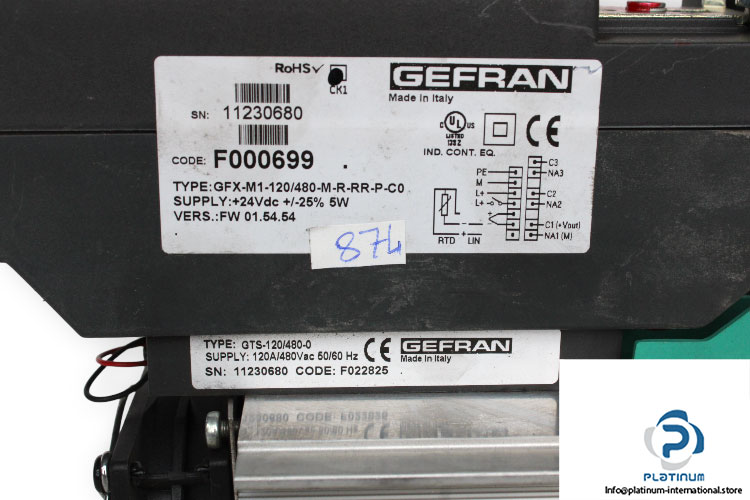

Model: GFX-M1-120/480-M-R-RR-P-C0

Part No.: F000699



Supply voltage: 24 V DC ± 25%

Rated current: 120 A

Rated voltage: 480 V AC/ 1-Phase

Input range: 0 … 60 mV

Frequency: 50/60 Hz

Input/Output Function: PNP Digital Input; Relay Output

Output: Max 3 Relays / 1 Logic(24 V DC, 35 mA) + 2 Relays ( NO, max 3A, 250V)

Power: 5 W

Protection degree: IP20

Interface Type: Modbus RTU

Working temperature: 0 … 80°C

Dimensions: 225 x 127 x 195 mm

Attachment:

GEFRAN GTS-120/480-0 POWER SOLID STATE RELAYS WITH LOGIC CONTROL

Part No.: F022825

Rated current: 120 A

Rated voltage: 480 V AC

Frequency: 50/60 Hz

Non-repetitive overcurrent t=20 ms: 1500 A

Dimensions: 113 x 112 x 142 mm
