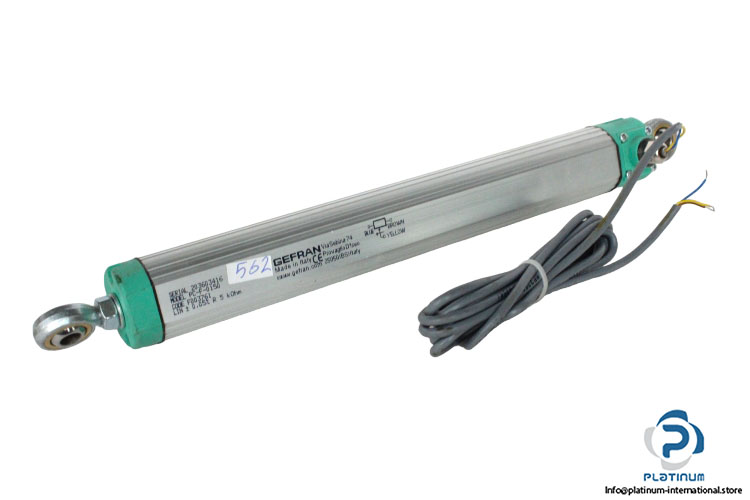

Gefran PCF0150 Linear Transducer
The Gefran PCF0150 Linear Transducer is a high-performance transducer designed for precise measurement of linear displacement in industrial environments. With a **150 mm electrical stroke** and a **displacement speed** of **5 m/s**, it provides reliable and accurate measurements. The **maximum applicable voltage** is **60 V**, and it features a **maximum cursor current** of **10 mA**. This transducer is equipped with a **3-pole screened cable** (1 m length) for easy electrical connections and operates efficiently within a **temperature range** of **-30 to +100 °C**. The **IP65 protection degree** ensures that the transducer remains protected against dust and water ingress, making it suitable for demanding environments.
- Manufacturer: Gefran
- Type: Linear Transducer
- Model: PCF0150

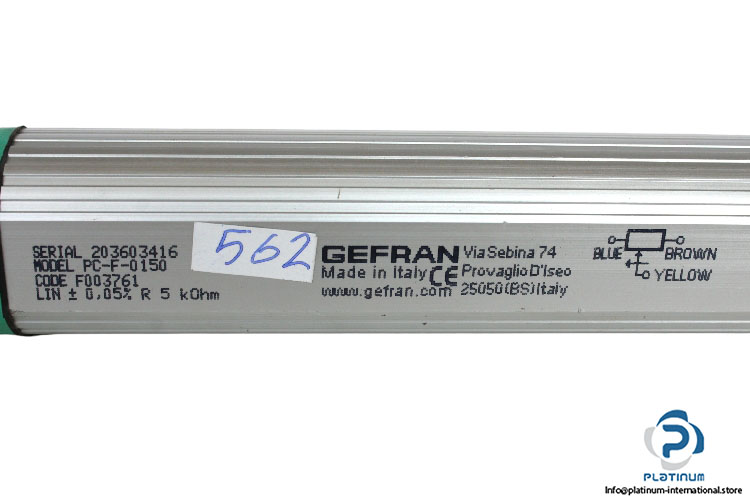

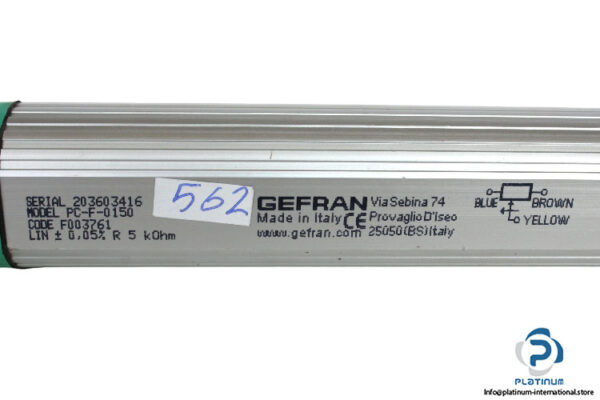

- Part No.: F003761
Technical Information
- Max. Applicable Voltage: 60 V
- Maximum Cursor Current: 10 mA
- Displacement Speed: 5 m/s
- Displacement Force: 15 N
- Electrical Stroke: 150 mm
- Resistance: 5 kohm

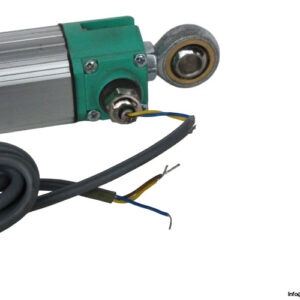

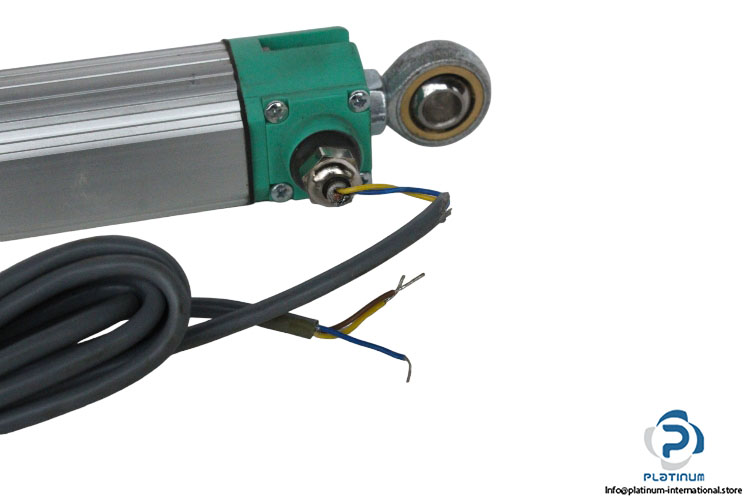

- Electrical Connections: 3-pole screened cable (1 m length)
- Operating Temperature: -30 to +100 °C
- Degree of Protection: IP65
- Case Material: Anodized aluminum, Nylon 66 G
- Control Rod Material: Stainless steel AISI 303
The Gefran PCF0150 Linear Transducer offers high precision and durability, making it an ideal solution for applications that require accurate displacement measurement in harsh environments.
