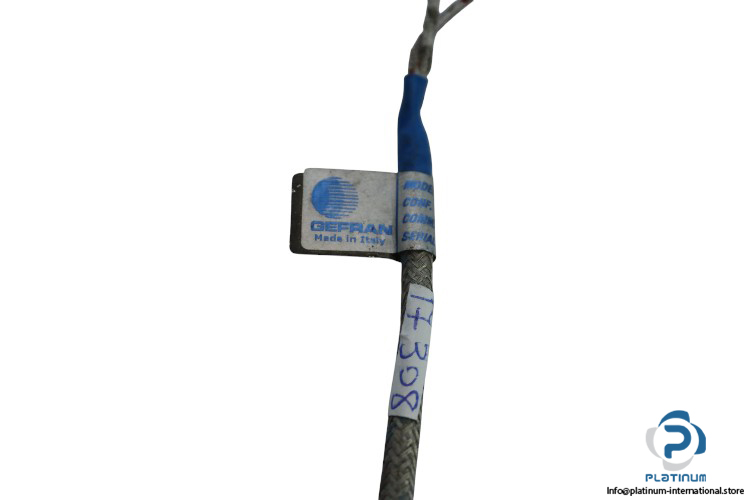

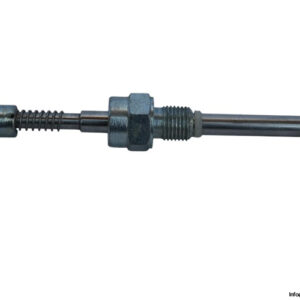

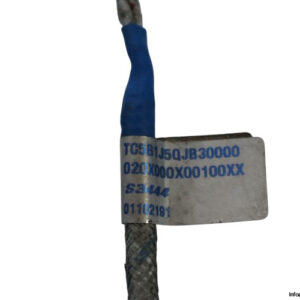

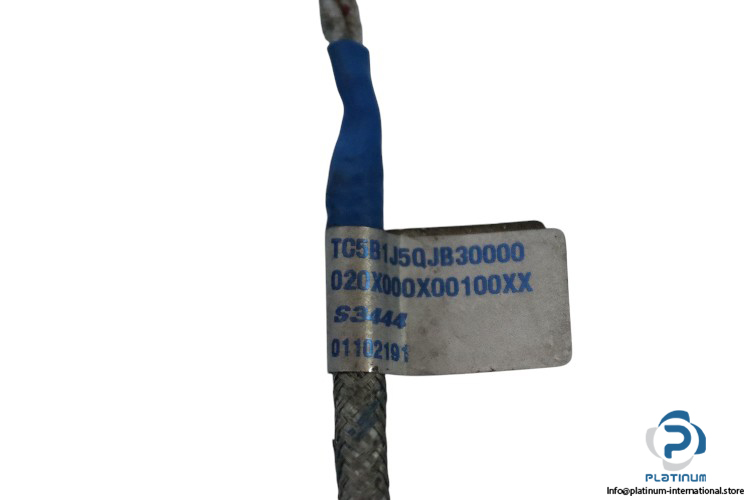

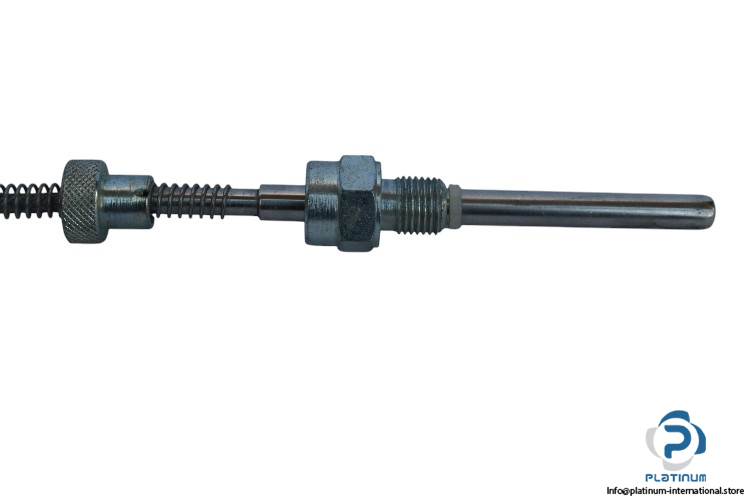

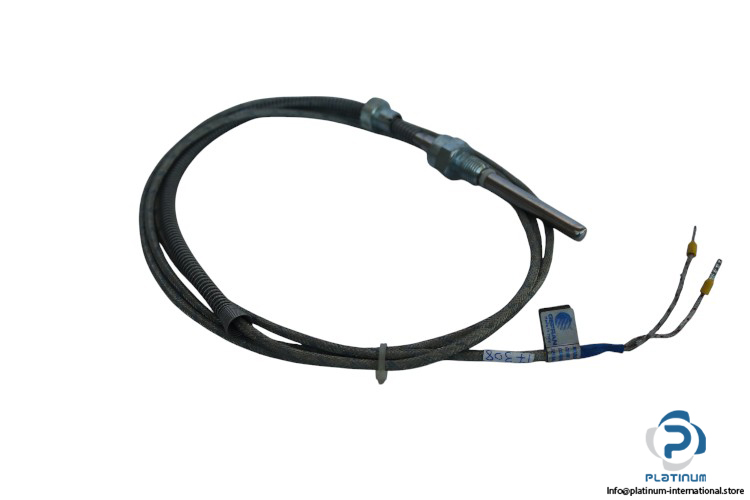

GEFRAN Thermocouple TC5B1J5QJB30000

The GEFRAN TC5B1J5QJB30000 Thermocouple is a high-quality temperature measurement device designed for industrial applications. Featuring Fe – Cu/Ni elements, an isolated single hot junction, and a durable AISI 303 sheathing, it provides accurate readings across a wide temperature range. With G1/4 mount threading and a compact design, it ensures easy integration into various systems.

• Manufacturer: GEFRAN
• Type: Thermocouple
• Model: TC5B1J5QJB30000
• Element Type: Fe – Cu/Ni
• Cable (to DIN Standard): TTS
• Sheathing Material: AISI 303
• Mount Threading (F): G1/4
• Mount Material: Galvanized Carbon Steel
• Element + Hot Junction: Isolated Single
• Max. Temperature Limit: -40 / 250°C
• Cable Connection: 2 Wires
• Dimensions: 6.0 mm x 99.0 mm
