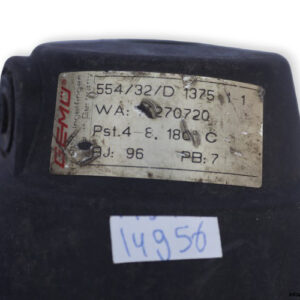

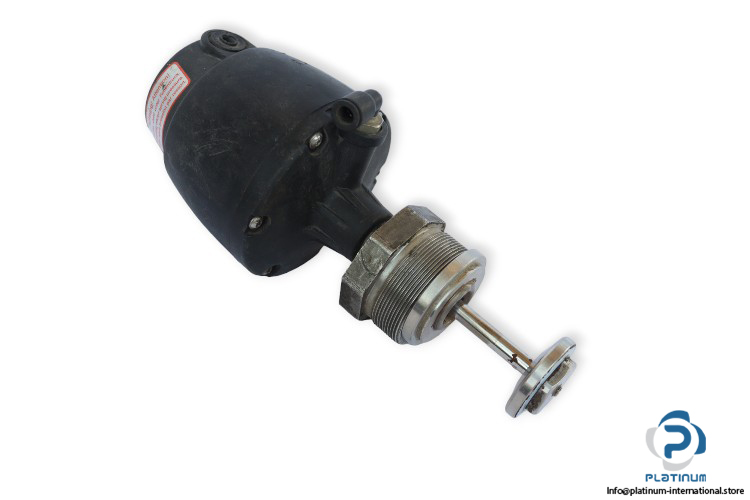

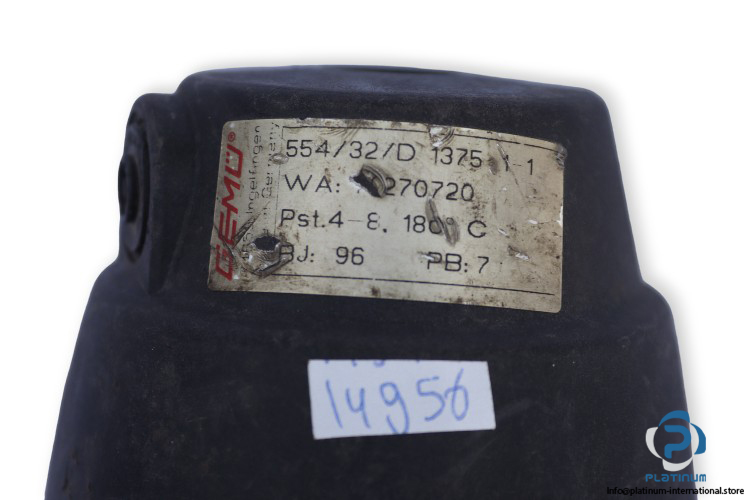

GEMU 554/32/D 1375 1-1 Angle Seat Globe Valve

The GEMU 55432D137511 Angle Seat Globe Valve is designed for controlling inert gases and liquids with precision and durability. Featuring a 2/2-way body configuration and constructed from cast bronze, this valve ensures reliable performance in demanding applications.

Manufacturer: GEMU

Type: Angle Seat Globe Valve

Model: 554/32/D 1375 1-1

Part No.: 270720

Technical Information:

• Fluid: Inert Gas, Liquids
• Body Configuration: 2/2-Way Body
• Operating Pressure Max.: 10 bar
• Control Pressure: 4.8 to 7.0 bar
• Actuator Size: 1
• Nominal Size: 32
• Seat Seal: PTFE
• Control Function: Normally Closed (NC)
• Temperature Max.: 60 °C
• Connection Type: Threaded Socket DIN ISO 228
• Valve Body Material: Cast Bronze
• Medium Temperature: -10 to 180 °C
• Port Size: G 1/2
