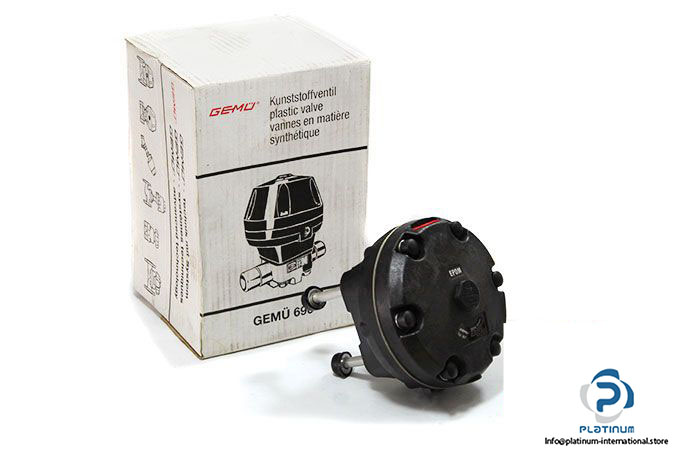

GEMU 667/32/D 0114-2 2/2-Way Diaphragm Valve
The GEMU 667/32/D 0114-2 2/2-Way Diaphragm Valve is designed for precise control of liquid and gaseous media in industrial process applications. Its PVC-U body and EPDM diaphragm ensure excellent chemical resistance and durability for reliable operation under varied pressure conditions.
Manufacturer: GEMU
Type: 2/2-Way Diaphragm Valve
Series: 667
Order Number: 667/32/D 0114-2
Technical Information
- Housing Material: Plastic
- Valve Body Material: PVC-U
- Diaphragm Material: EPDM
- Nominal Size: DN 32
- Diaphragm Size: 40 millimeters
- Filling Volume: 0.24 cubic decimeters
- Kv Value: 18 cubic meters per hour

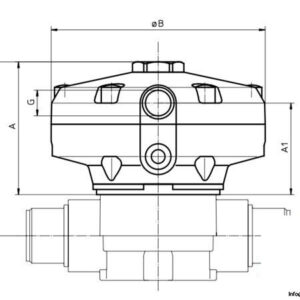

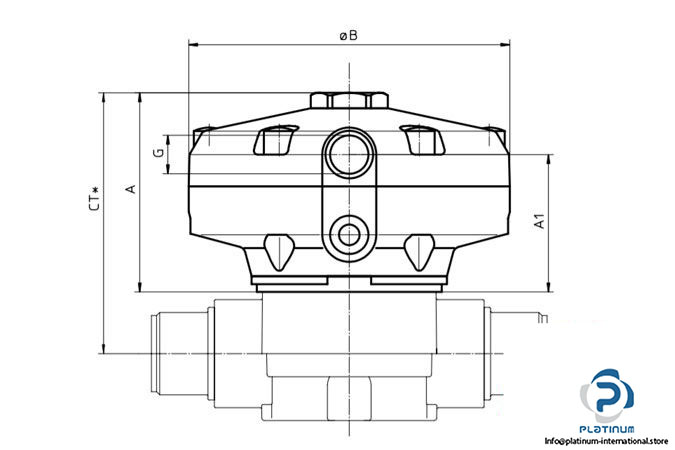

- Dimensions (A x A1 x B): 108 x 74 x 150 millimeters
- Media: Liquid and gaseous media
- Body Configuration: 2 by 2 way
- Control Function: Closed by control medium, opened by spring force
- Connection: Spigots DIN for socket solvent cementing
- Operating Pressure: 0 to 10 bar
- Maximum Control Pressure: 6 bar
- Maximum Working Temperature: 60 degree Celsius
