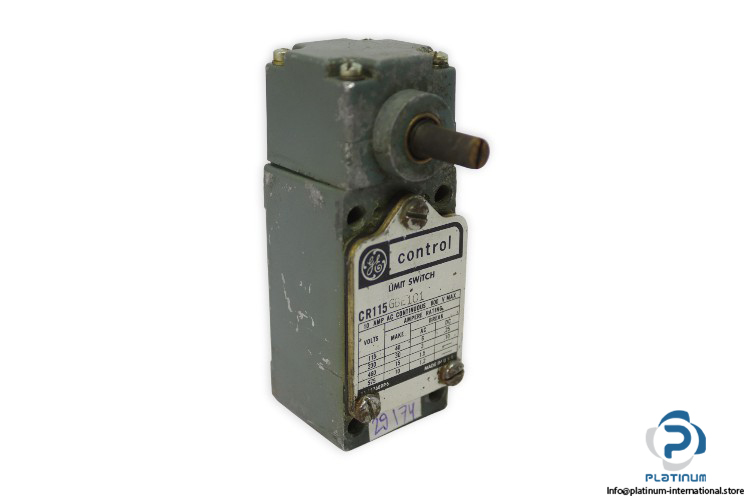

GENERAL ELECTRIC CONTROL CR115 GBE101 Limit Switch

The GENERAL ELECTRIC CR115GBE101 is a durable limit switch designed for precision and reliability in industrial applications. Built to operate in demanding environments, it provides consistent performance and safety assurance across control systems.

Manufacturer: General Electric
Type: Limit Switch
Model: CR115 GBE101

Technical Information

• Rated Voltage: 600 V AC
• Rated Current Max.: 10 A
• Frequency: 50 / 60 Hz

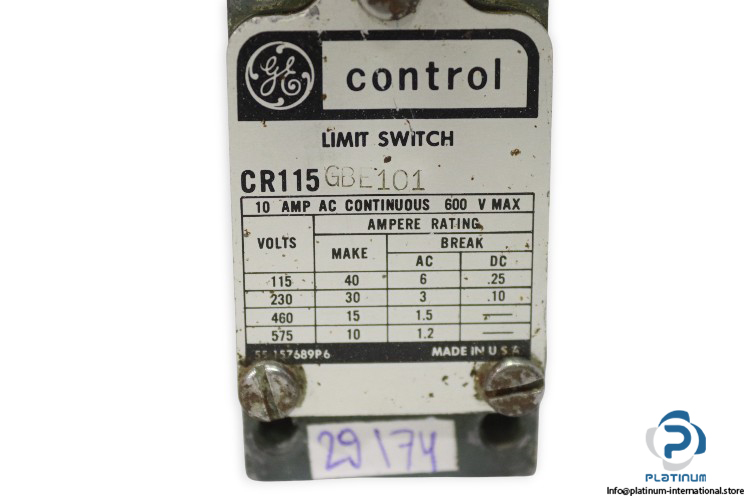

• Electrical Ratings:
  115 VAC: Make 40 A, Break 6 A (AC), 25 A (DC)
  230 VAC: Make 30 A, Break 3 A (AC), 10 A (DC)
  460 VAC: Make 15 A, Break 1.3 A (AC)
  575 VAC: Make 10 A, Break 1.2 A (AC)
• Protection Class: IP67
• Ambient Temperature: -40 / 70 °C
