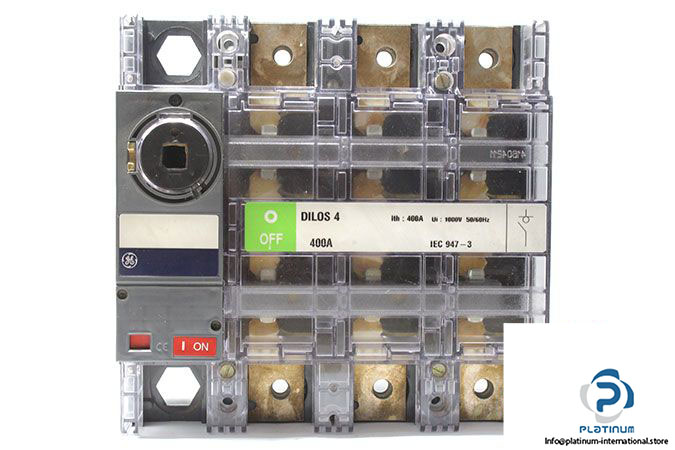

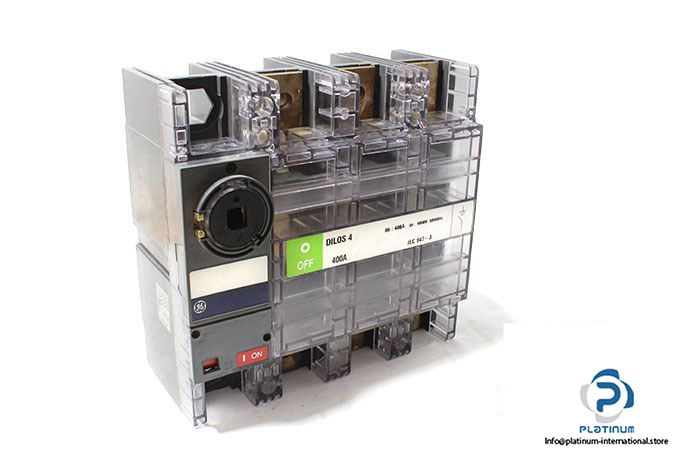

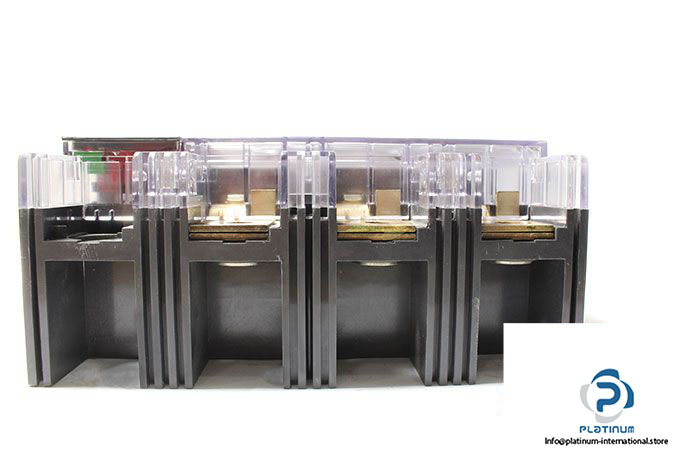

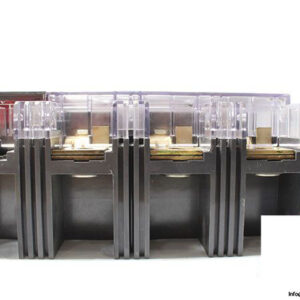

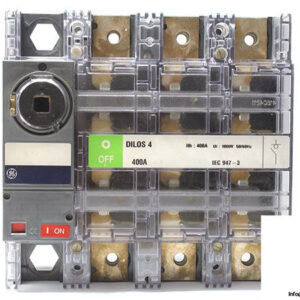

General Electric DILOS 4 Circuit Breaker / Switch Disconnector
The General Electric DILOS 4 is a heavy-duty switch disconnector from the renowned DILOS series, engineered for high-performance electrical protection and isolation. Designed for panel mounting, it provides reliable operation, high breaking capacity, and safe disconnection in industrial and commercial power systems.
Manufacturer: General Electric
Type: Circuit Breaker / Switch Disconnector
Series: Switch-Disconnectors “ DILOS
Model: DILOS 4

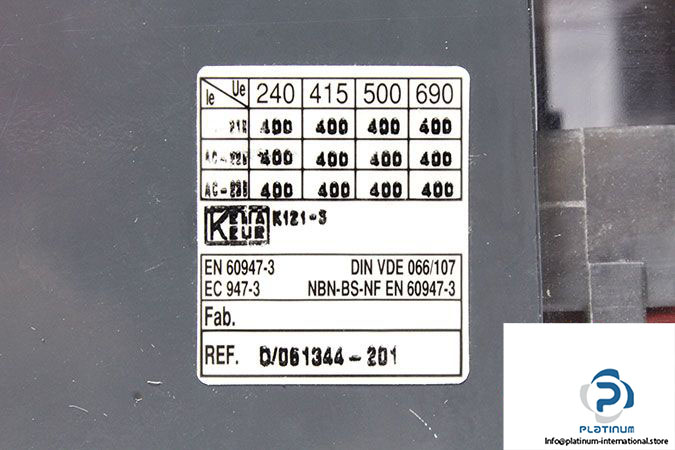

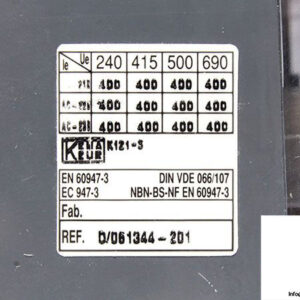

Cat. No.: D/061344-201
Ref. No.: 730474
Technical Information
- Number of Poles: 3
- Rated Current (In): 400 A
- Rated Operational Voltage (Ue): 690 V AC
- Rated Insulation Voltage (Ui): 1000 V AC
- Rated Operational Power: 218 kW (400 V) / 390 kW (690 V)
- Rated Capacity Power: 19 kVAR (400 V)
- Rated Impulse Voltage (Uimp): 8 kV
- Rated Making Capacity: 4000 A
- Rated Breaking Capacity: 3200 A
- Mounting: Panel Mounting
- Service Frequency: 50/60 Hz
- Dimensions (W × D × H): 260 × 116.5 × 253 mm
