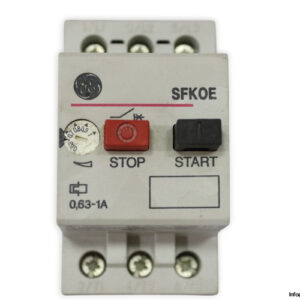

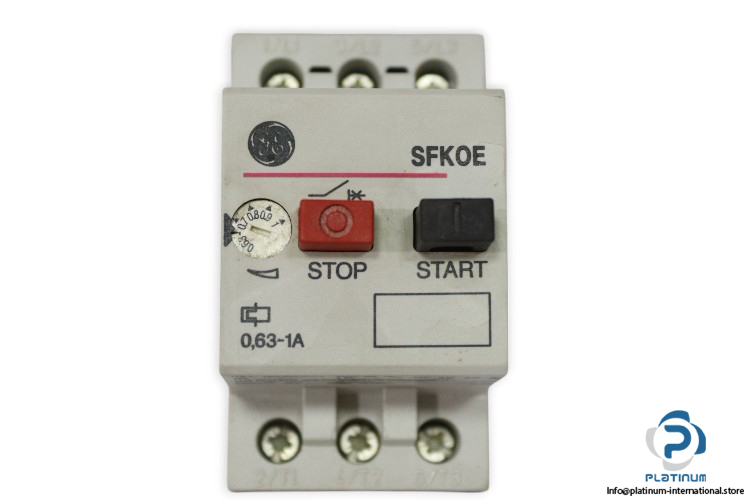

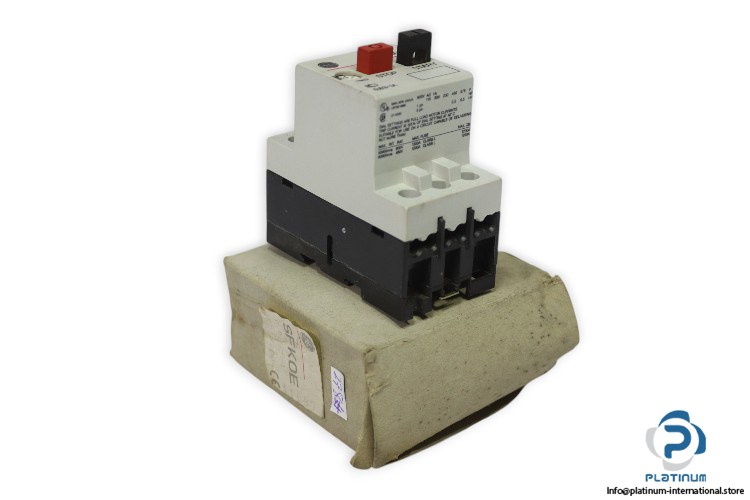

GENERAL ELECTRIC SFK0E CIRCUIT BREAKER

The General Electric SFK0E is a robust and precise circuit breaker engineered for motor protection and overload control in industrial electrical systems. With advanced magnetic tripping and high short-circuit capacity, it meets international standards for performance and safety.

Manufacturer: General Electric
Type: Circuit Breaker
Model: SFK0E

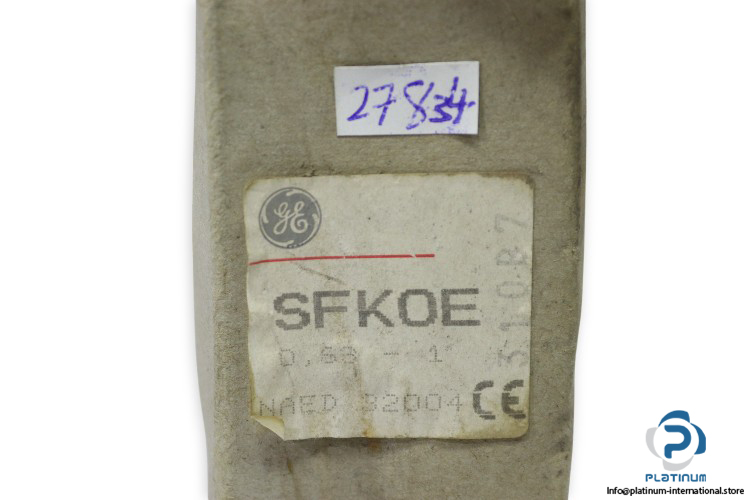

Code: NAED 32004 / 310B7

Technical Information

• Current Range: 0.63 to 1 A
• Magnetically Tripping Current: 12 A
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Rated Current Ie (AC-3): 25 A
• Motor Power: 0.25 kW @ 380/415 V (3-phase)
• Service Breaking Capacity Ics: 100%
• Trip Class: 10
• Trip Current: 125% of dial setting at 40 °C
• Frequency: 50 / 60 Hz
• Power: 0.5 HP

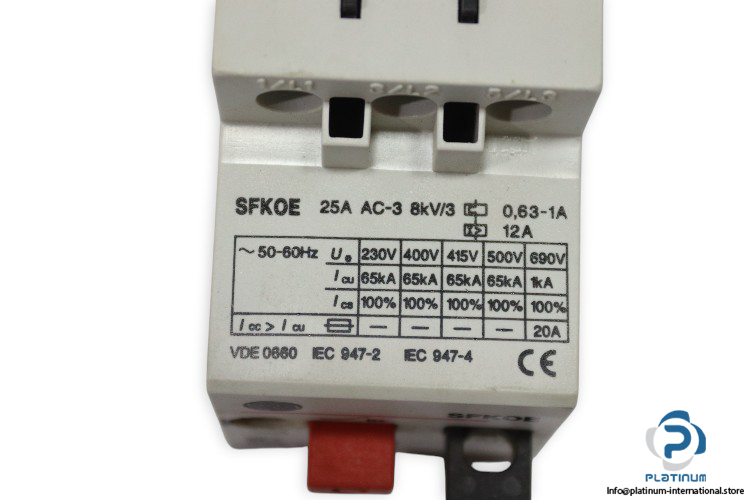

• Short-Circuit Capacity: 65 kA at 400 V

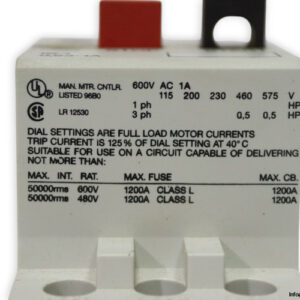

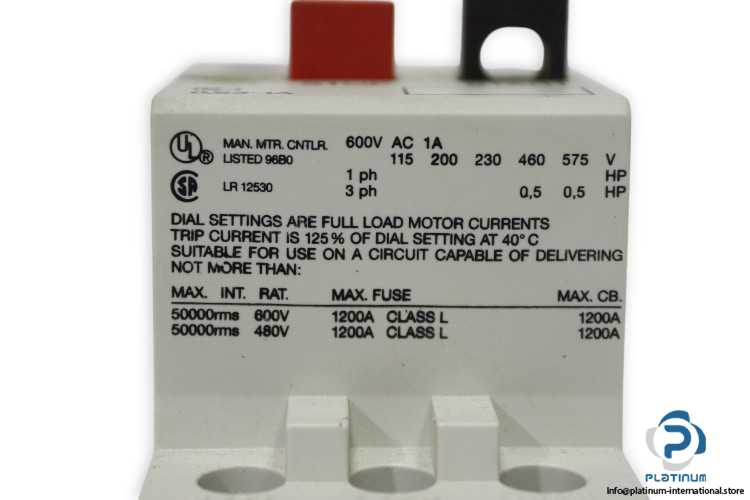

• Max Fuse: 1200 A Class L
• RMS Voltage: 50000 @ (600,480 V)
• Standard: IEC 947-2, IEC 947-4, VDE 0660
• Ambient Temperature: -5 to 40 °C
• Protection Degree: IP20
