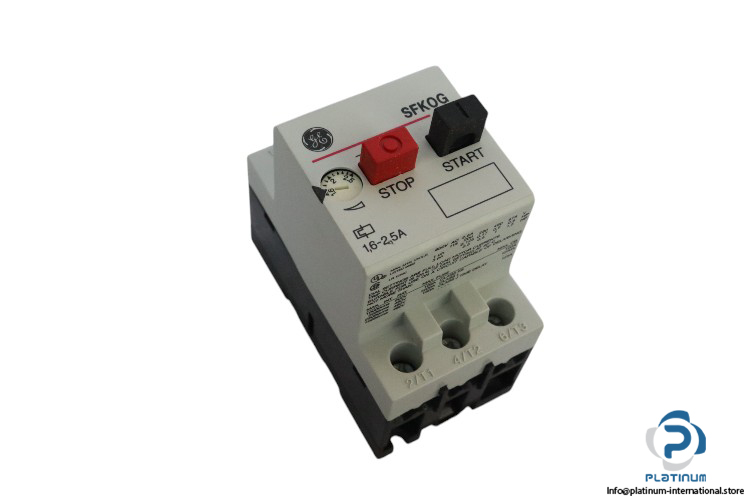

General Electric Motor Protection Circuit Breaker SFK0G
General Electric Motor Protection Circuit Breaker SFK0G is designed to offer reliable protection for motors in various industrial applications. With high-quality components and easy installation, this breaker ensures safety for electrical circuits and efficient motor performance in harsh environments. Below are the key technical specifications:
- Manufacturer: General Electric
- Type: Motor Protection Circuit Breaker
- Model: SFK0G

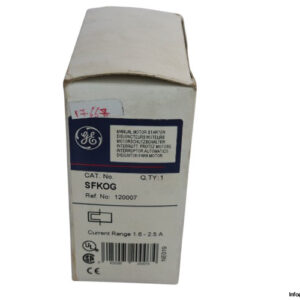

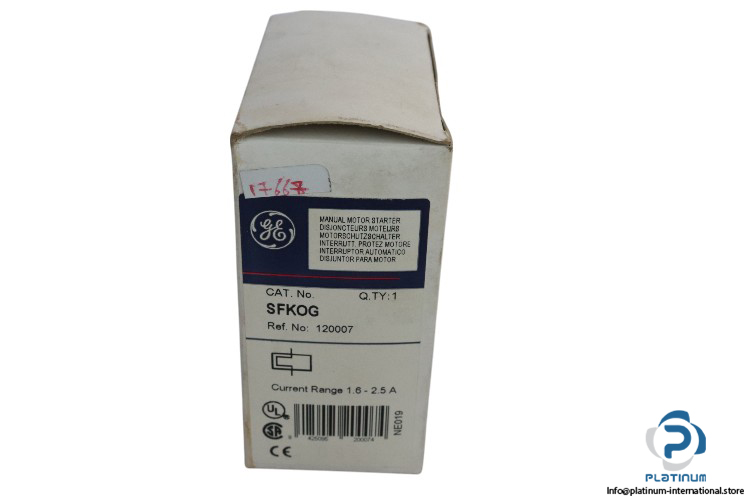

- Ref. No.: 120007
- Series: SFK

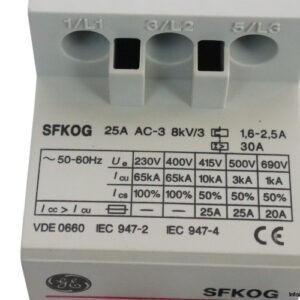

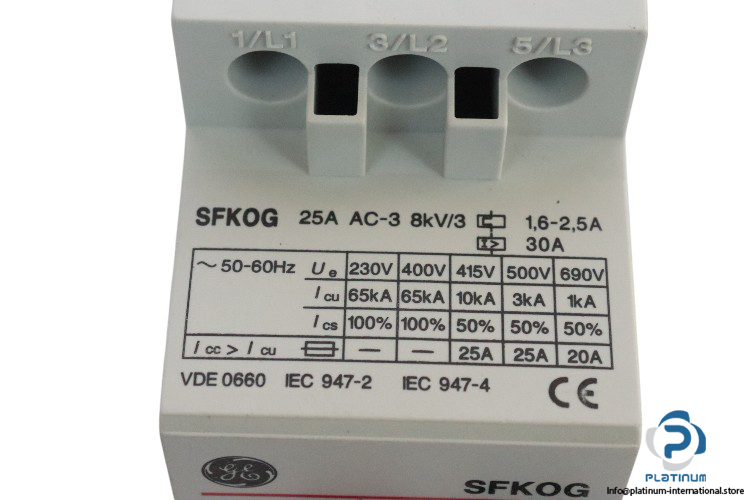

Technical Data:
- Current Range: 1.6 / 2.5 A
- Magnetically Tripping Current: 30 A
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Rated Current Ie (AC-3): 25 A
- Motor Power: 0.75 kW @ 380/415 V (3-phase)
- Braking Capacity Icu: 65 kA at 400 V

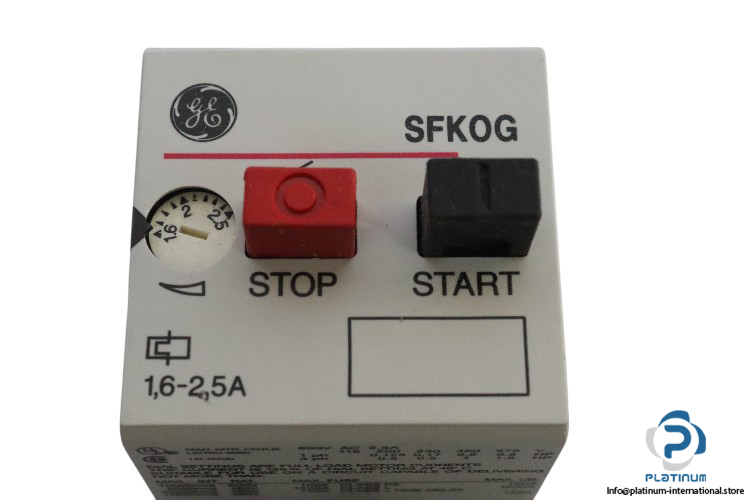

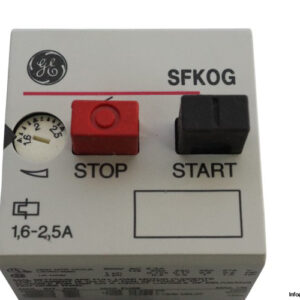

- Type of Control Element: Push Button
- Type of Electrical Connection: Screw Connection
- Standard: IEC 947-2, IEC 947-4, VDE 0660
- Ambient Temperature: -5 to 40°C
- Protection Degree: IP20
- Dimensions: 45 x 82 x 80 mm
