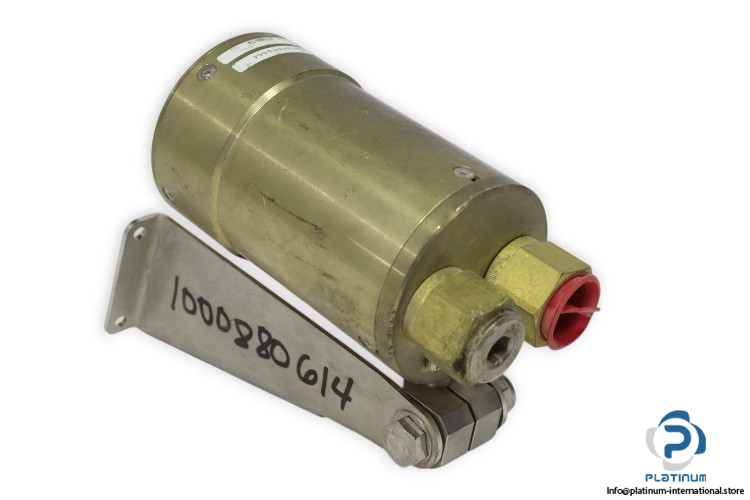

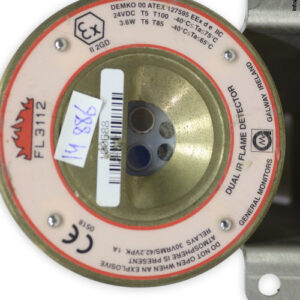

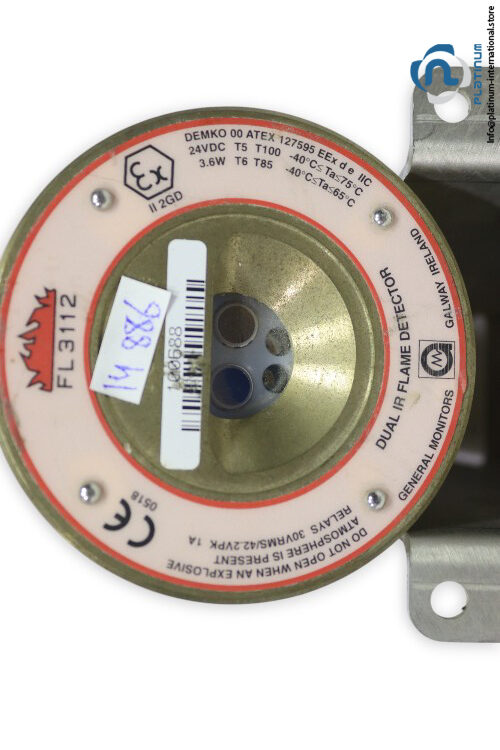

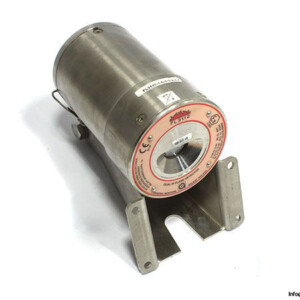

GENERAL MONITORS FL3112 FLAME DETECTOR
The FL3112 from General Monitors is a high-performance infrared flame detector engineered for hazardous industrial environments. Featuring a wide 120° field of view and ultra-fast response time under 2 seconds, this stainless steel unit ensures rapid and reliable flame detection with excellent spectral sensitivity centered at 4.35 microns.
Manufacturer: General Monitors
Type: Flame Detector

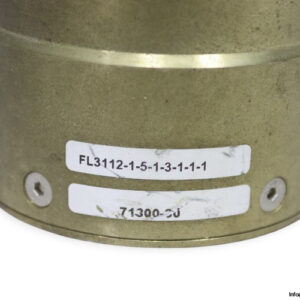

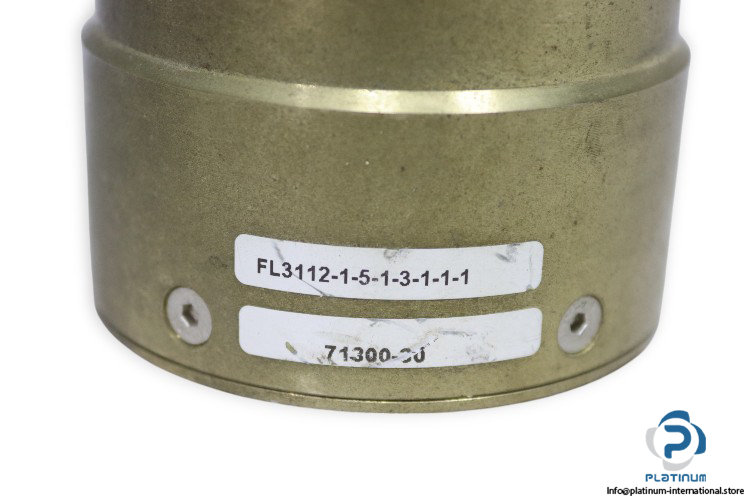

Model: FL3112-1-5-1-3-1-1-1
Technical Information
- Input Power: 20 to 36 VDC (24 VDC @ 150 mA max @ -40 to 75°C)
- Power: 3.6 W @ -40 to 65°C
- IR Centre Wavelength: 4.35 microns
- Field of View (H/V): 120°
- Response Time: < 2 seconds @ 50 ft
- Minimum Sensor Response Time: < 500 ms
- Relay Contact Rating: 1 A @ 30 VDC (resistive)
- Housing: Stainless Steel
- Diameter: 84 mm
- Length: 136 mm
- Cable Entries: M20, 2 Ports
