GEORGII KOBOLD KSY 164.40 E-R4/230/S64 BRUSHLESS SERVO MOTOR

BRUSHLESS SERVOMOTOR

Georgii Kobold KSY 164.40 E-R4/230/S64 is a stainless steel brushless servomotor from the E-Series, rated at 230 V and 4000 rpm, with 0.69 Nm torque and IP67 protection, ideal for precise industrial motion control.

SKU: 1029451 Category: Tags: , , , , , , , , , , , , , , , , ,
In stock: 6 pcs
Low stock
Only 6 items remaining.
Add to quote

GEORGII KOBOLD KSY 164.40 E-R4/230/S64 BRUSHLESS SERVOMOTOR

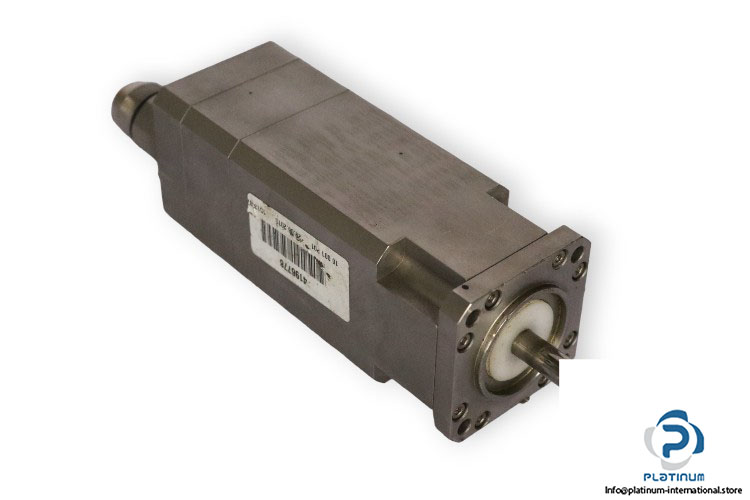

The Georgii Kobold KSY 164.40 E-R4/230/S64 is a high-performance brushless servomotor from the E-Series, crafted in stainless steel for enhanced durability and hygienic applications. Ideal for automation systems, it delivers stable motion control with high protection and precise feedback.

Manufacturer: Georgii Kobold
Type: Brushless Servomotor

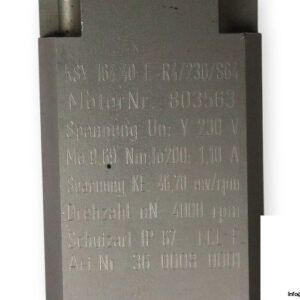

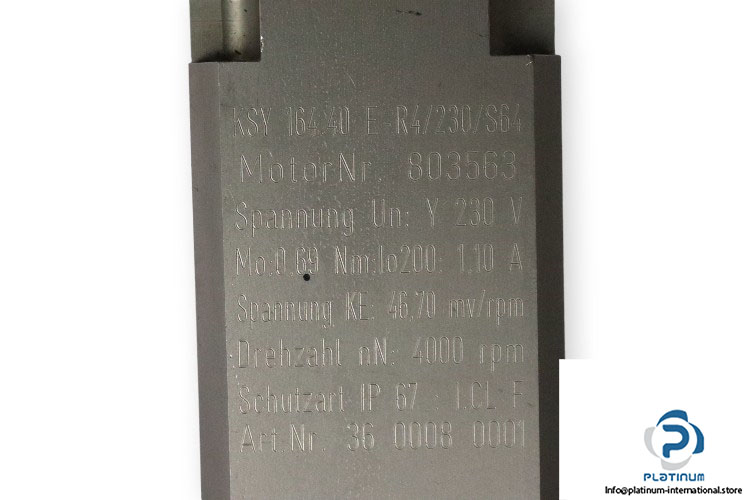

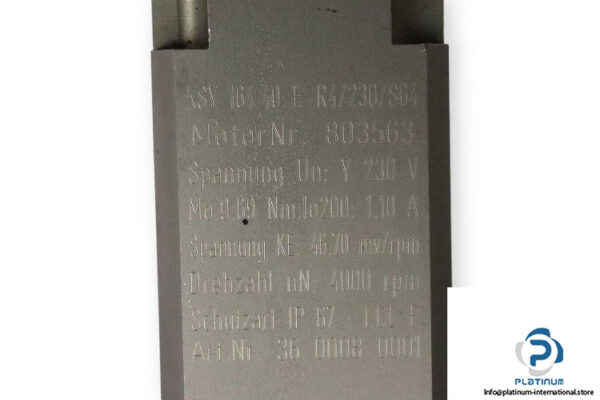

Model: KSY 164.40 E-R4/230/S64
Motor Nr: 803563
Art Nr: 36 0008 0001

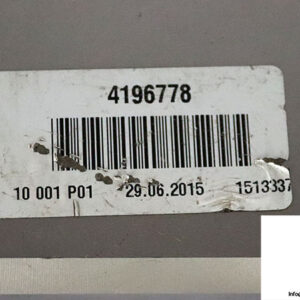

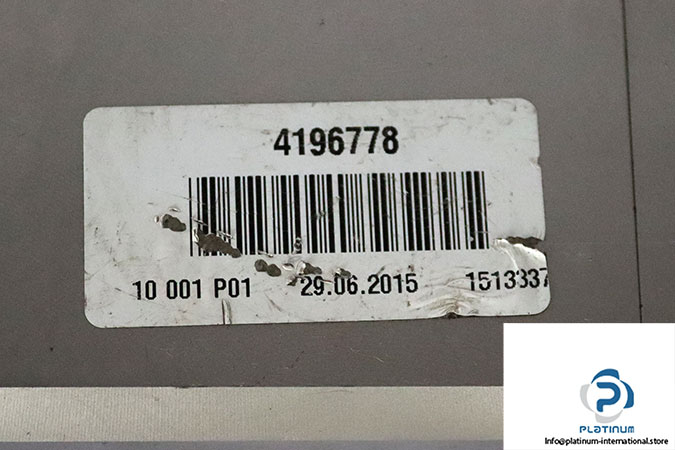

Ref No: 4196778 / 10 001 P01 / 1513337

Technical Information

  • Frame Size: 1
  • Number of Poles: 6
  • Series: E-Series, Stainless Steel Execution
  • Rated Voltage: 230 V Star
  • Rated Speed: 4000 rpm
  • Stall Current: 1.10 A
  • Stall Torque: 0.69 Nm
  • Constant Voltage: 46.7 mV/rpm
  • Insulation Class: F
  • Protection Class: IP 67
  • Encoder: Resolver
Weight2,75 kg
