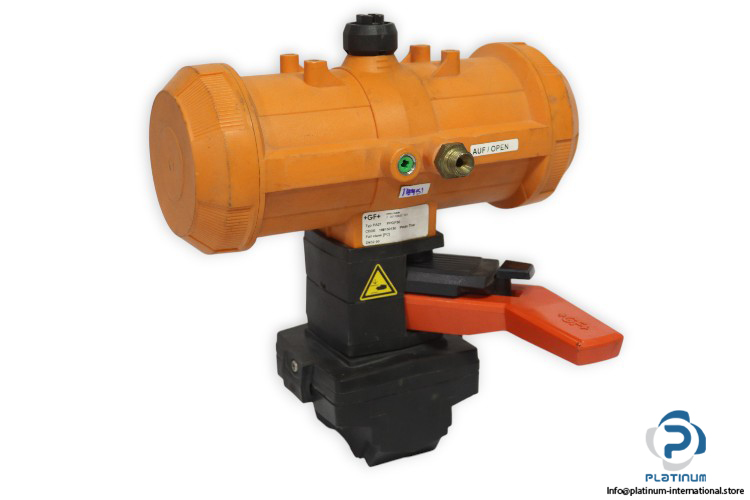

GF BALL VALVE 231 WITH PNEUMATIC ACTUATOR PA21

This GF ball valve assembly integrates a high-performance pneumatic actuator, offering precise flow control and automatic shut-off in demanding fluid handling systems. Designed for industrial applications, it features reliable fail-close operation, durable construction, and compatibility with DN32 and DN50 connections.

Manufacturer: GF
Type: Ball Valve (231)
Model: 199 231 248/ d63DN50
REPNR: 11-03035 BRR
Serie: 9111109 0001 / 2 20110901 19

Technical Information

• Nominal Pressure: 10 bar
• Size: DN 50
• Material: PP-H / EPDM
• Max Pressure: 7 bar
• Design: Fail Close [FC]
• IP Rate: IP65
• Attachment: GF 198150130 Pneumatic Actuator

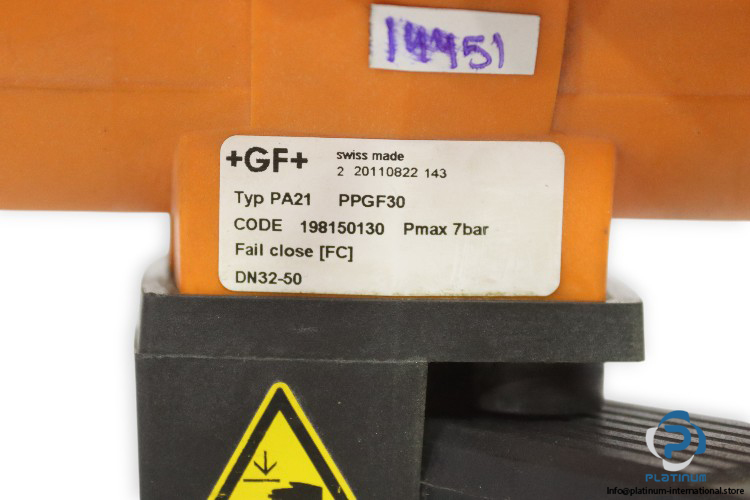

Manufacturer: +GF+
Type: Pneumatic Actuator
Model: PA21
Part No.: 198150130
Serie: 2 20110822 143

Actuator Specifications

• Size: 1 1ˆ•4 to 2
• Function: Fail Close
• Max Pressure: 7 bar
• Connection: DN32, DN50
• Material: PPGF30
