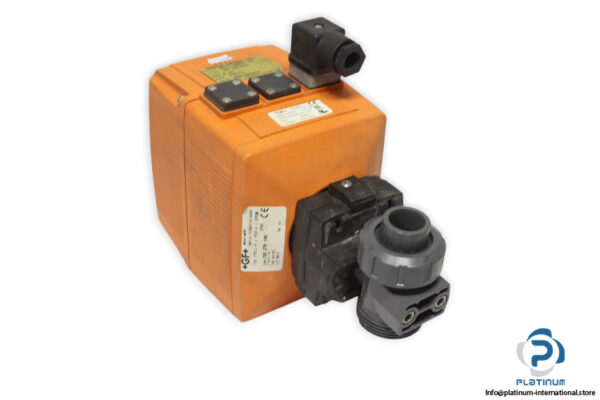

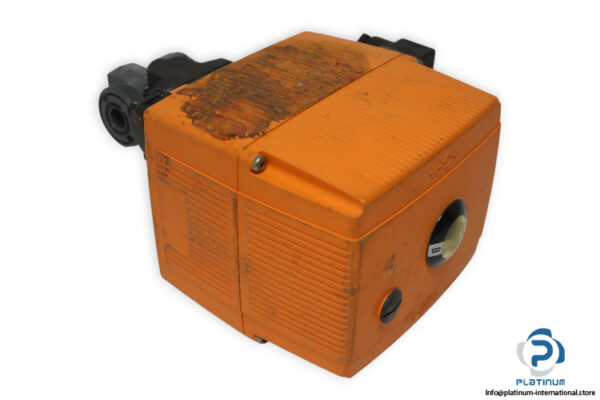

+GF+ 24VZ20 BALL VALVE WITH EA21 ACTUATOR & 175 L-H ELECTRIC VALVE
Engineered by +GF+ (George Fischer), this high-performance ball valve system is designed for demanding industrial flow control. It includes a precision pneumatic actuator and a durable electric valve for automated operation.

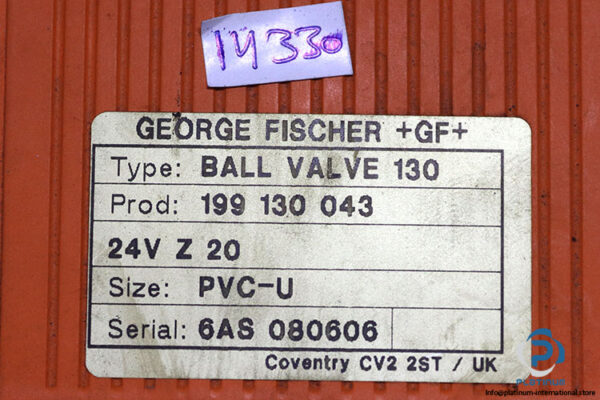

Manufacturer: +GF+ (George Fischer)
Type: Ball Valve
Model: 24VZ20
Part No.: 199 130 043
Serial No.: 6AS 080606

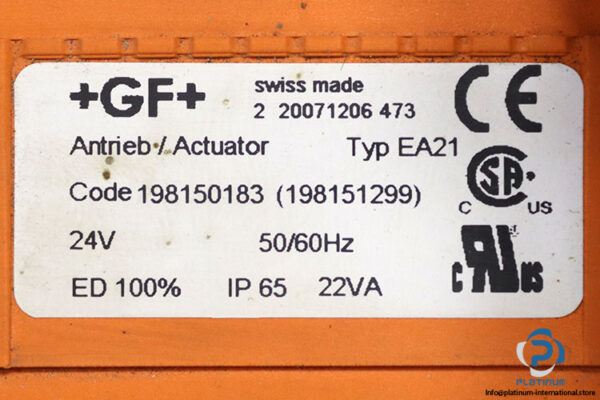

Attachment 1: Pneumatic Actuator
- Manufacturer: +GF+
- Type: Pneumatic Actuator
- Model: EA21
- Part No.: 198150183 (1981501299)
- Power Rating: 22 VA
- Voltage: 24 V AC, 50/60 Hz
- Protection Degree: IP65
- Operation: ED 100 percent

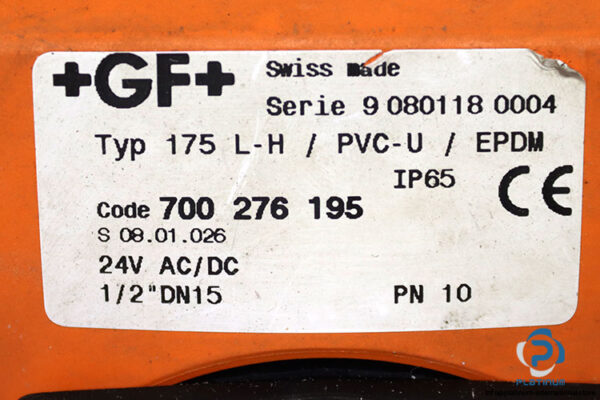

Attachment 2: Electric Valve
- Manufacturer: +GF+
- Type: Electric Valve
- Model: 175 L-H/PVC-U/EPDM
- Order Code: 700 276 195
- Series: 9 080118 0004 / 08.01.026
- Voltage: 24 V AC/DC
- Connection Size: G1/2, DN15
- Material: PVC-U
- Seals: EPDM
- Protection Degree: IP65
