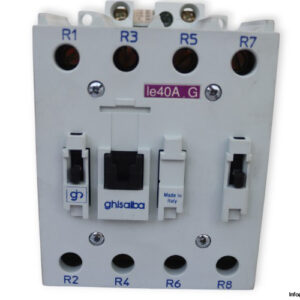

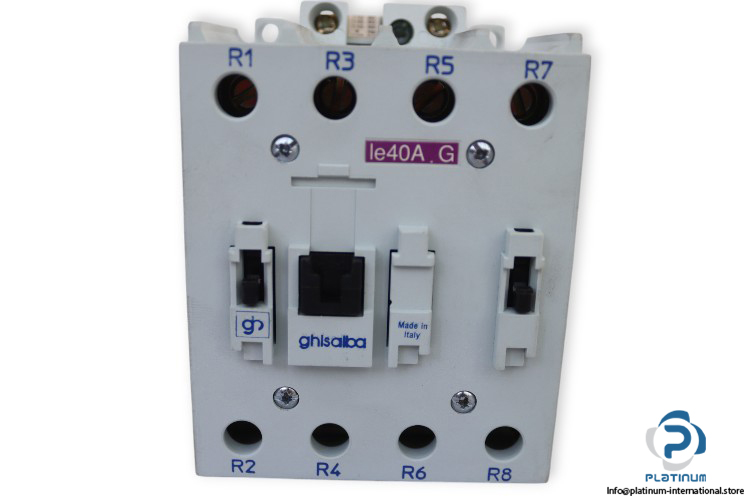

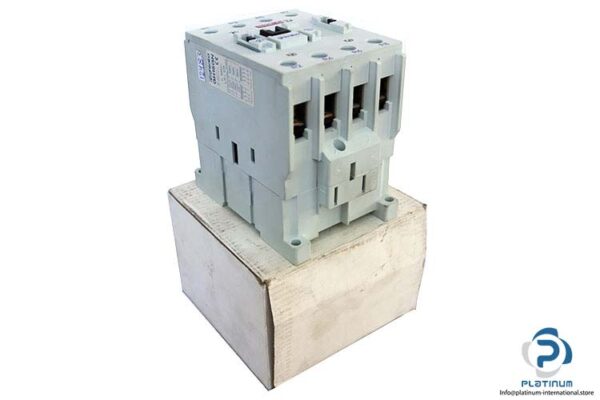

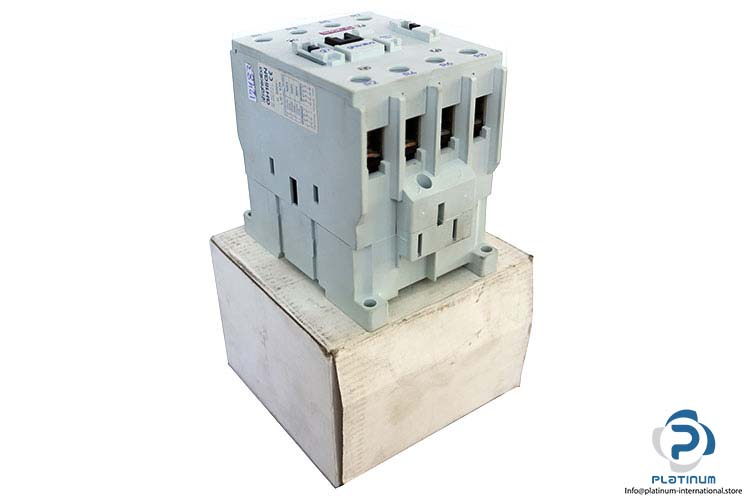

GHISALBA GH15GN0400 Contactor

The GHISALBA GH15GN0400 is a robust industrial contactor engineered for reliable switching and control of electrical loads. Designed for high thermal and operational currents, it complies with international standards, offering durability and consistent performance for 3-phase applications.

Manufacturer: GHISALBA
Type: Contactor
Model: GH15GN0400
Part No.: 8409427

Technical information

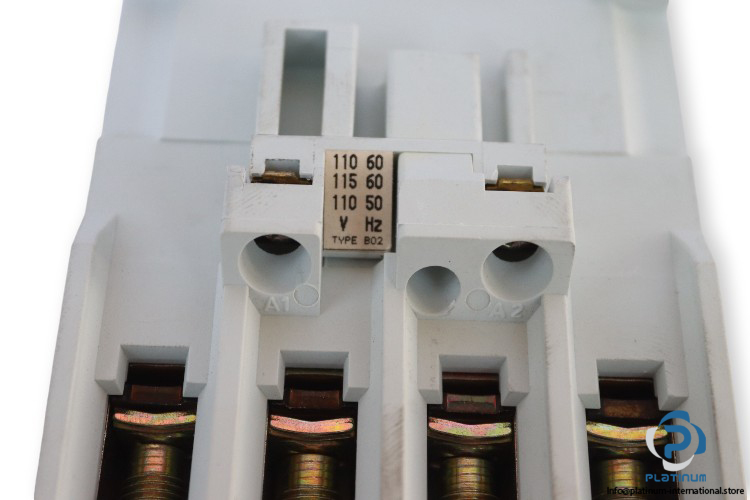

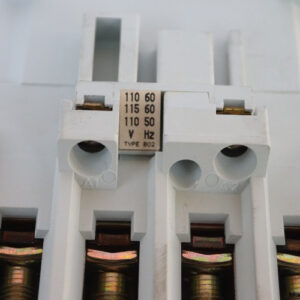

• Control Supply Voltage: 110 V, 50/60 Hz “ 115 V, 60 Hz
• Max Operating Power for 3-Phase Loads: 43 kW @ 400 V
• Thermal Current (Ith): 63 A
• Rated Current AC-1 (Ie): 63 A
• Rated Current AC-3 (Ie): 40 A
• Rated Insulation Voltage (Ui): 500 V AC
• Rated Impulse Withstand (Uimp): 6 kV
• Breaking Capacity: 100 A @ 500 V

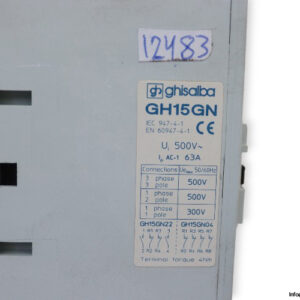

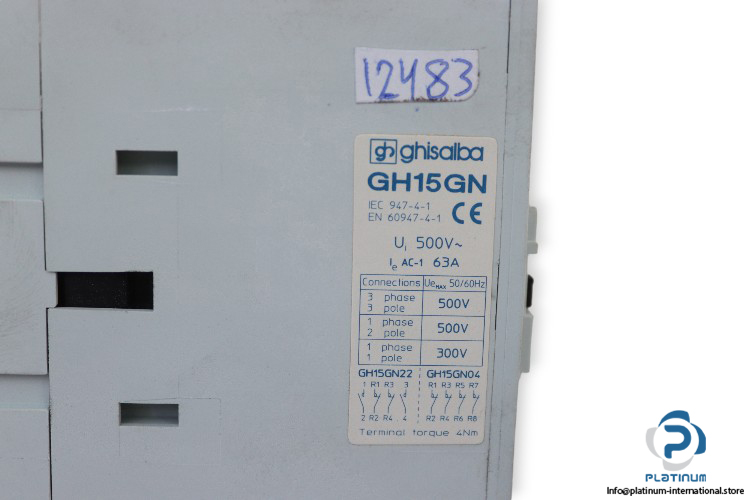

• Standard: IEC 947-4-1, EN 60947-4-1
• Contact: 4 Normally Closed
• Nominal Torque: 4 Nm
• No. of Poles: 4
• Fixing: Screws fixing or rail mounting (DIN 35 mm)
• Protection Degree: IP20
