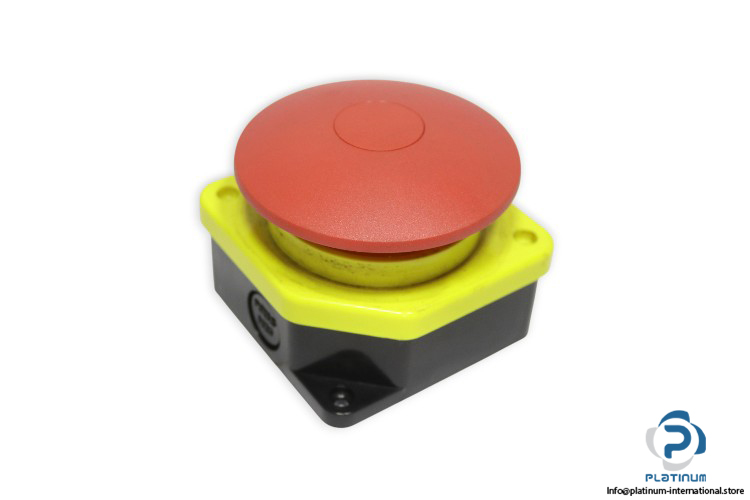

Giovenzana PG1M9W01 Emergency Stop Pushbutton
The Giovenzana PG1M9W01 Emergency Stop Pushbutton is a robust and highly visible safety control device designed for machinery shutdown and operator protection. Its large mushroom head design and enclosed control station ensure reliable emergency activation in industrial environments.
Manufacturer: Giovenzana
Type: Emergency Stop Pushbutton

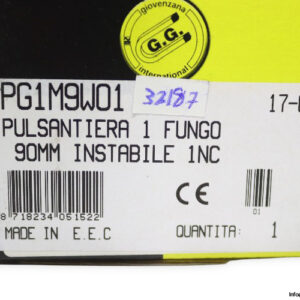

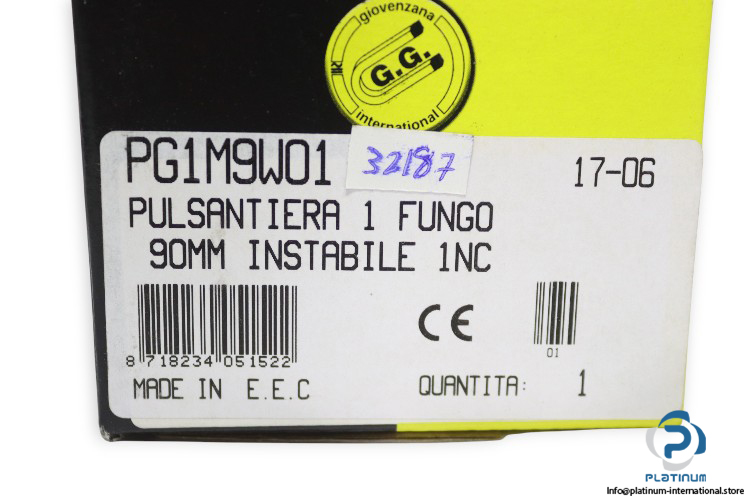

Model: PG1M9W01
Brand Code: G.G.
Code: 17-06
Serial Number: 8718234051522
Technical Information
- Button Style: Mushroom head
- Head Diameter: 90 millimeters
- Contact Type: 1 NC normally closed
- Operation Mode: Instabile momentary return not latching
- Mounting: Enclosed control station
- Application: Machinery emergency stop and safety control
- Cable Entry: Three holes Pg 13.5 or M20
- Temperature Operating: minus 25 to plus 70 degree Celsius
- Climate Protection: IEC 68 2-3 and 2-30
- Terminal Referencing: EN 50013
- Material Push Button: PA6
- Cover Material: ABS
- Base Material: ABS
- Push Button Color: Red RAL 3000
- Cover Color: Yellow PANTONE 129C
- Base Color: Black RAL 9005
- Contact Block: One NC spring contact
- Rated Insulation Voltage Ui: 690 volts
- Rated Impulse Withstand Voltage Uimp: 4 kilovolts
- Frequency: 50 to 60 hertz
- Rated Thermal Current Ith: 16 amperes
- Rated Operating Current Ithe: 10 amperes
