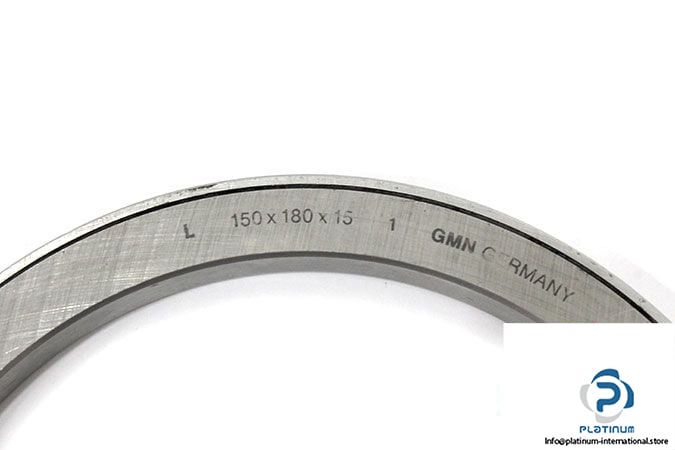

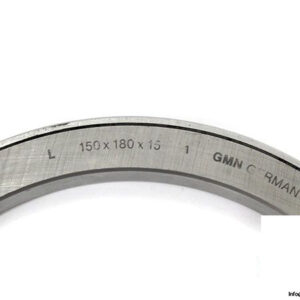

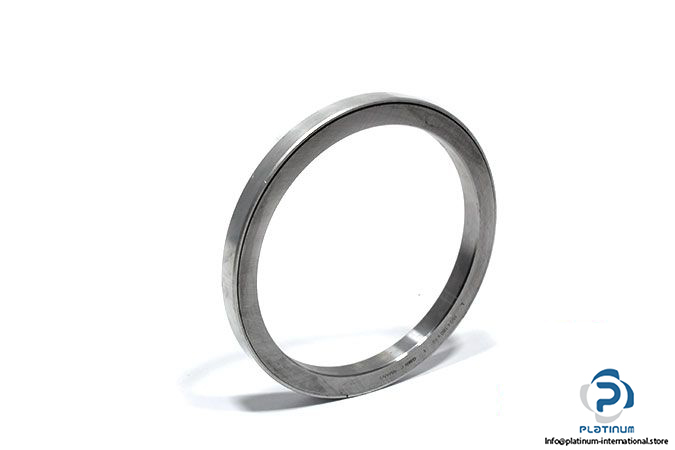

GMN L 150x180x15 Labyrinth Metal Seal
The GMN L 150x180x15 Labyrinth Metal Seal is a high-performance sealing solution designed for industrial applications requiring efficient protection against contamination and leakage. With a durable aluminum outer ring and non-alloy steel inner ring, this seal ensures long-lasting reliability in extreme temperature conditions.
- Manufacturer: GMN
- Type: Labyrinth Metal Seal
- Model: L 150x180x15
Technical Information
- Outer Ring Material: Aluminum (GD AlSi 12)
- Inner Ring Material: Non-Alloy Steel
- Shaft Diameter: 150 mm
- Width: 15 mm
- Sealing Gap: Horizontal
- Radial Clearance: Srad = Sax /tan (42.5°)
- Temperature Range: -40 to 200°C
