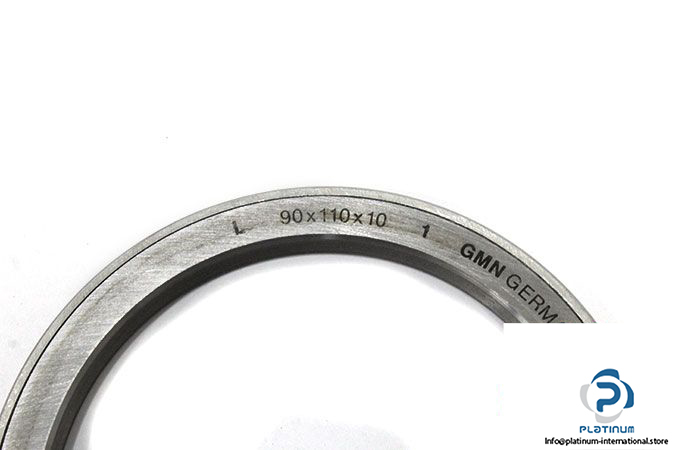

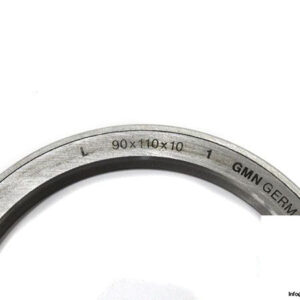

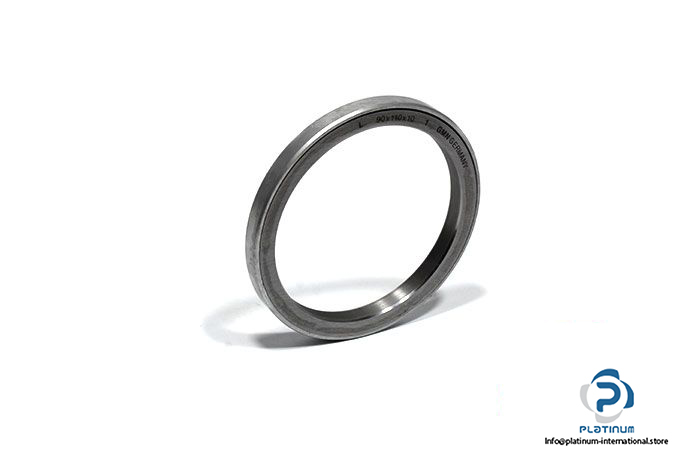

GMN L 90X110X10 Labyrinth Metal Seal
The GMN L 90X110X10 Labyrinth Metal Seal is a high-precision sealing solution designed for demanding industrial applications. With a durable aluminum outer ring and non-alloy steel inner ring, this seal ensures reliable performance in harsh environments, offering excellent protection against contamination and wear.
- Manufacturer: GMN
- Type: Labyrinth Metal Seal
- Model: L 90X110X10
Technical Information
- Outer Ring Material: Aluminum (GD AlSi 12)
- Inner Ring Material: Non-Alloy Steel
- Shaft Diameter: 90 mm
- Width: 10 mm
- Sealing Gap: Horizontal
- Radial Clearance: Srad = Sax /tan (42.5°)
- Operating Temperature Range: -40 to 200°C
