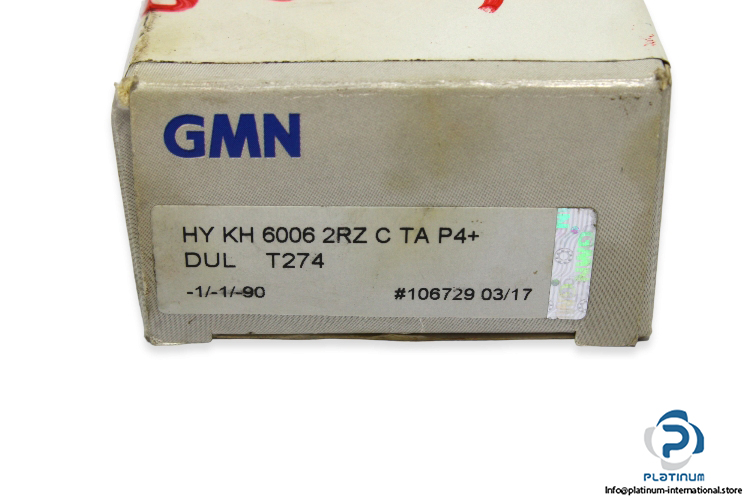

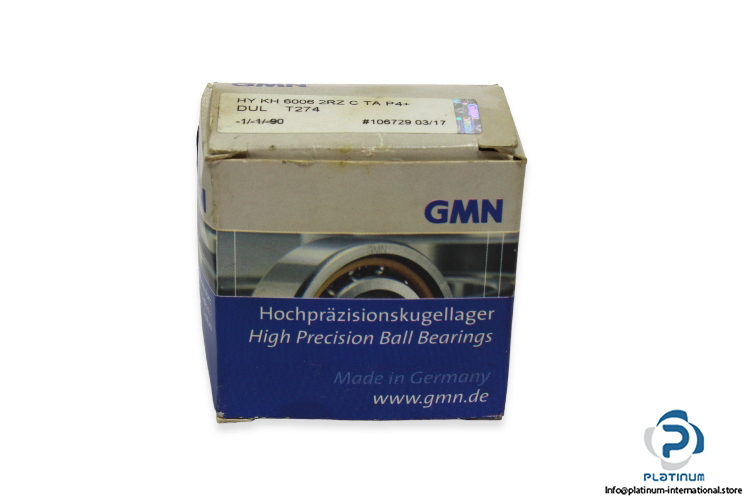

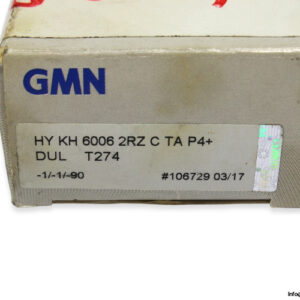

GMN HY KH 6006 2RZ C TA P4+ DUL T274 Angular Contact Ball Bearing
The GMN HY KH 6006 2RZ C TA P4+ DUL T274 Angular Contact Ball Bearing is a high-precision spindle bearing engineered for superior speed and performance in demanding applications. With ceramic ball construction, a phenolic resin cage, and high-speed lubrication capabilities, this bearing ensures optimal efficiency and durability.
- Manufacturer: GMN
- Type: Angular Contact Ball Bearing
- Model: HY KH 6006 2RZ C TA P4+ DUL T274
- Series: KH, Standard Spindle Bearings for Higher Speeds
Technical Information
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 55 mm
- Width: 13 mm
- Contact Angle (C): 17°
- Dynamic Load Rating: 8,200 N
- Static Load Rating: 3,350 N
- Speed Limit (Grease): 46,250 RPM
- Speed Limit (Oil): 62,500 RPM
- Preload: UL, 40 N
- Axial Rigidity: 35 N/µm
- Minimum Spring Pre-Load: 295 N
- Tolerance Class: P4+, ABEC 7
- Ball Material (HY): Ceramic Si3N4
- Sealing: Special Dimensions Seals on Both Sides (for KH Series)
- Cage Material: TA, Laminated Phenolic Resin Cage Guided on Outer Ring
- Suffix T274: Tribology Code
