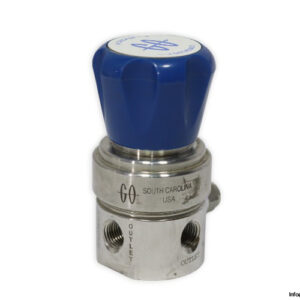

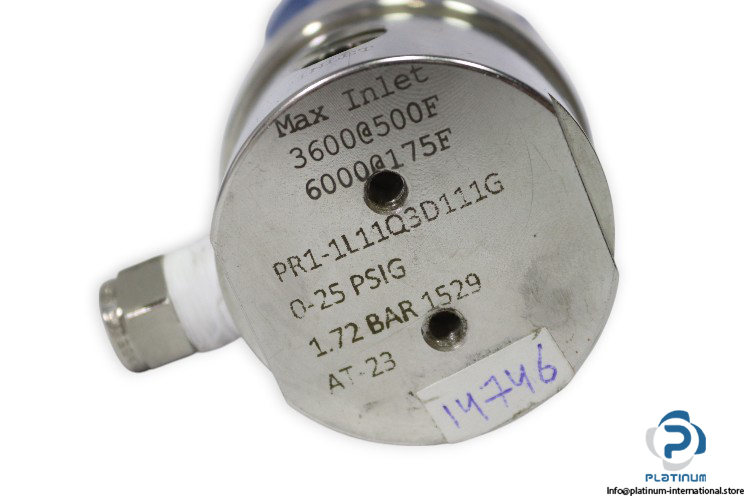

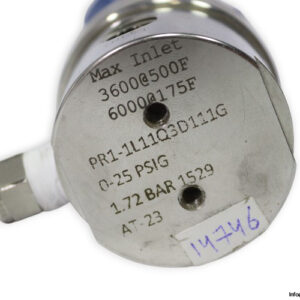

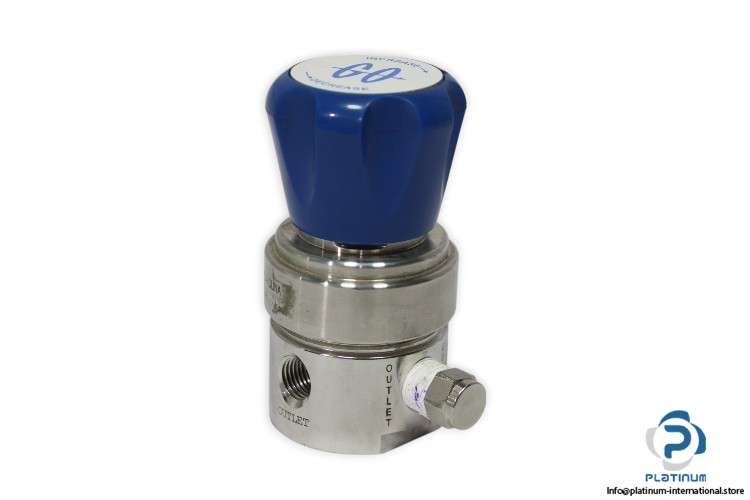

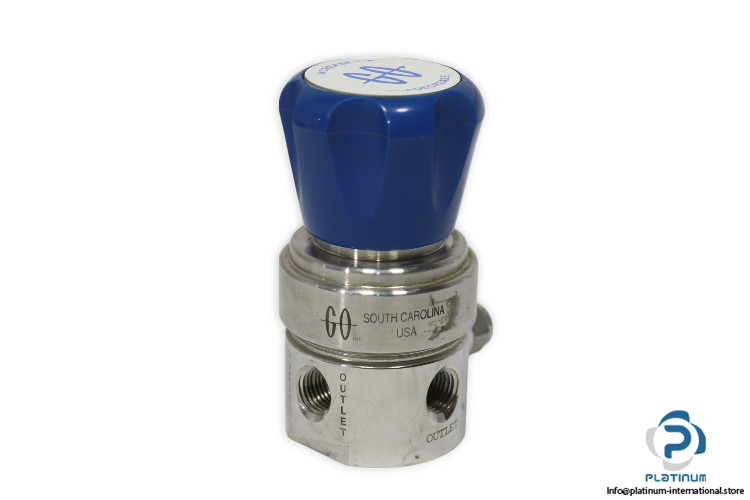

GO PR11L11Q3D111G STAINLESS STEEL REGULATOR

High-precision stainless steel pressure regulator engineered for stability, reliability, and performance in demanding fluid and gas control systems. Ideal for low outlet pressure applications with high inlet pressure conditions. Built for long service life and excellent chemical resistance.

• Manufacturer: GO
• Type: Regulator
• Model: PR11L11Q3D111G
• Ref. Code: AT-23
• Ref. No.: 1529
• Series: PR1-1

Technical Information

• Maximum Operating Inlet Pressure: 3600 psig (24.82 MPa) at 500°F (260°C), 6000 psig (41.37 MPa) at 175°F (80°C)
• Pneumatic Connection: G1/4
• Operating Pressure: Max. 1.72 bar
• Outlet Range: 0 to 25 PSIG
• Body Material: Stainless Steel
• Seat Material: PEEK„¢ (Low Temp Service), Plastic Knob
• Diaphragm Facing/Backing Material: 1 PTFE / Metal Backing (Standard)
• Cap Assembly: Standard, Stainless Steel
• Flow Coefficient (Cv): 3 “ 0.06 (Standard)
