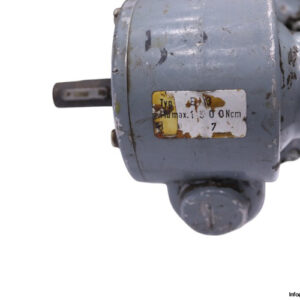

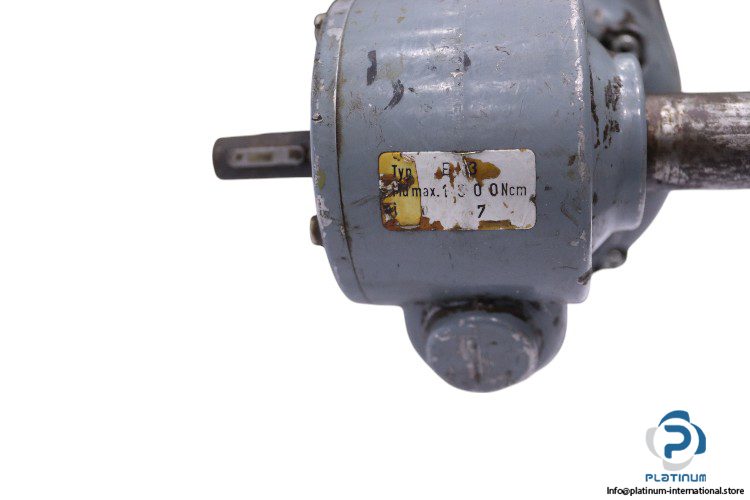

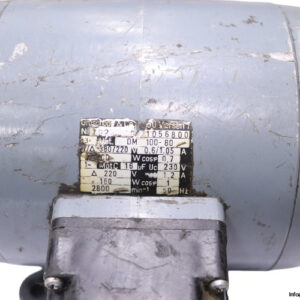

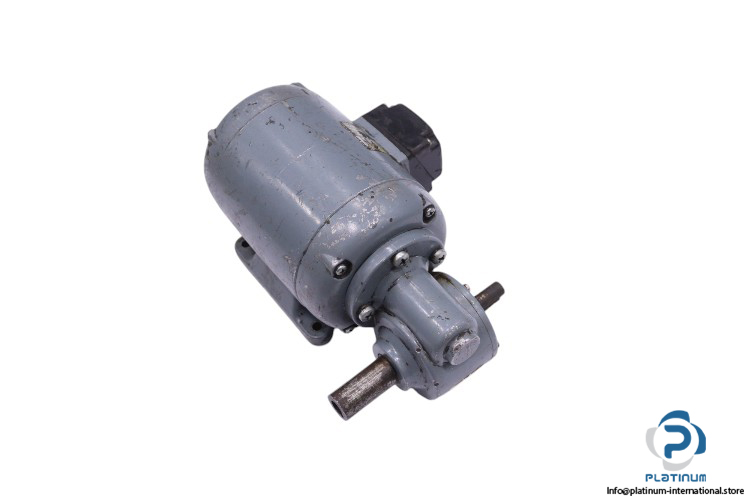

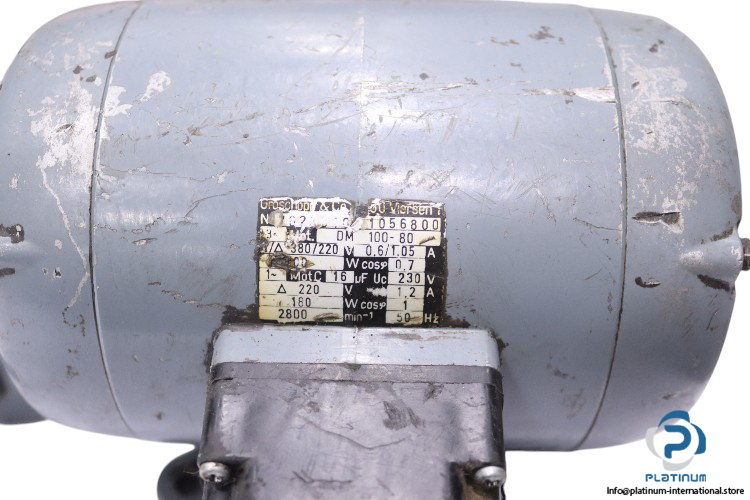

GROSCHOPP DM 100-80 Gear Motor
The GROSCHOPP DM 100-80 Gear Motor is a high-performance motor engineered for industrial applications requiring efficiency and durability. Designed for both single-phase and three-phase operation, it delivers reliable performance with a rated speed of 2800 rpm. Equipped with the E 3 gearbox and a gear ratio of 7, this motor ensures optimal torque output, making it suitable for demanding mechanical systems.
- Manufacturer: GROSCHOPP
- Type: Gear Motor
- Model: DM 100-80
Technical Specifications
Three-Phase Operation
- Rated Voltage: 380 / 220 V
- Rated Current: 0.6 / 1.05 A
- Power Factor: 0.7
Single-Phase Operation
- Rated Voltage: 230 V / 220 V Delta
- Rated Power: 180 W
- Rated Current: 1.2 A
- Rated Speed: 2800 rpm
- Capacity: 16 microfarad
- Power Factor: 1
- Frequency: 50 Hz
Gearbox Specifications
- Attached With: E 3 Gearbox
- Ratio: 7
- Max Torque: 1300 NCM
