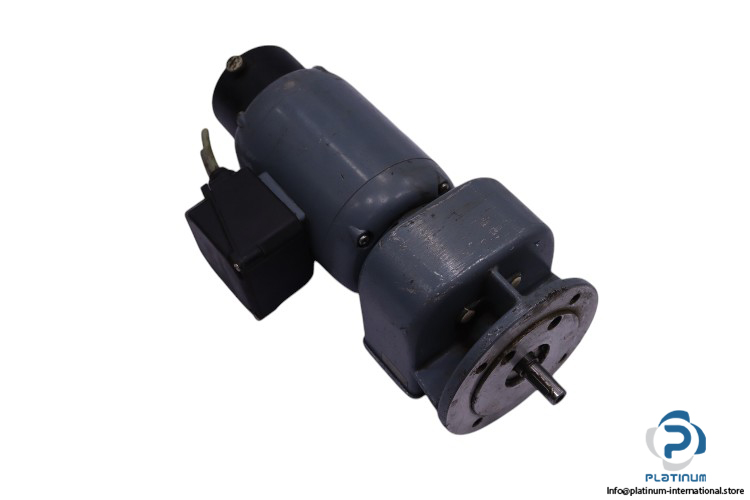

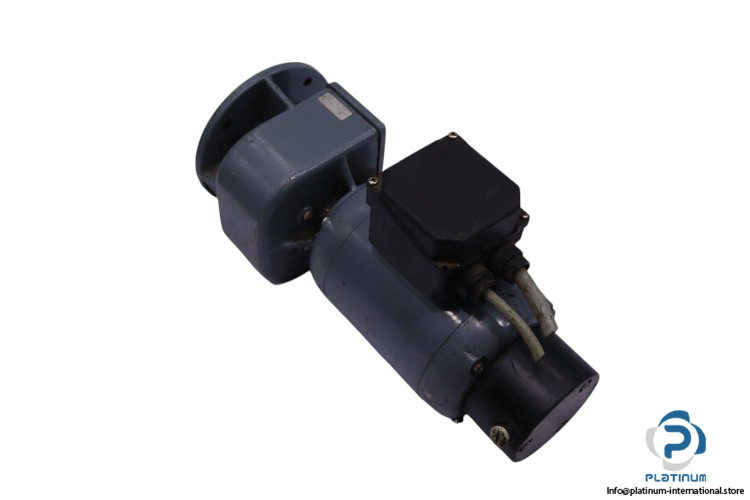

GROSCHOPP DM 100-80 Gear Motor
The GROSCHOPP DM 100-80 Gear Motor is a robust and efficient motor designed for industrial applications requiring high torque and reliability. Operating at a rated voltage of 400/230V with a frequency of 50Hz, this motor ensures stable and efficient performance. Attached with the SG 300 gearbox, it delivers a torque of 3000 Ncm with a ratio of 40, making it ideal for demanding motion control systems.
- Manufacturer: GROSCHOPP
- Type: Gear Motor
- Model: DM 100-80

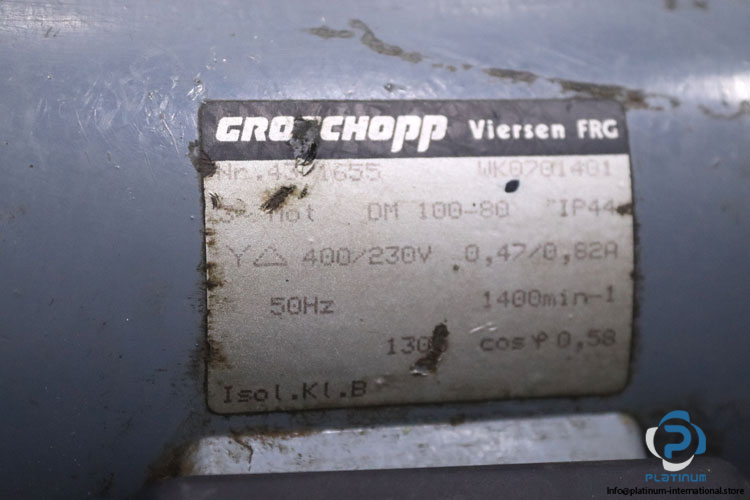

Technical Specifications
- Rated Voltage: 400 / 230 V
- Rated Frequency: 50 Hz
- Rated Speed: 1400 rpm
- Rated Current: 0.47 / 0.82 A
- Isolation Class: B
- cos phi: 0.58
- Protection Class: IP44

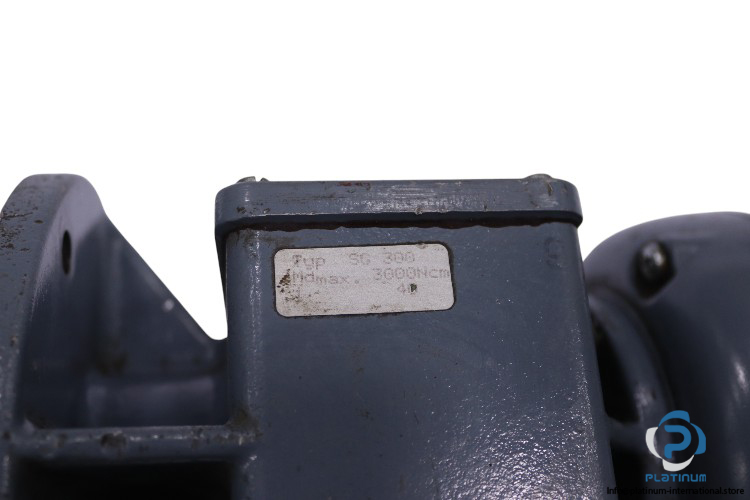

- Attached with: SG 300 Gearbox
- Ratio: 40
- Torque: 3000 Ncm
