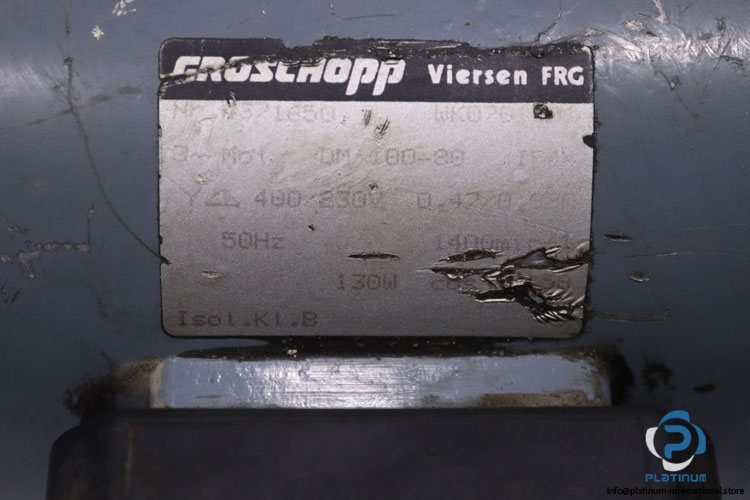

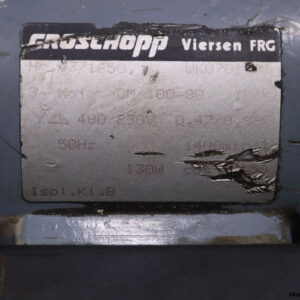

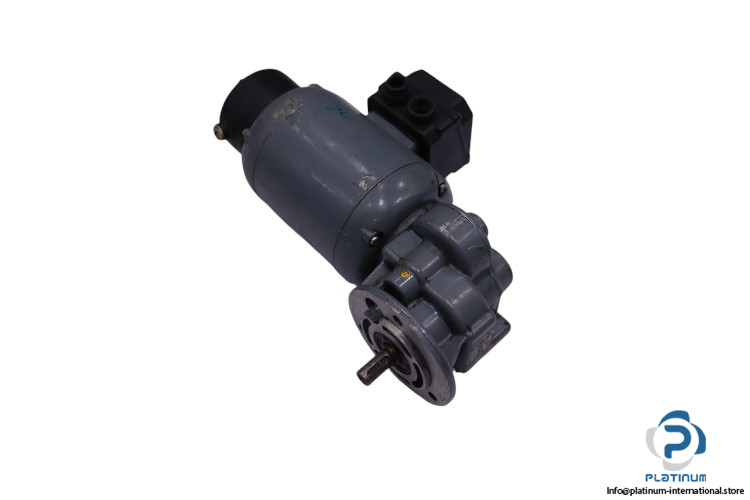

GROSCHOPP DM 100-80 Gear Motor
The GROSCHOPP DM 100-80 Gear Motor is a compact and efficient motor designed for industrial applications requiring high torque and precision. Operating at 400/230V with a rated power of 130W, it ensures reliable performance and durability. This motor is attached with a Z 80 Gearbox featuring a ratio of 41 and a torque of 2500 Ncm, making it ideal for applications demanding controlled speed and high efficiency.
- Manufacturer: GROSCHOPP
- Type: Gear Motor
- Model: DM 100-80
Technical Specifications
- Rated Voltage: 400 / 230 V
- Rated Frequency: 50 Hz
- Rated Speed: 1400 rpm
- Rated Current: 0.47 / 0.68 A
- Insulation Class: B
- Rated Power: 130 W
Gearbox Specifications

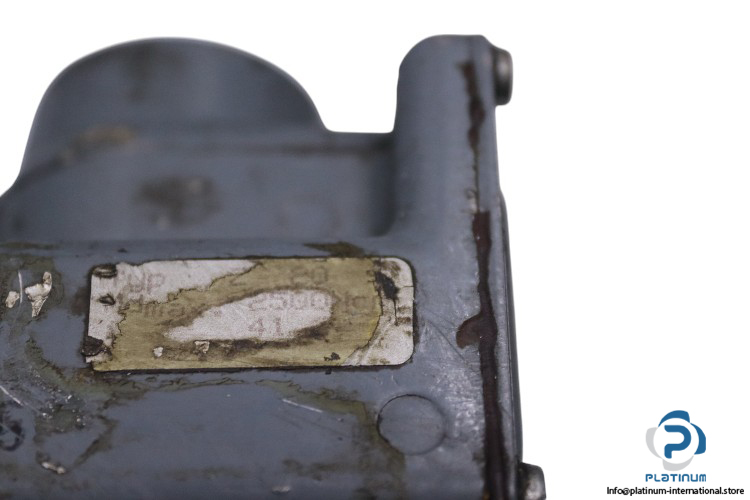

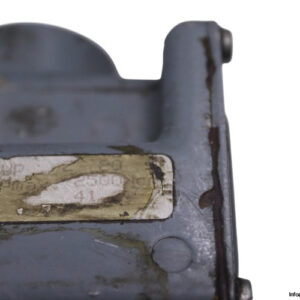

- Attached With: Z 80 Gearbox
- Ratio: 41
- Torque: 2500 Ncm
